APR - 980cc MPI Injector Kit

APR - 980cc MPI Injector Kit

SKU: MS100195
$170.00
$170.00
Sale Sold out
Shipping calculated at checkout.

APR logo

Fits Audi RS3 17-24, TT RS Quattro 18-22

Overview

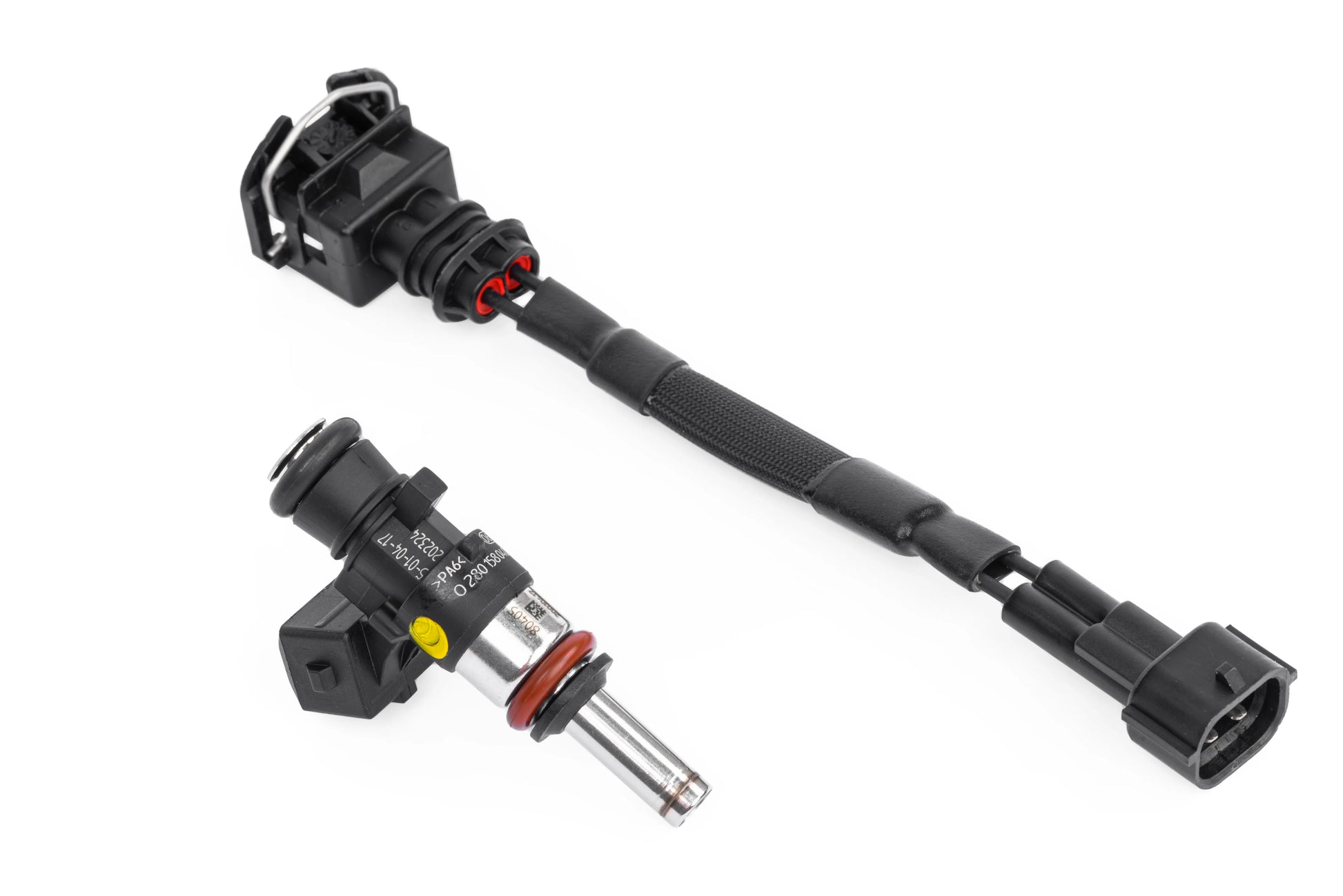

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

Features:

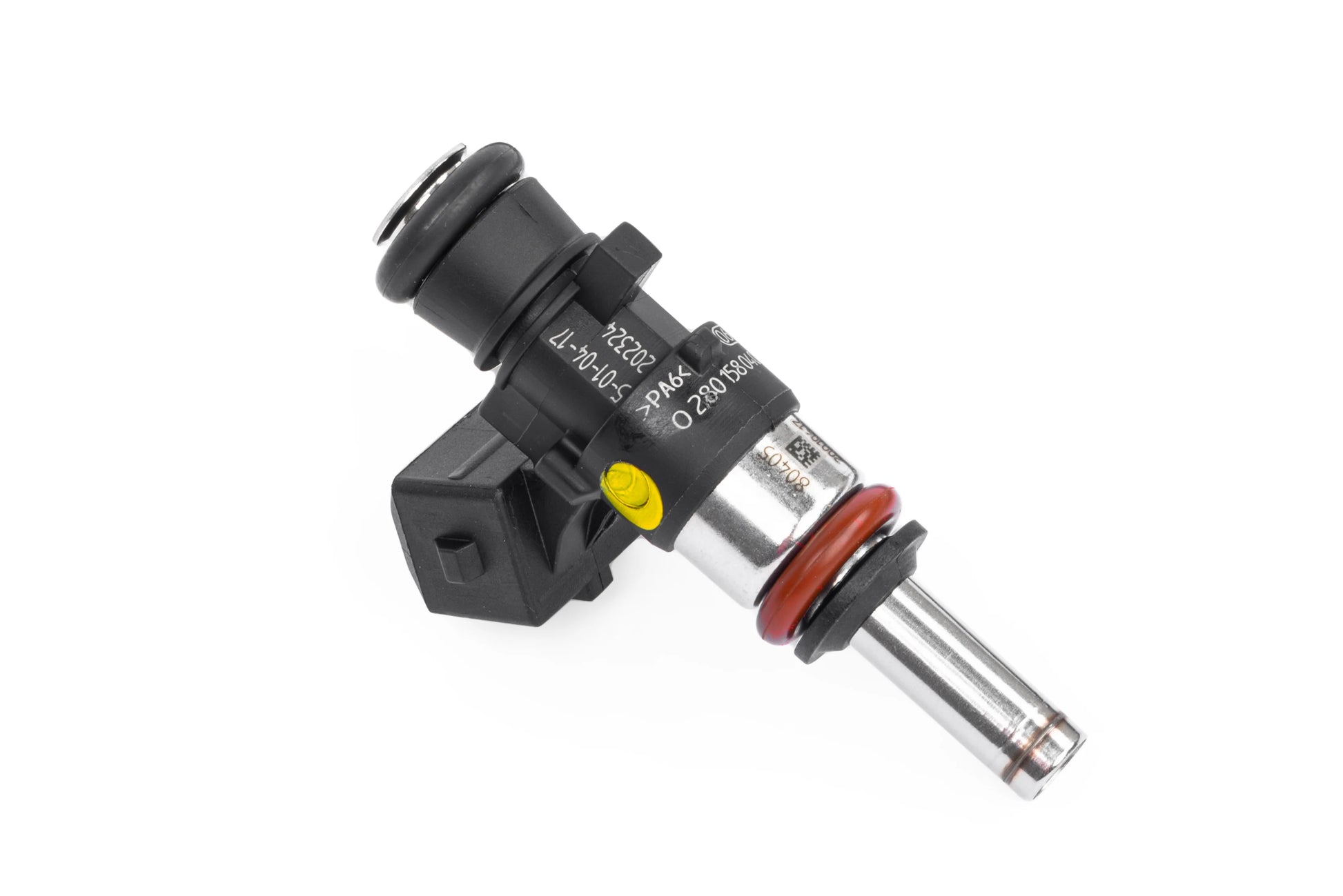

  • Bosch EV 14 CKxT MPI injector (0280 158 040)
  • APR Bosch Jetronic to OEM 2 pin harness
  • 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
  • Supports up to 8 bar of use in motorsport configurations
  • E85 and M100 compatible
  • 30° single cone spray angle with 0° bent angle and 0° gamma angle
  • 33.6mm compact body

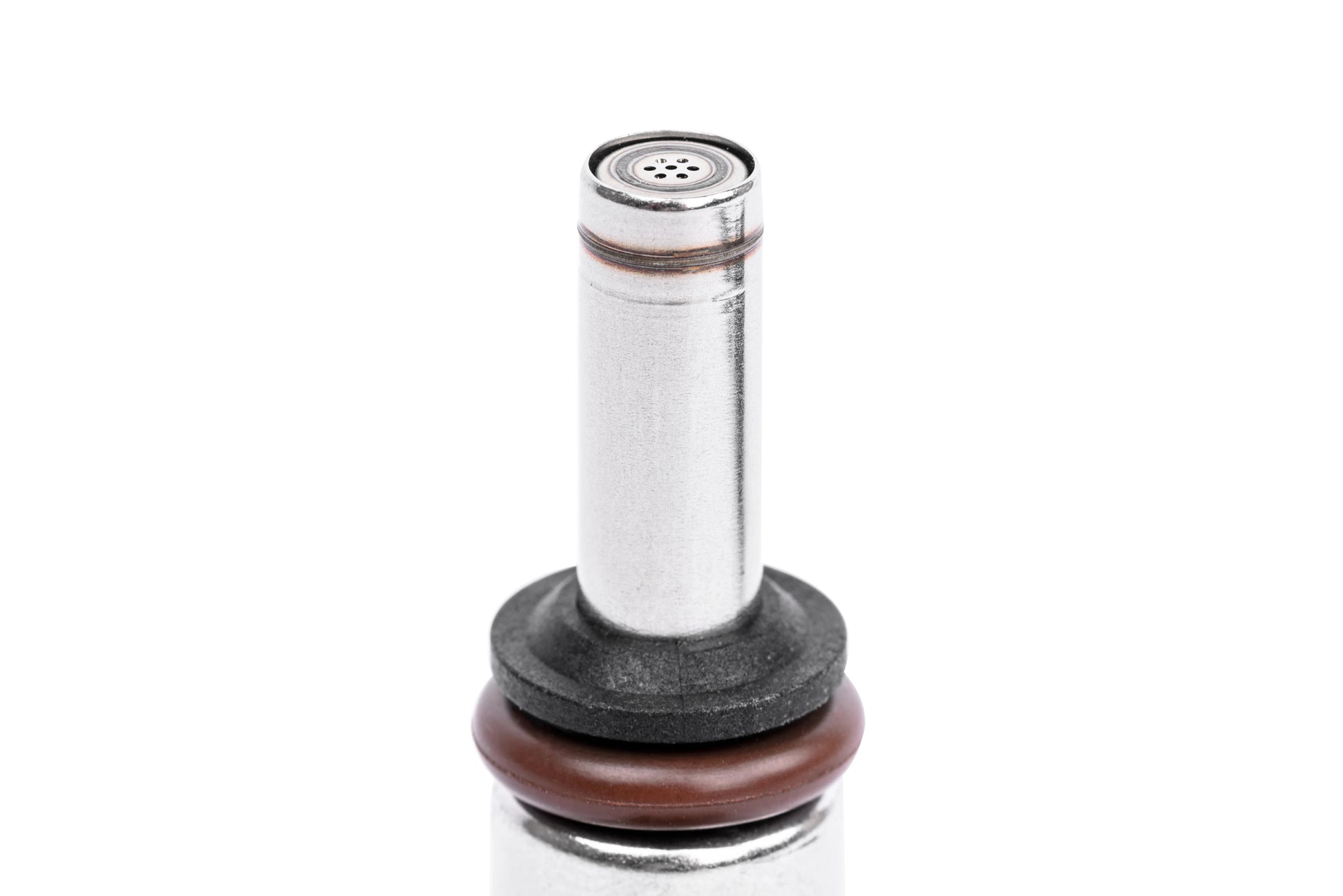

  • 24mm extended tip nozzle
  • Top-feed injector
  • 12 ohm coil resistance

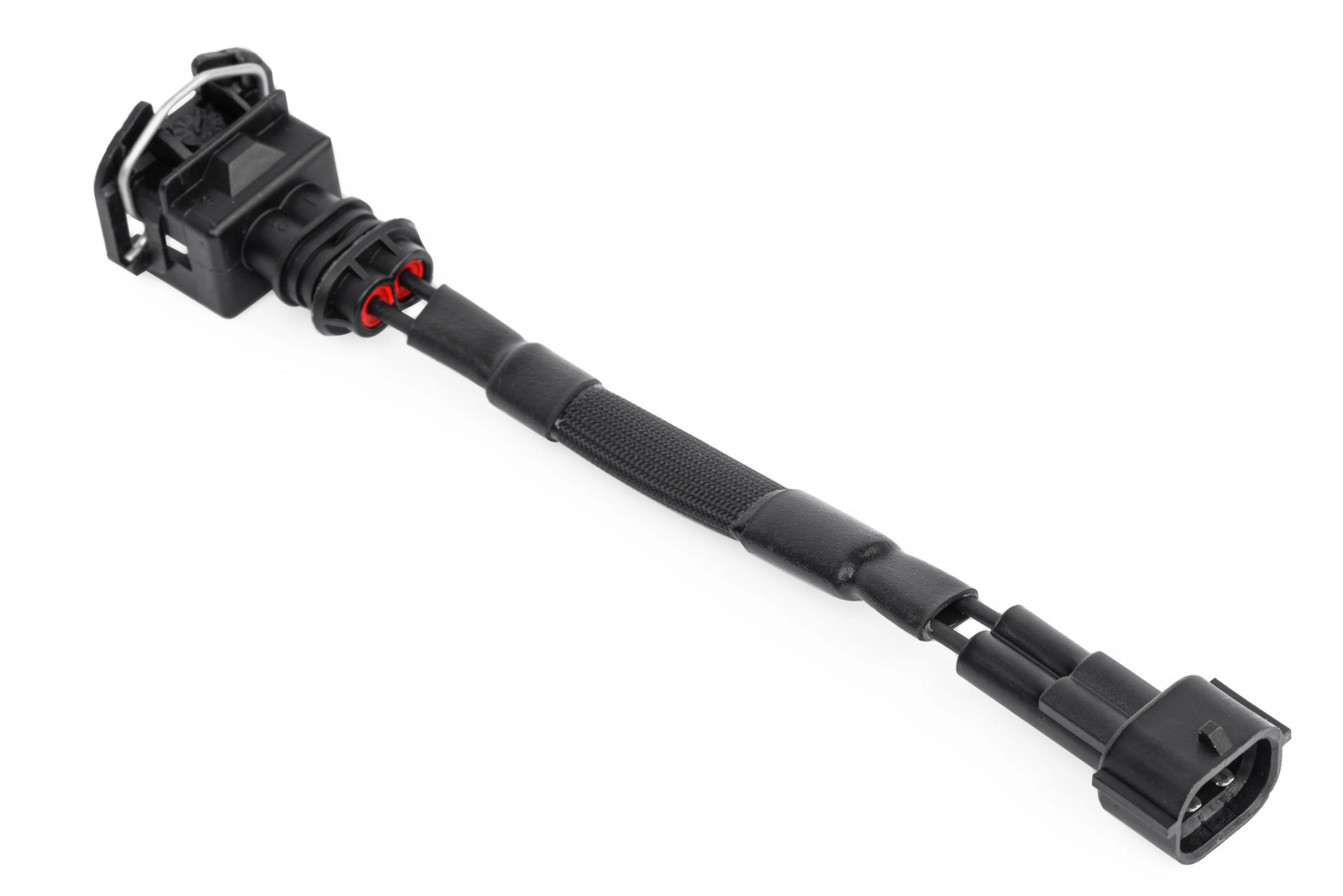

  • 150 mm long harness with braided wire sheathing
  • ECU software required for use
  • Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported

Specs

Brand APR
Category Air and Fuel Delivery
Connector Bosch Jetronic to OEM
Direct Fit Yes
Emission Code 7
Max Pressure 8 Bar
MPI Injector CC 980cc/min @ 3 bar
MPI Injector Count 1
Product Type Fuelings Systems (Kit)
Sub Category Service Kits
UPC 810009932765
Part Number MS100195

Emissions

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Bosch Data Sheet
Reference Part 0280.158.040

Instructions - data_sheet_67797771_injection_valve_ev_14.pdf

On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software. On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection. On models without factory MPI injection, more components are required. If used for methanol injection, the valves must be flushed with standard gasoline after use.
