APR IC100012 - Intercooler System - 1.8T/2.0T EA113 / EA888 G1/2 MK5/6
APR IC100012 - Intercooler System - 1.8T/2.0T EA113 / EA888 G1/2 MK5/6
SKU: IC100012
Regular price
$2,119.00
Regular price
Sale price
$2,119.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fits Audi A3 06-13, A3 Quattro 09-15, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15, VW Beetle 12-13, CC 09-17, Eos 07-16, Golf R 12-13, GTI 06-14, Jetta 06-13, Passat 06-10
Overview
The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.
Features:
- Dramatically lowers intake air temperature
- Increases horsepower and torque while prolonging performance
- APR intercooler core dimensions: 2.25" x 16.25" x 22"
- 40% larger than stock

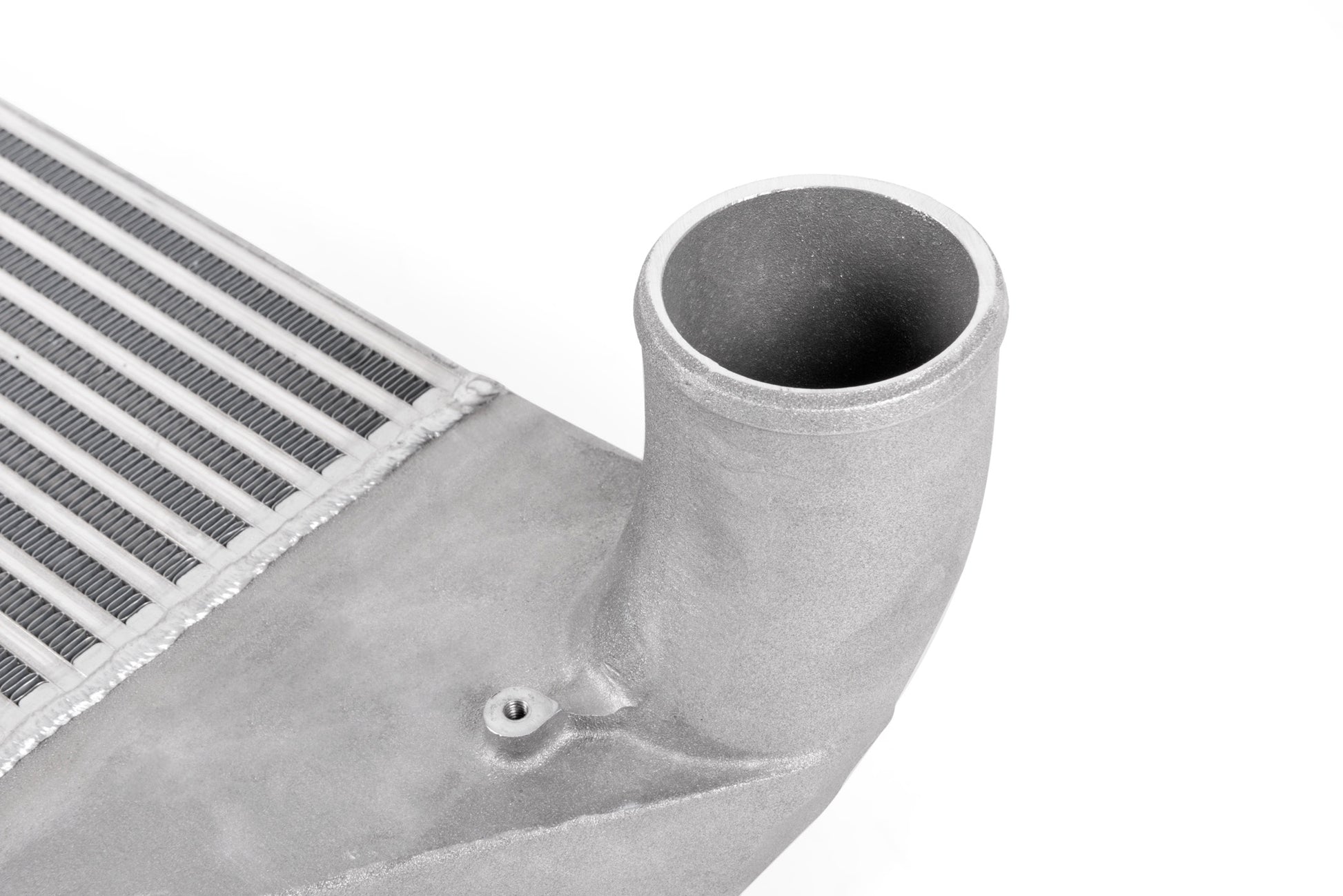

- Larger inlets and outlets
- Pressure tested for leak proof operation

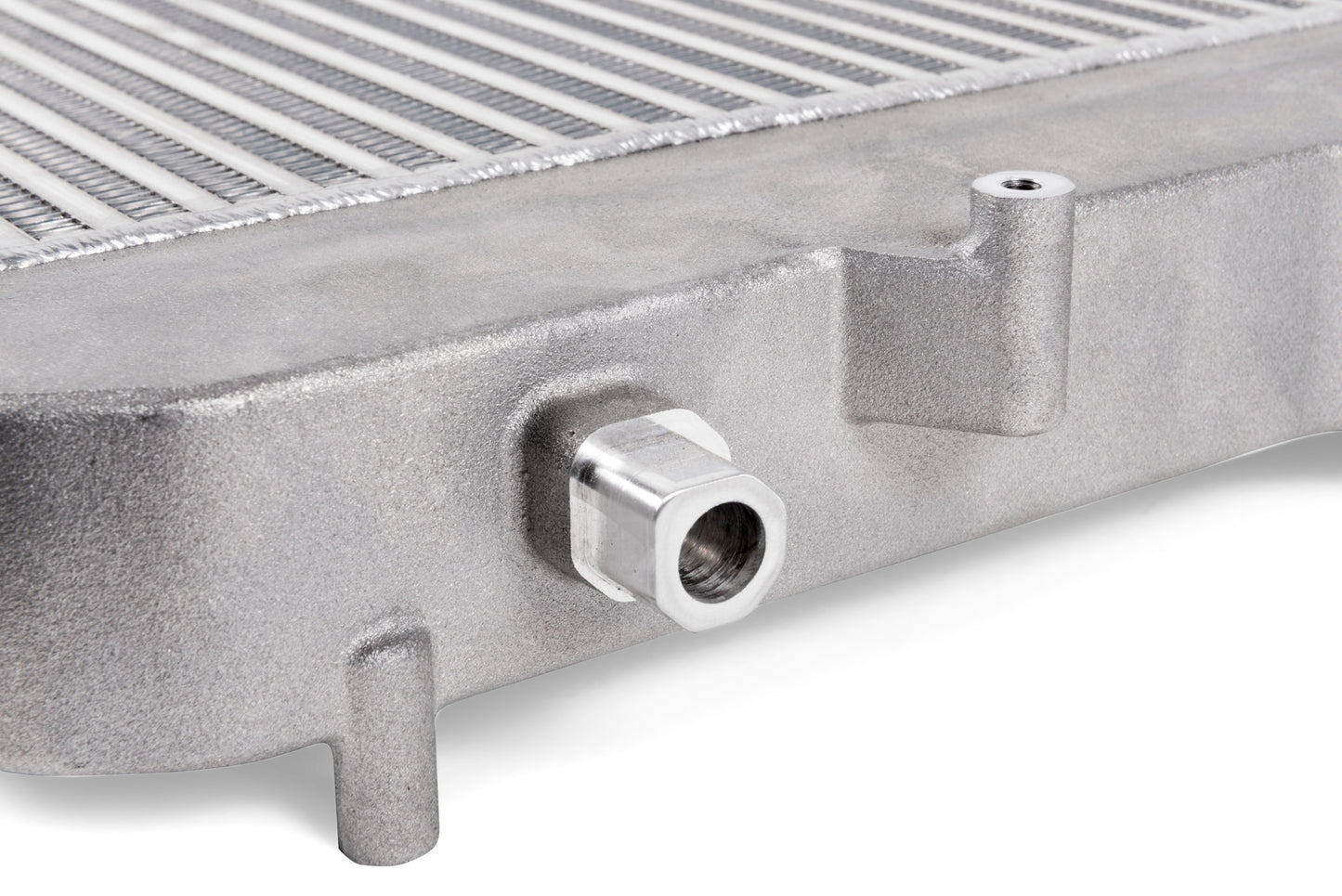

- Smooth cast aluminum end tanks
- Barbed hose connection points for a slip proof fit
- Machined mounting points for extra weight savings
- CNC machined billet adapter
- Multi Ply Silicone Hoses with APR's EZ-Flow stepped design
- Direct OEM fitment with no trimming necessary
- Full install directions and APR's world-renowned customer support
Specs
| Brand | APR |
|---|---|
| Category | Belts and Cooling |
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 357.50 SI |
| Core Height | 16.25 IN |
| Core Type | Bar and Plate |
| Core Volume | 804.38 CI |
| Core Width | 2.25, 22 IN |
| Direct Fit | Yes |
| Emission Code | 7 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicon |
| Product Type | Intercooler Systems |
| Sub Category | Radiators, Coolers and Related Components |
| Version | EA113, EA888.1, & EA888.2 |
| Welding Type | TIG |
| UPC | 810904030627 |
| Part Number | IC100012 |
Emissions
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Please note, this part number is only designed to fit the EA113 and EA888 Gen 1 engines. The TT with EA888 Gen 2 engine requires factory discharge pipe part numbers 1K0 145 840 R and 1K0 145 769 J. EA888 Gen 3 engines use part number IC100018. The AWD Tiguan and Yeti models use part number IC100020.
