APR MS100129 - Ultracharger Throttle Body Upgrade - 3.0 TFSI - Q5/SQ5
APR MS100129 - Ultracharger Throttle Body Upgrade - 3.0 TFSI - Q5/SQ5
SKU: MS100129
Regular price
$1,271.00
Regular price
Sale price
$1,271.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fits Audi Q5 13-17, SQ5 14-17
Overview

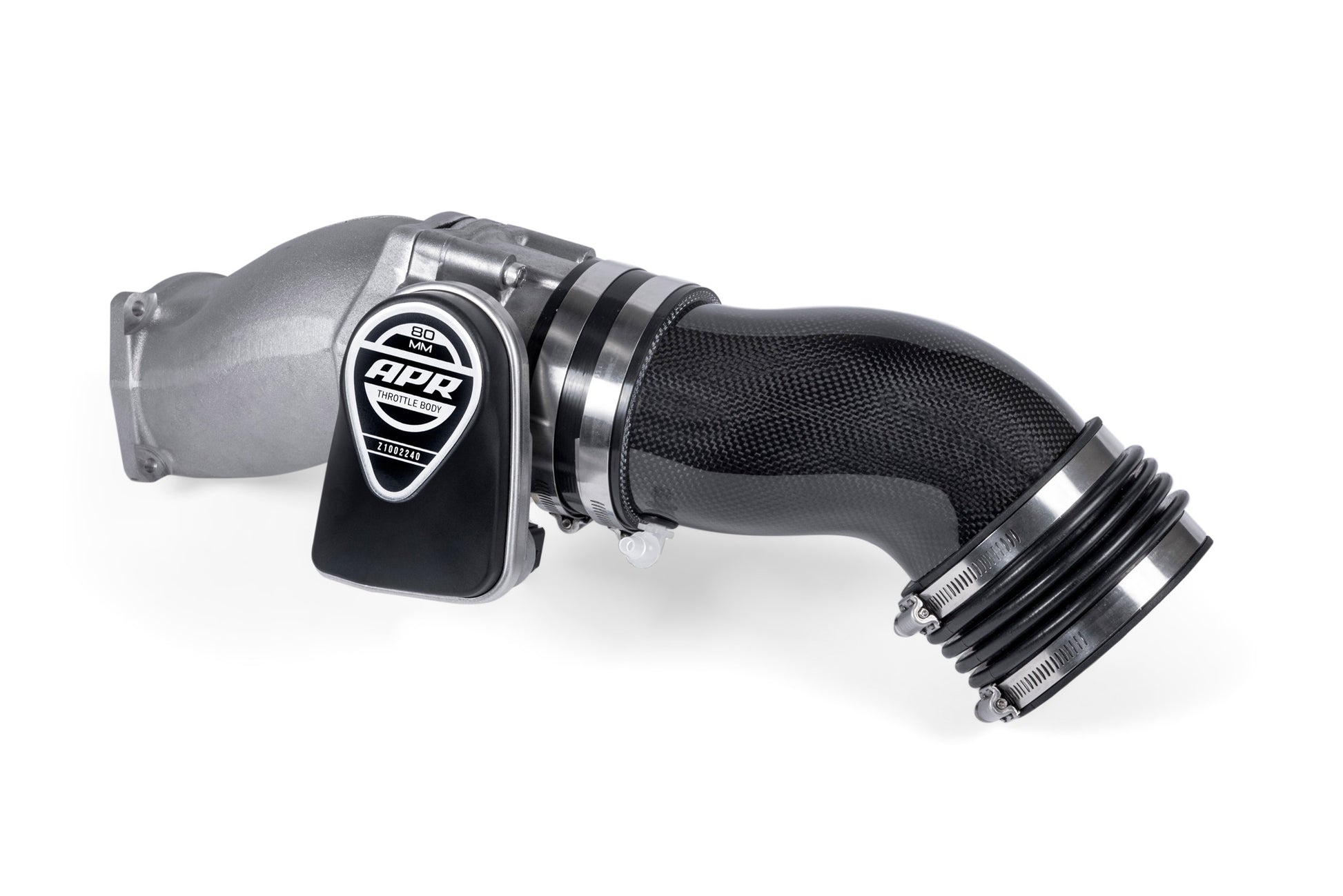

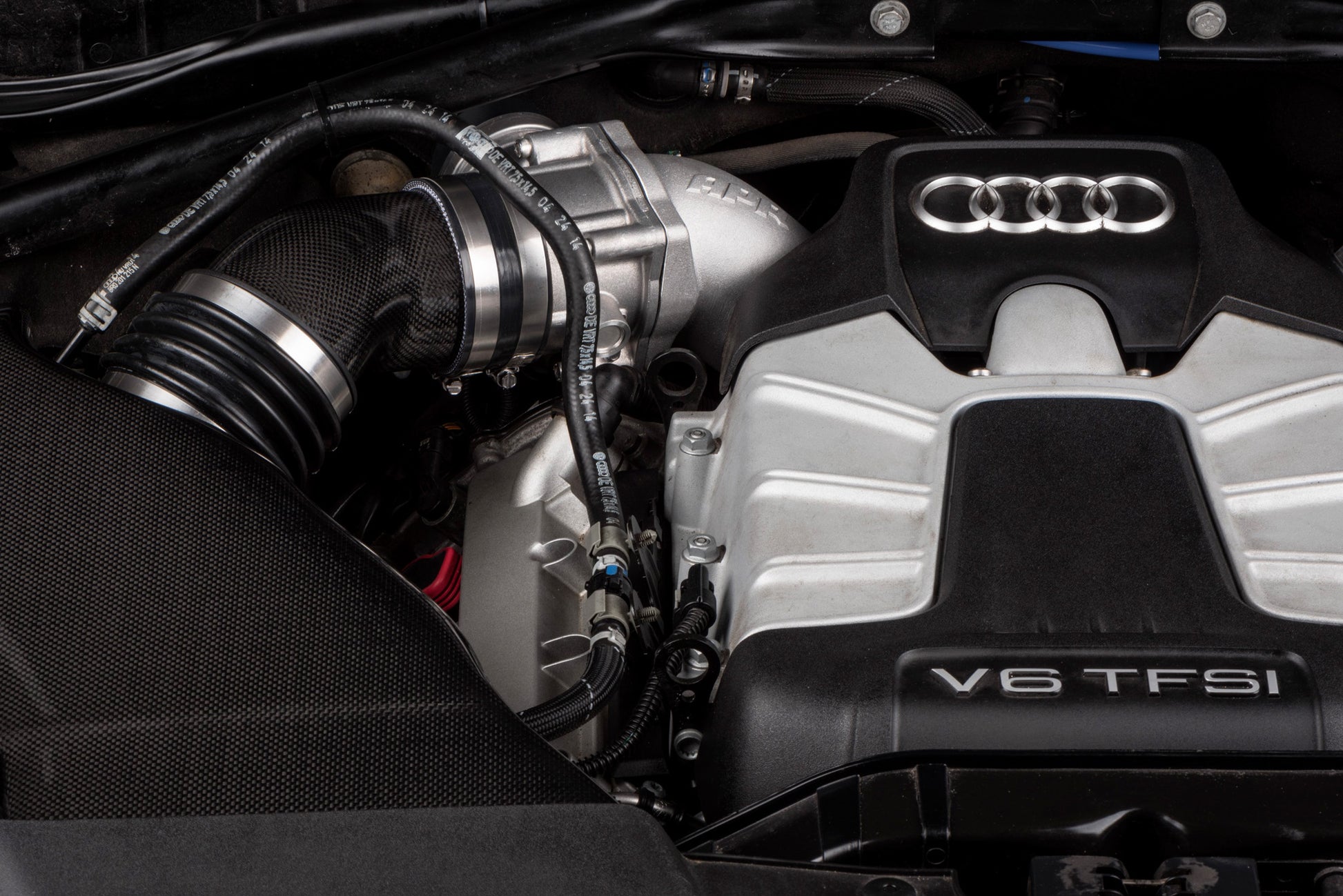

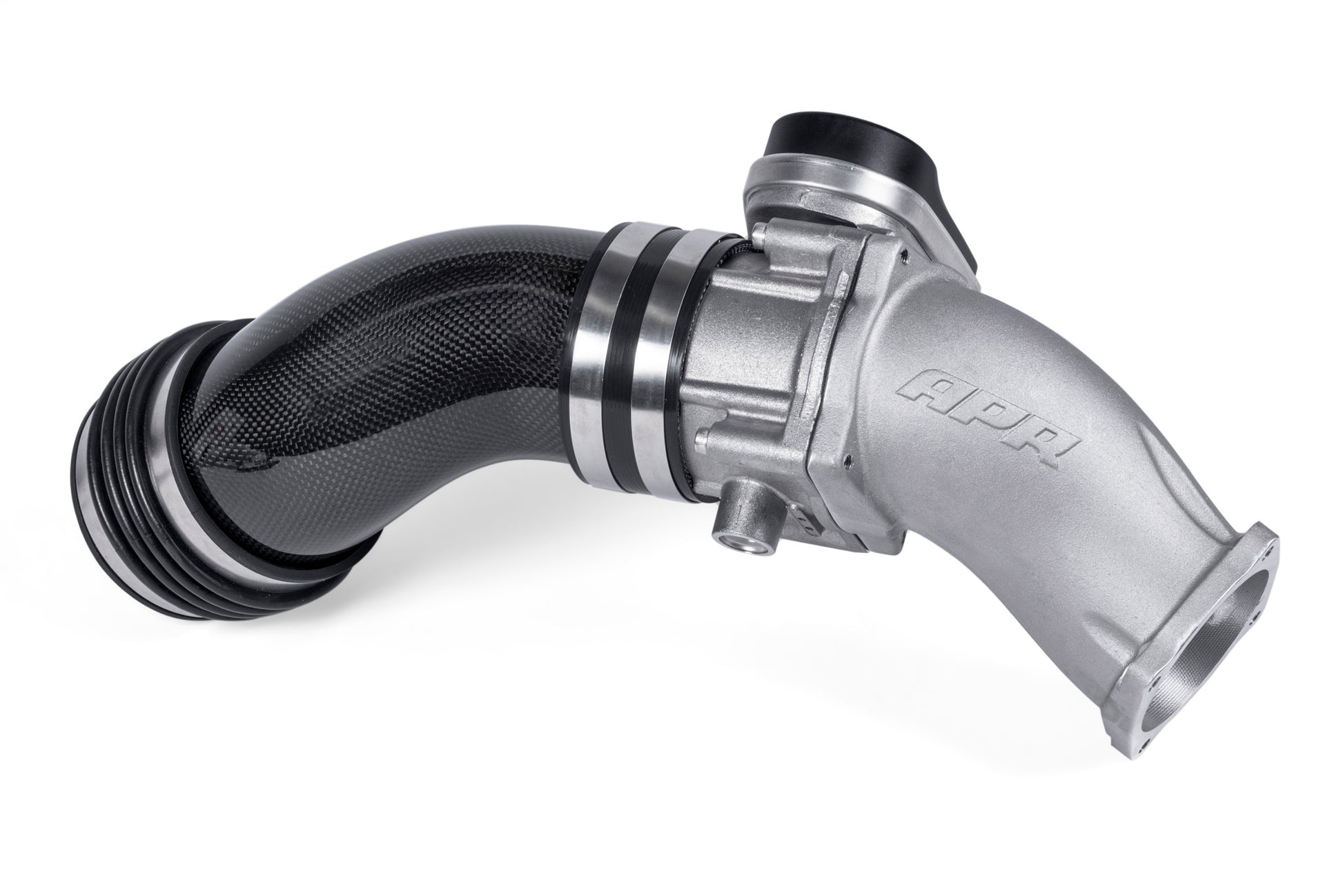

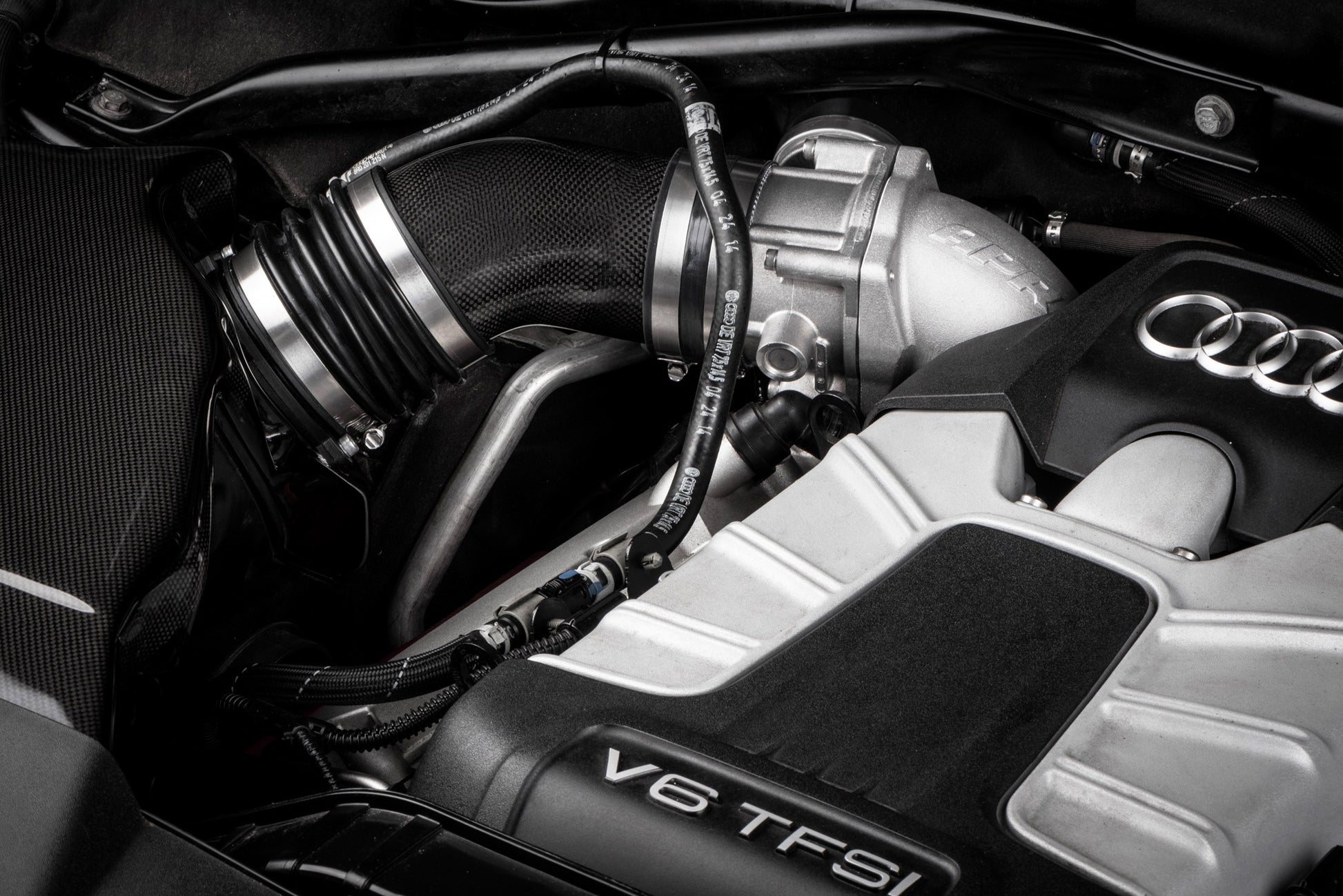

The APR Ultracharger System dramatically increases horsepower and torque, and maximizes the power potential of the 3.0 TFSI. It removes a massive pre-supercharger restriction, allowing uninterrupted airflow into the supercharger for up to an astonishing 542 HP with APR's Supercharger and Crank Pulleys. Stunning carbon fiber and smooth cast-aluminum adorn the system, creating a clean and simple install that looks just as powerful as it is. Finally, APR's innovative Ultracharger ECU Upgrade delivers a smooth and exciting driving experience, and it is included as a free upgrade to all who own an APR Stage 2 ECU Upgrade.

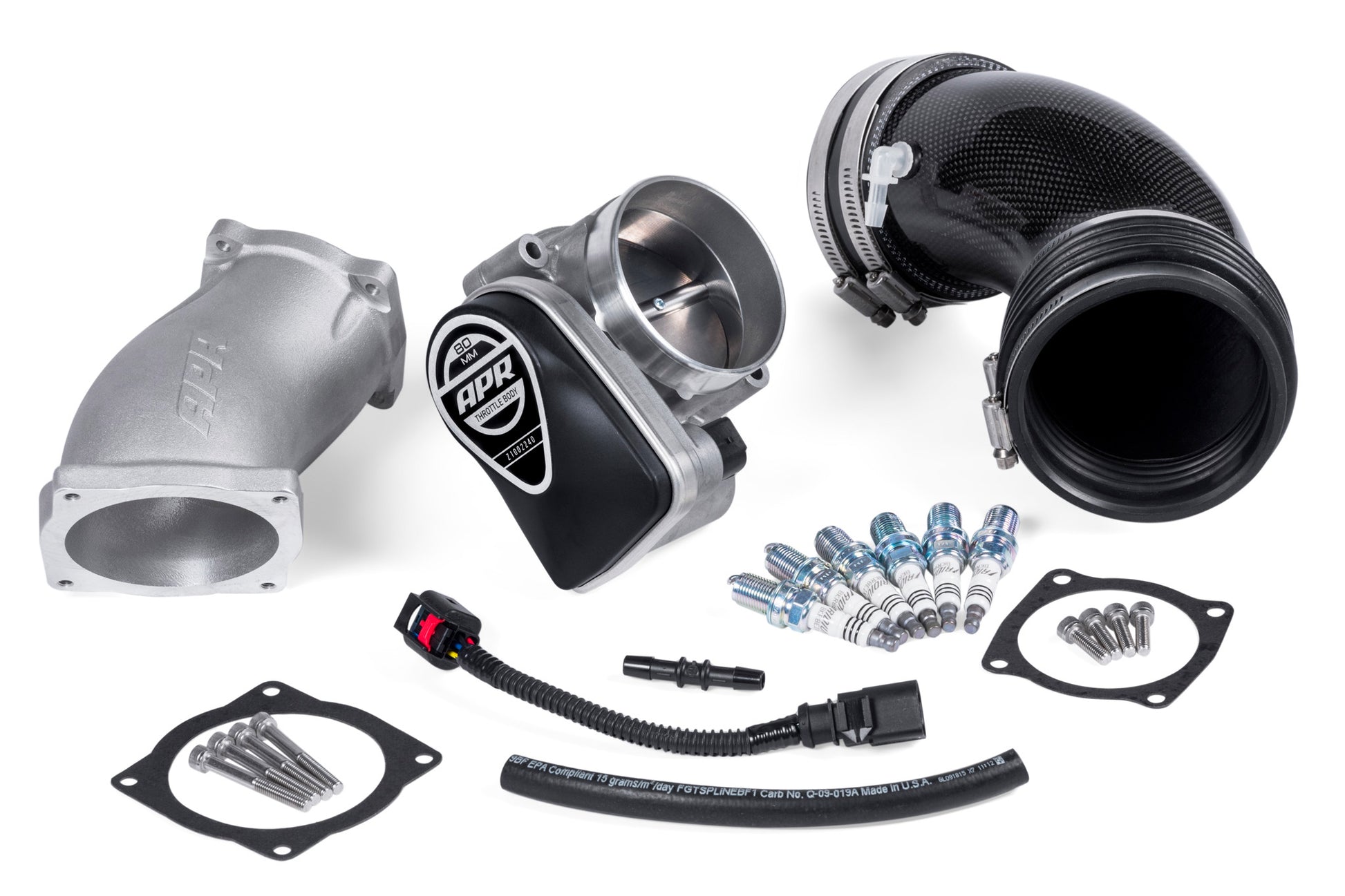

Features:
- Ultimate 3.0 TFSI upgrade

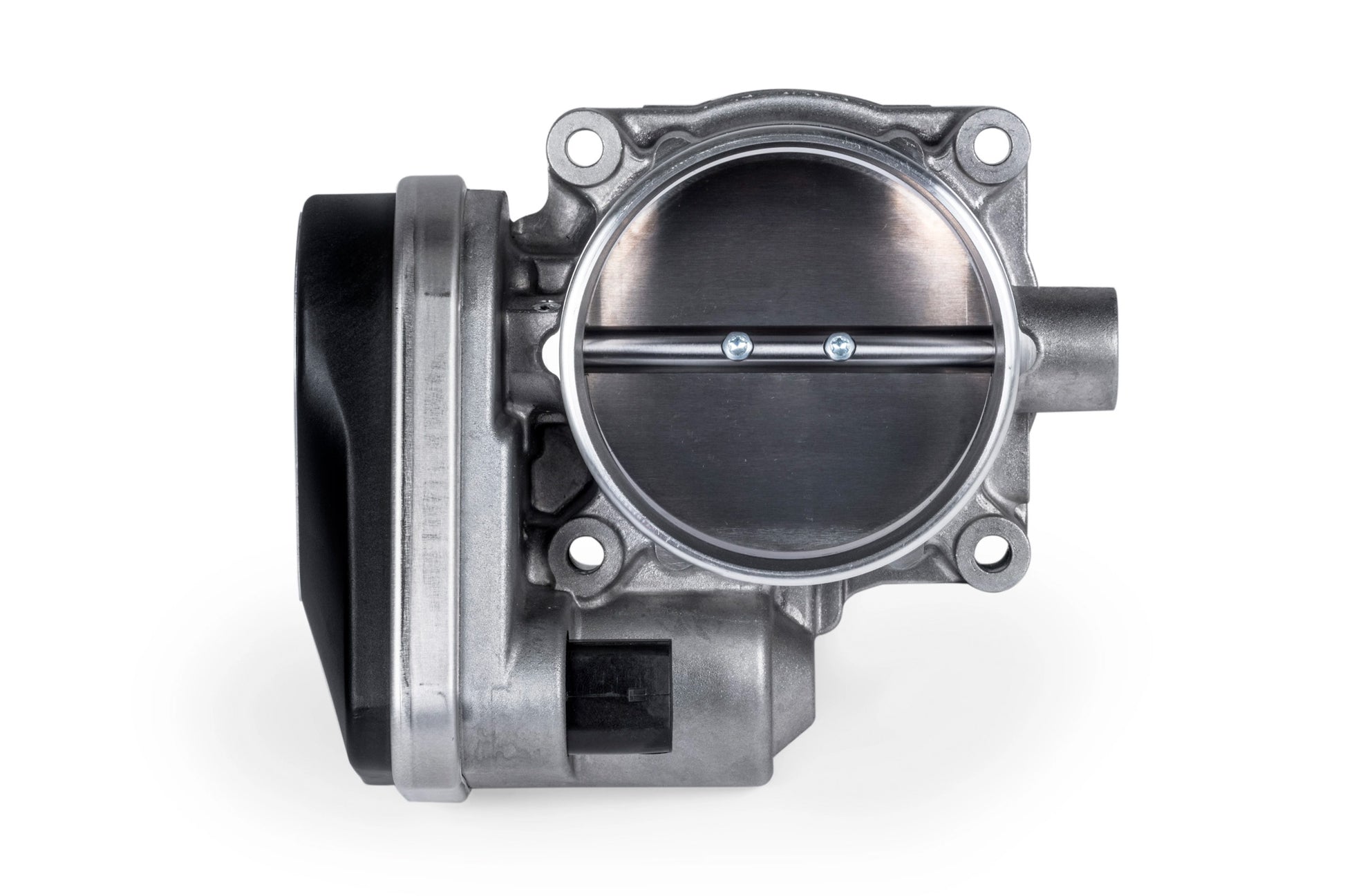

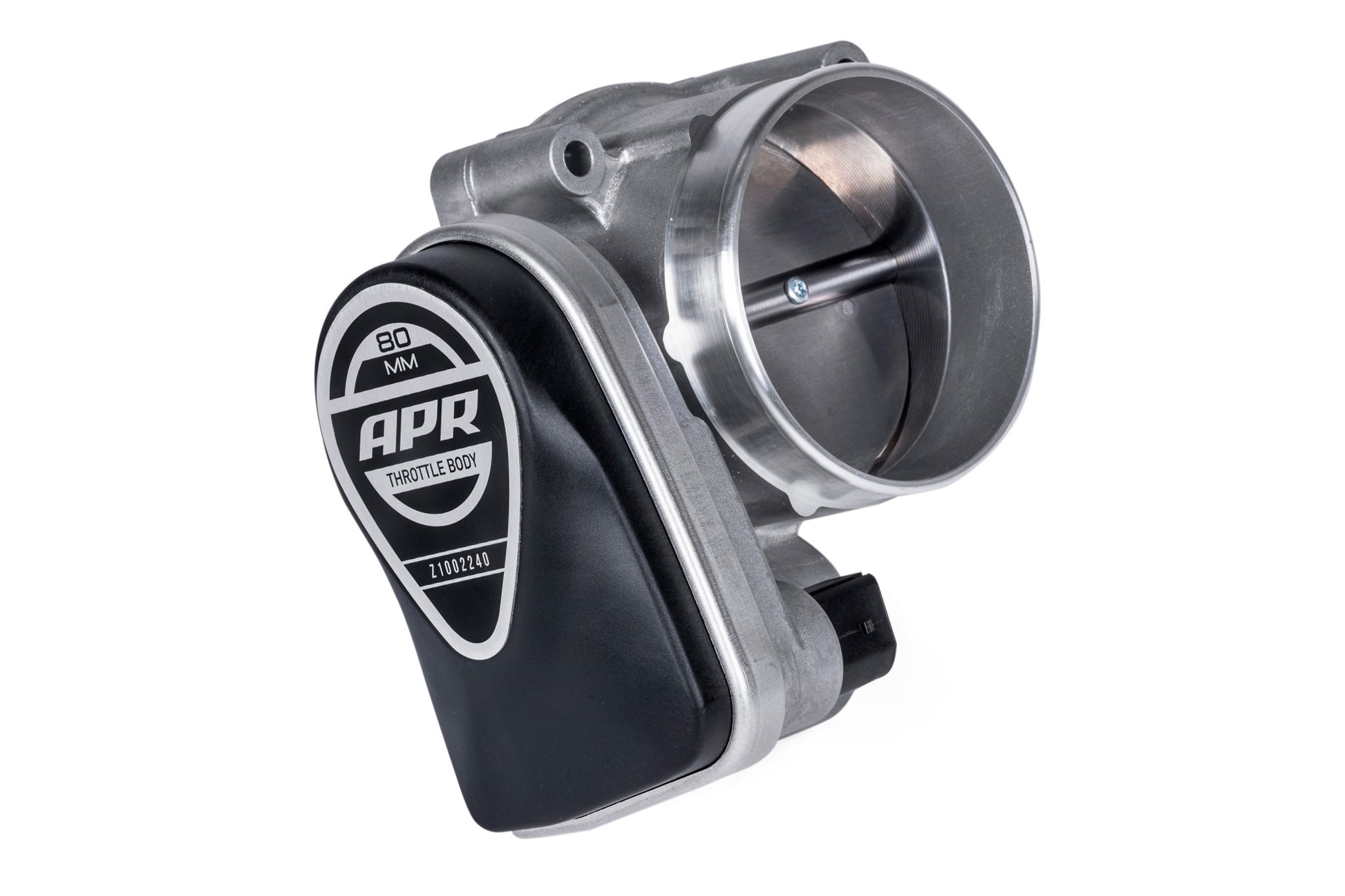

- 28% larger throttle body upgrade
- Includes the ECU upgrade (Waives upgrade price)

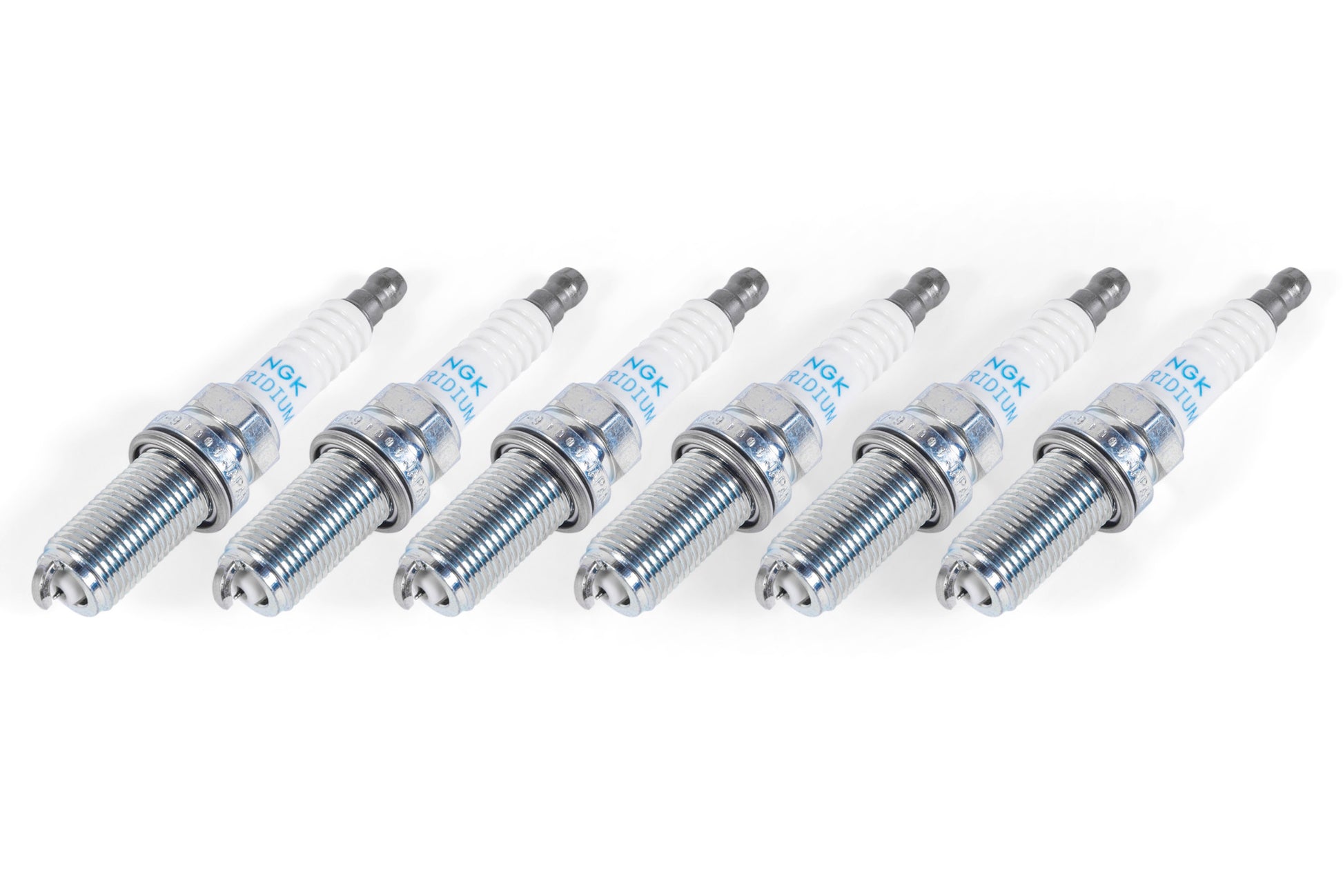

- Includes new NGK spark plugs

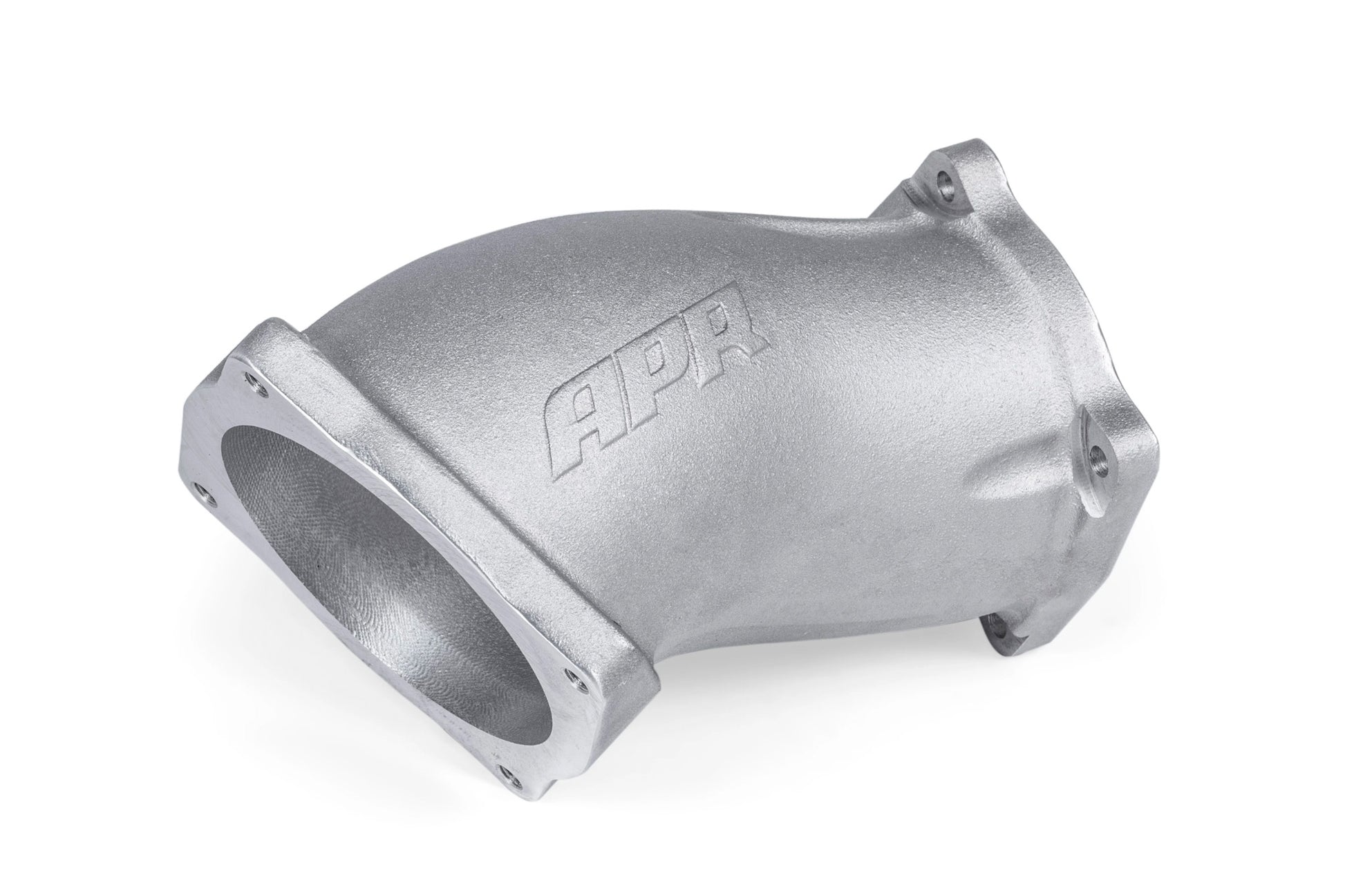

- Cast aluminum inlet adapter

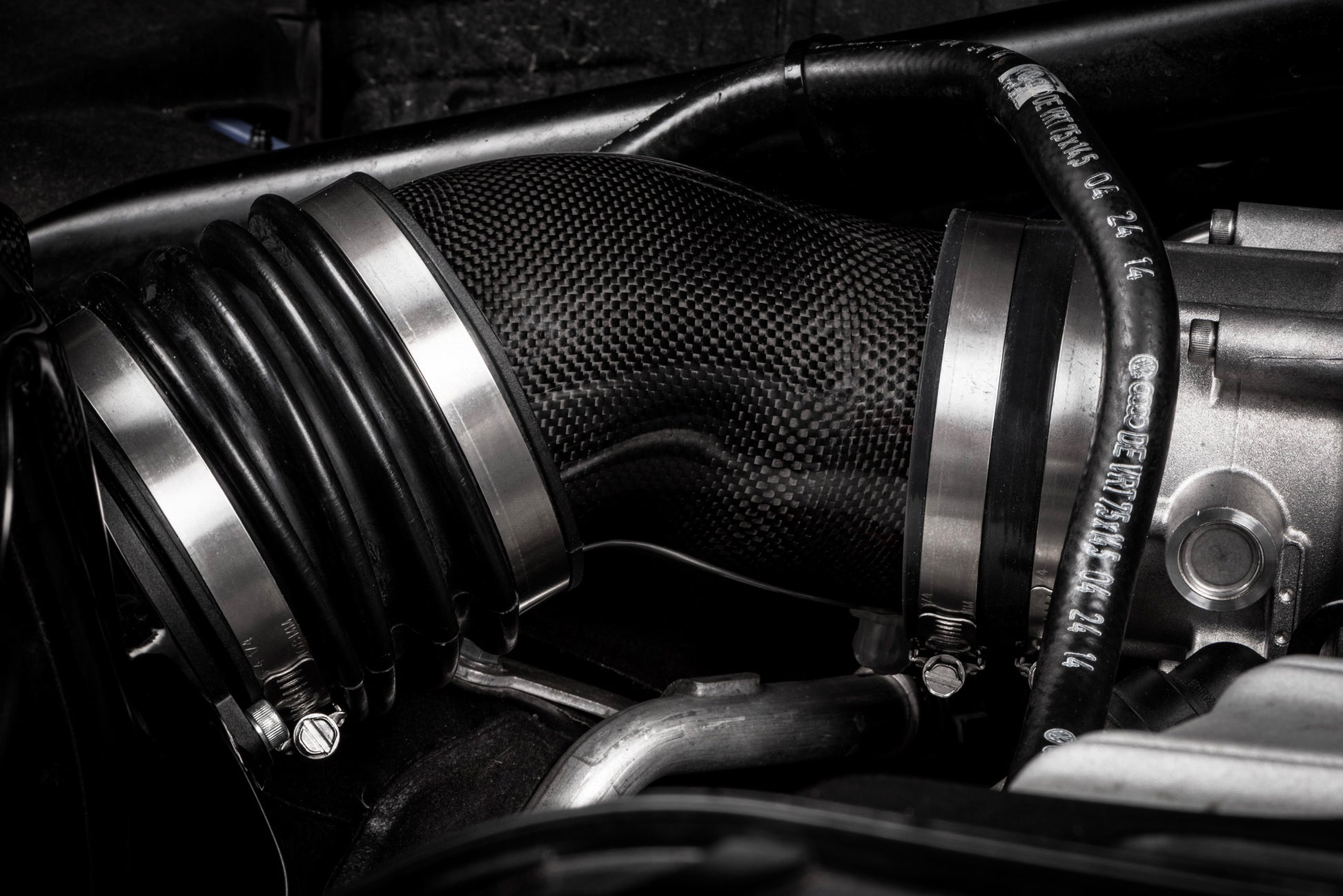

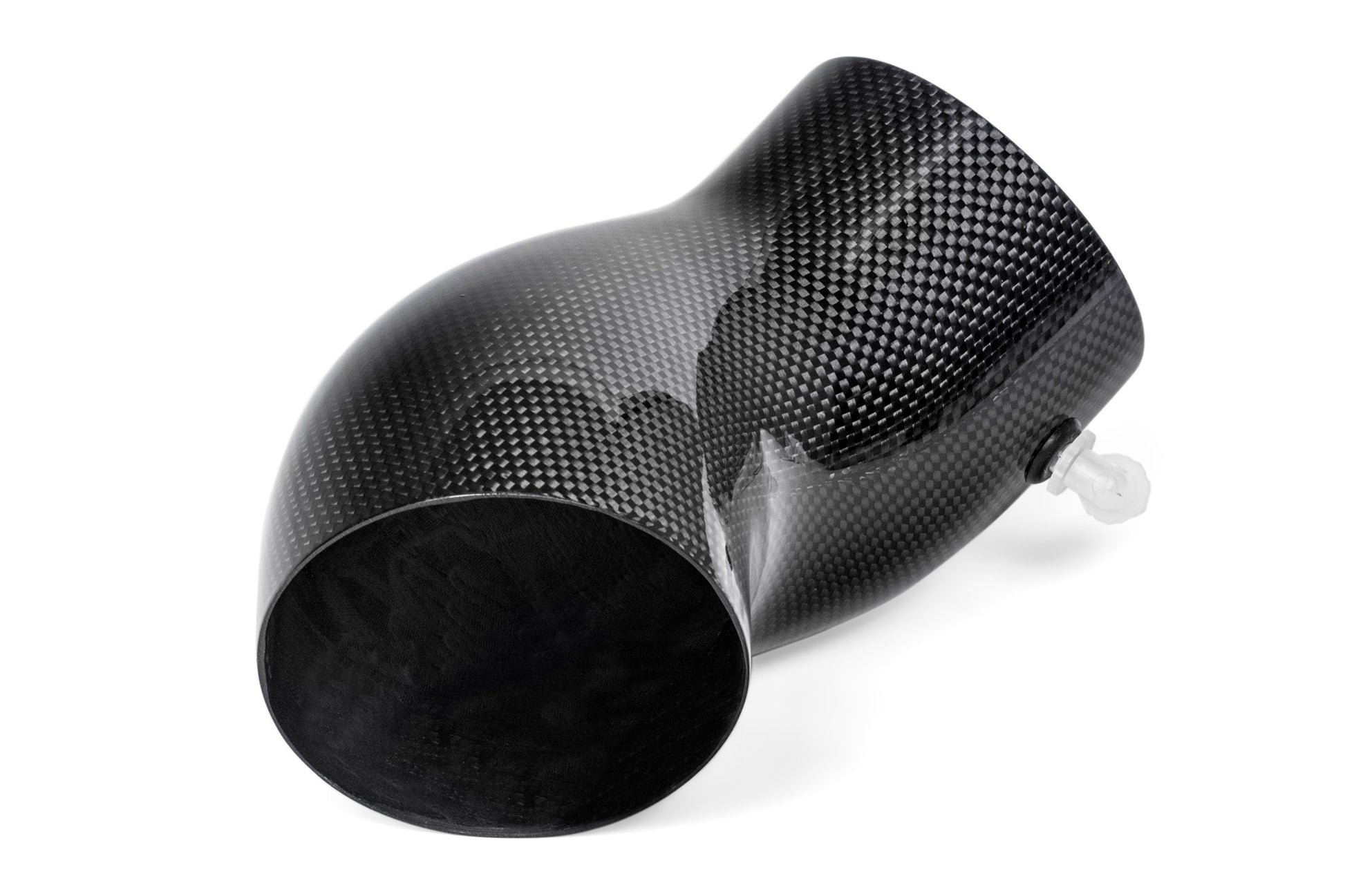

- Carbon fiber inlet tube

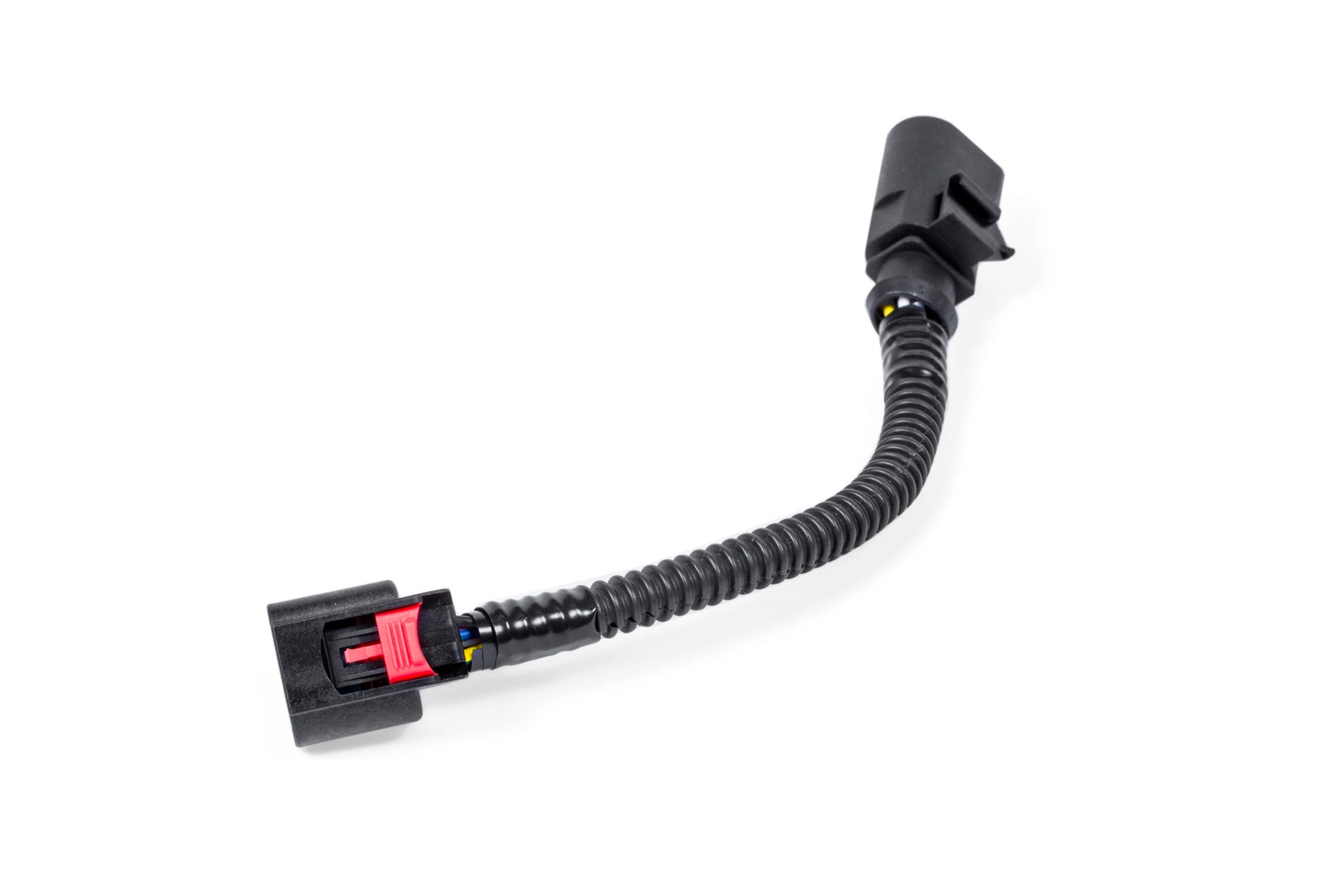

- New harness
- New gaskets and hardware
- Plug and play with APR software
- Attractive appearance
- Massive horsepower and torque improvements
Specs
Adapter Construction | Cast |
---|---|
Adapter Material | Aluminum |
Brand | APR |
Category | Air and Fuel Delivery |
Emission Code | 7 |
Inlet Material | Carbon Fiber |
Product Type | Intake Systems (Throttle Bodies) |
Sub Category | Fuel Injection System and Related Components |
Throttle Diameter | 80 MM |
Version | Q5/SQ5 |
UPC | 810904031242 |
Part Number | MS100129 |
Service Parts
- APR Iridium Pro Spark Plugs - 14x19x16mm - Heat Range 9
Part# Z1003101 - APR Replacement Intake Couplers for Various APR Intake Systems
Part# RF100010
Emissions
This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Tech Resources
Please note, specific software is required to use this system. Software is included. Software compatibility must be checked before purchase. This system also requires other hardware to function properly, including: Supercharger Drive Pulley, Supercharger Crank Pulley, Exhaust, Supercharger Coolant Performance System (CPS), and NGK BKR9EIX plugs gapped @ .024" +/- .002" torqued to 30Nm. Intake Air Temperature (IAT) must be below 75c. The factory intake snow screen should be removed and intake upgraded. Transmission software is required to hit higher RPM limits.
