APR MS100135 - Supercharger Drive Pulley - 3.0 TFSI

APR MS100135 - Supercharger Drive Pulley - 3.0 TFSI

SKU: MS100135
Regular price $297.00
Regular price Sale price $297.00
Sale Sold out
Shipping calculated at checkout.

APR logo

Fits Audi A6 Quattro 09-18, A7 Quattro 12-18, A8 Quattro 13-18, Q5 13-17, Q7 11-15, S4 10-16, S5 10-17, SQ5 14-17; Volkswagen Touareg 09-17

Overview

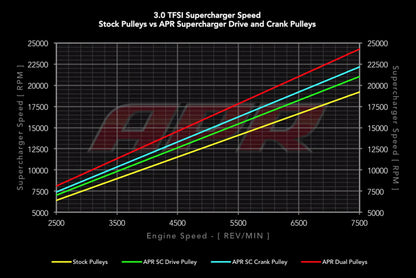

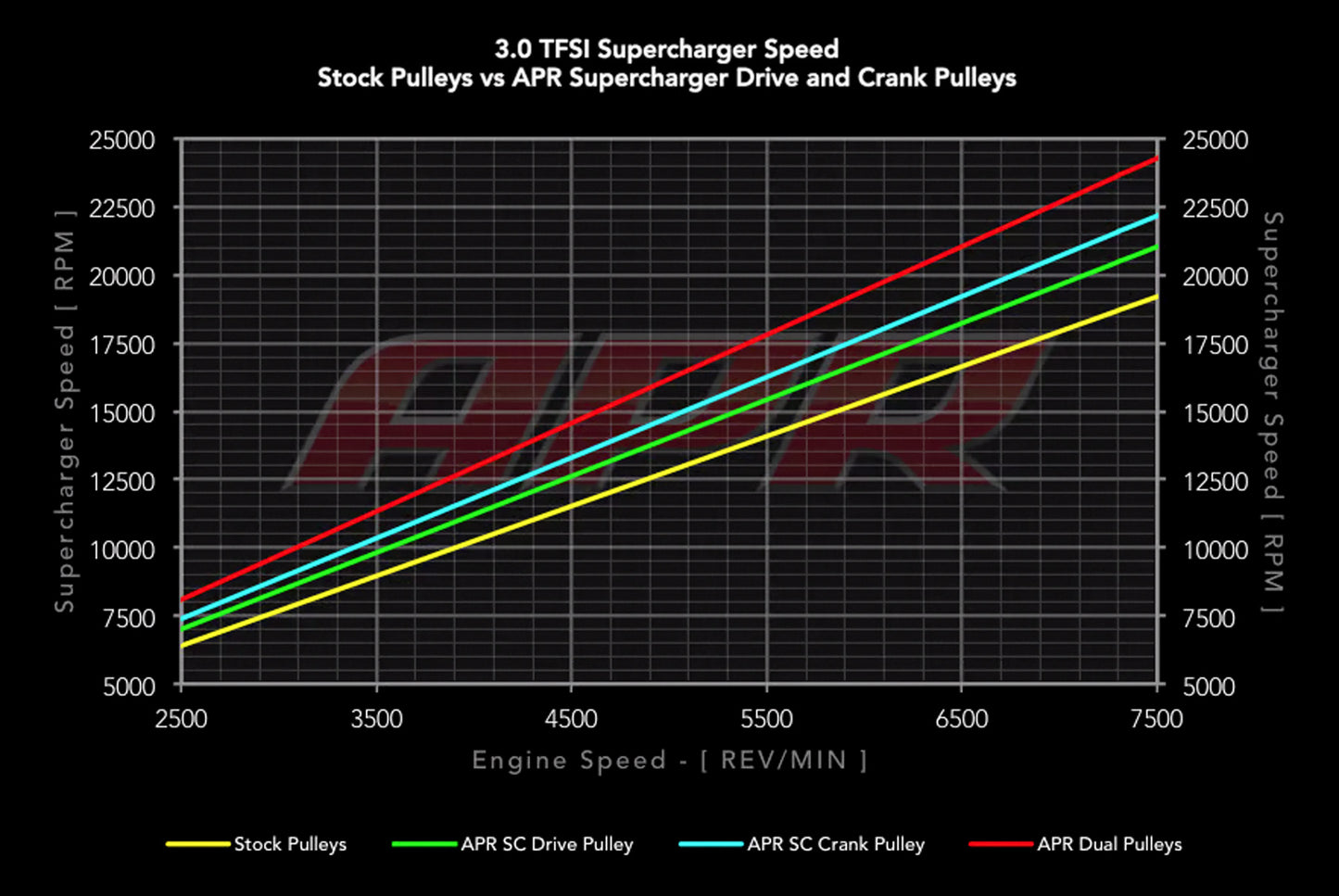

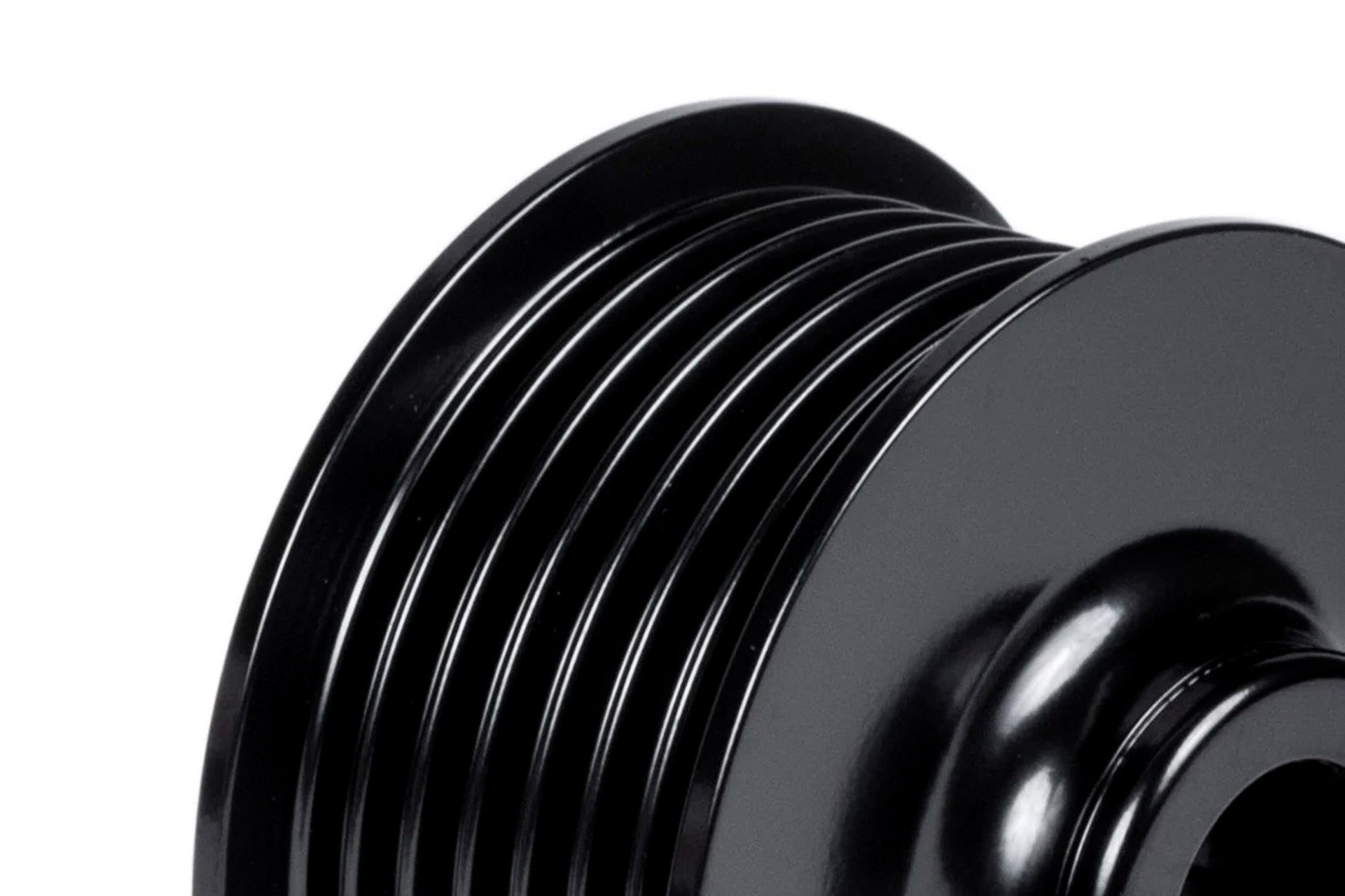

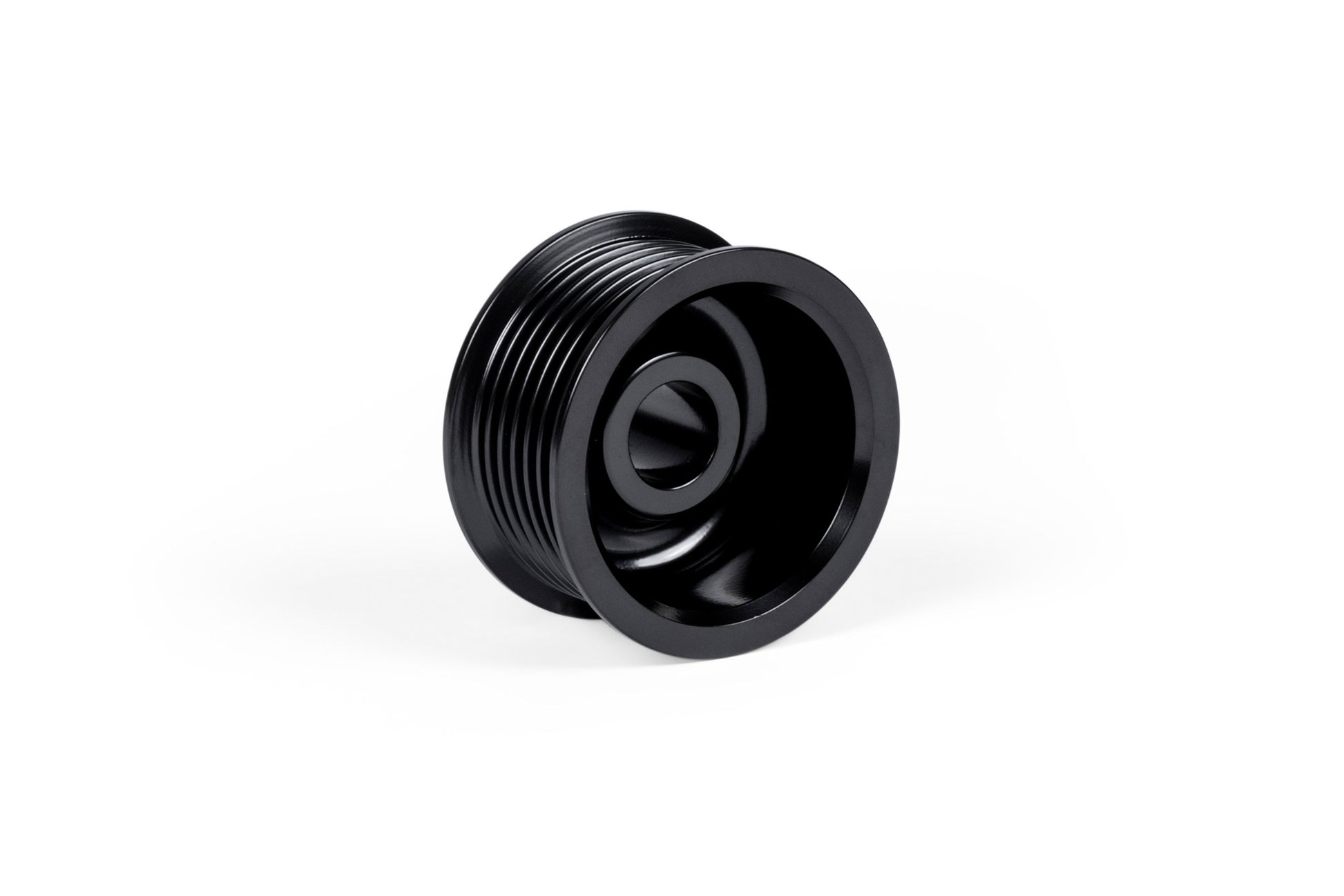

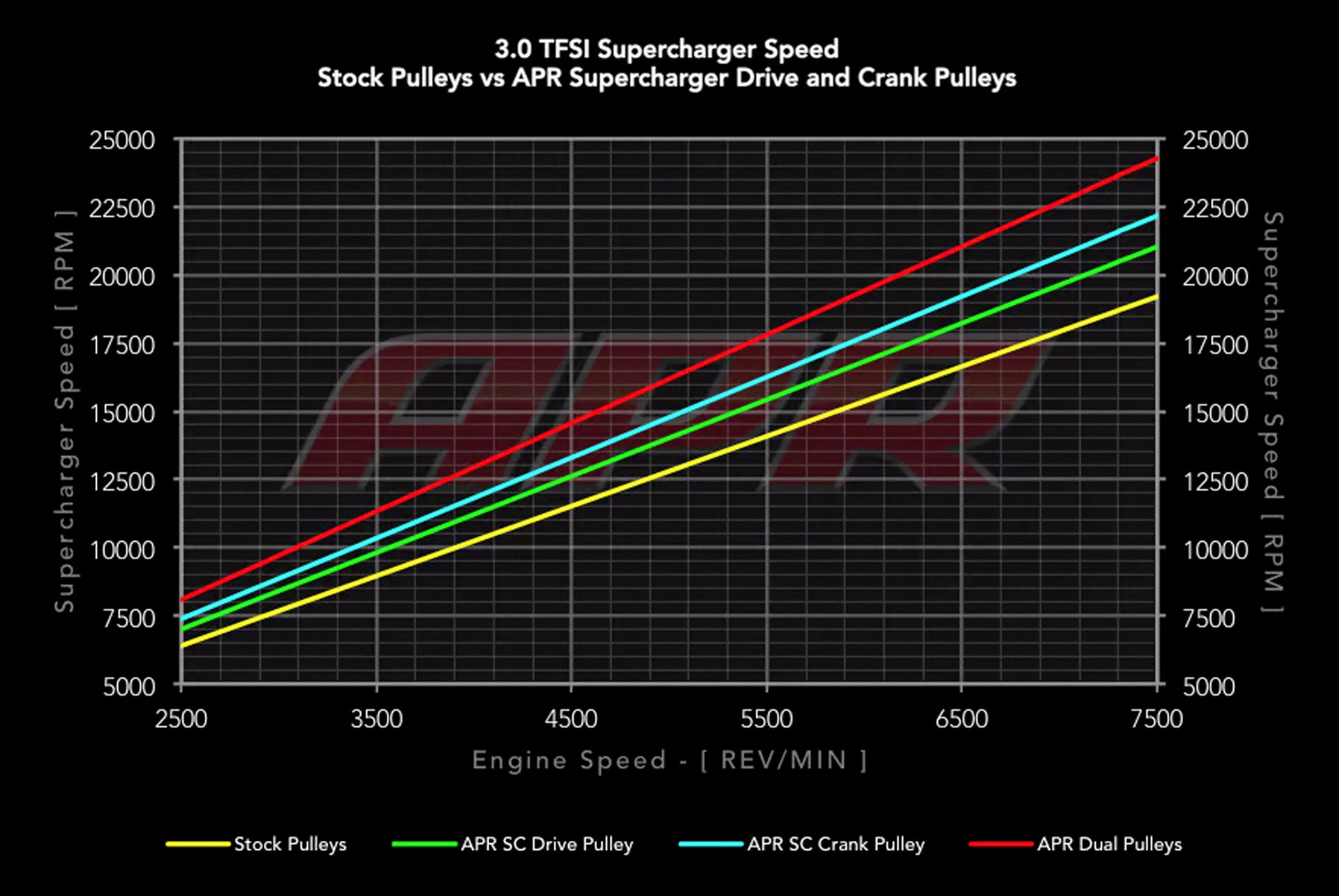

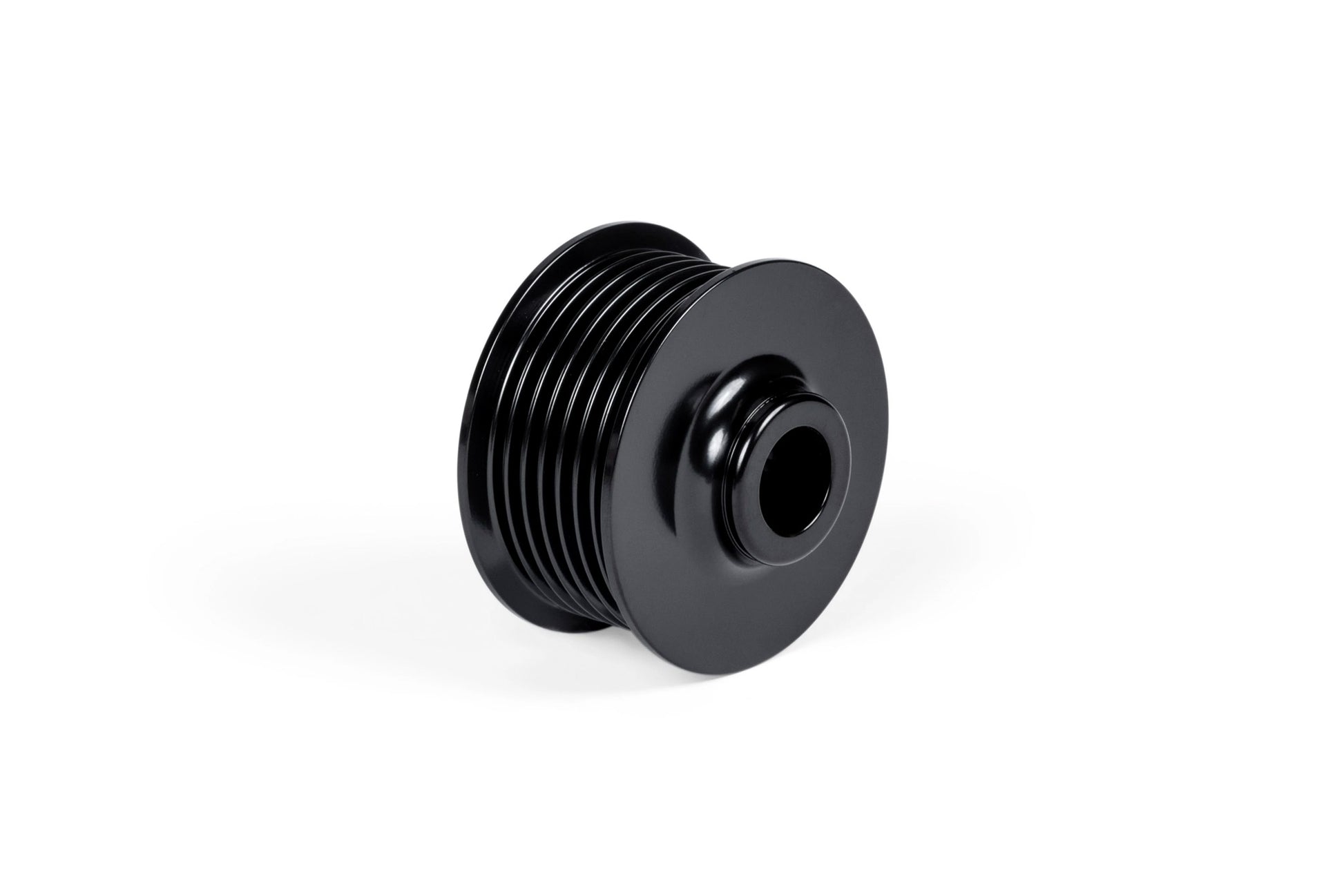

APR's Supercharger Drive and Crank Pulley Upgrades dramatically increase horsepower and torque by increasing the rotational speed of the factory supercharger. APR's Stage II Pulley ECU Upgrade makes the necessary engine management adjustments to handle the increased supercharger speeds, and in turn allows the engine to create more power. The pulleys are sold separately, allowing for multiple levels of performance, each of which builds upon the other. Finally, when combined with APR's Ultracharger Throttle Body Upgrade in a dual pulley setup, the system is alleviated of power robbing inlet restrictions, allowing the engine to achieve exciting new levels of performance! APR's Supercharger Drive Pulley Upgrade decreases the diameter of the factory pulley from ~63.25mm to 57.75mm, which in turn spins the supercharger ~9.5% faster. This results in a healthy bump in horsepower and torque across the entire RPM range with the supercharger operating at a higher rate of speed. The pulley is CNC machined from billet stainless steel, e-coated black for an OEM appearance and is press fitted to the factory supercharger.

Features:

  • Press on 57.75mm supercharger drive pulley
  • Spins the charger 9.5% faster for massive torque and HP gains with tuning
  • Anodized and E-coated factory black
  • Use APR pulley software for more gains

Specs

Brand APR
Category Belts and Cooling
Color Black
Construction Billet
Diameter 187 MM
Emission Code 7
Material T304 Stainless Steel
Product Type Pulley Systems
Sub Category Turbocharger, Supercharger and Ram Air
Version Supercharger Pulley - Press On
UPC 810904031280
Part Number MS100135

Emissions

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

Tech Resources

Please note, specific software is required to maximize output with this product. This system is only for use with pressed on pulleys. For bolted on pulleys, use part number MS100139. To remove the factory pulley, use part number MS100025. A new belt is required. Use part number RS100001 with a factory crank pulley and part number RS100002 with an APR crank pulley.
