APR - OPEN PEX Intake System - 1.8T/2.0T EA888 Gen 3/4 MQB

APR - OPEN PEX Intake System - 1.8T/2.0T EA888 Gen 3/4 MQB

SKU: CI100041
Regular price $459.00
Regular price Sale price $459.00
Sale Sold out
Shipping calculated at checkout.

APR logo

Fits Audi Q3 19-24, A3 15-24, S3 15-24, TTS Quattro 16-23, TT Quattro 16-23, VW Golf SportWagen 15-19, Golf R 15-24, Golf Alltrack 17-19, Arteon 19-24, Tiguan 18-24, GTI 15-24, Jetta 19-24, Golf 15-18

Overview

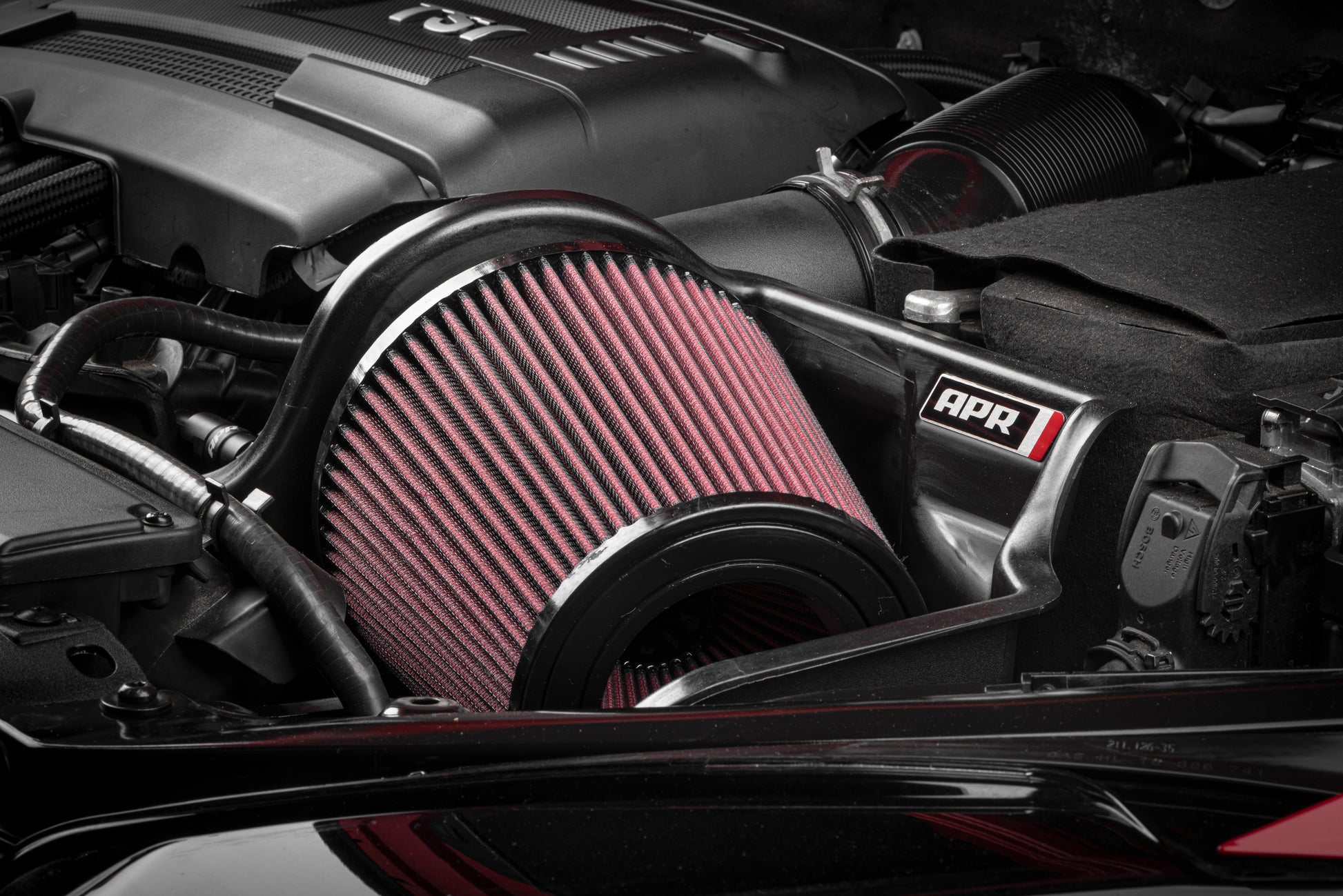

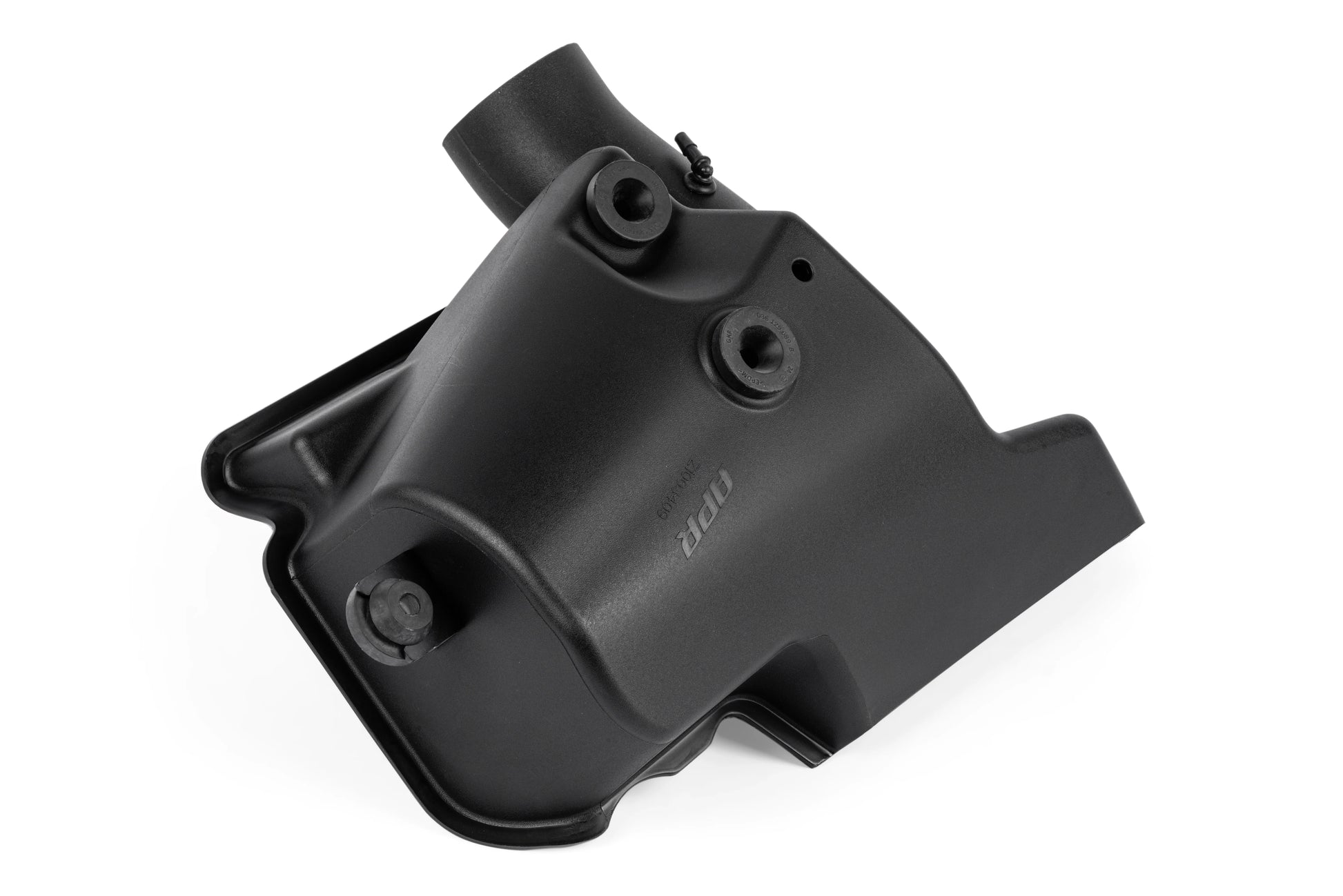

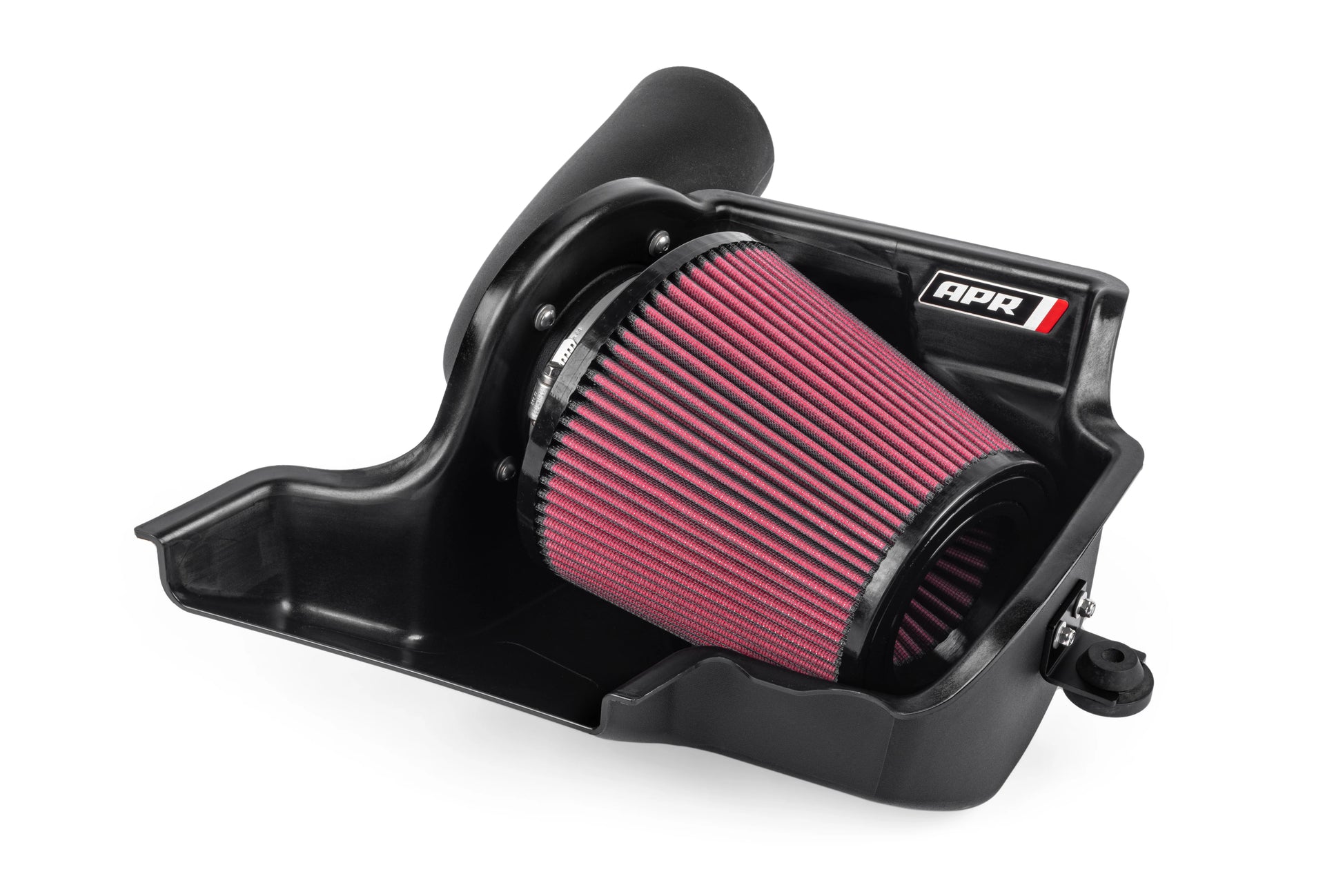

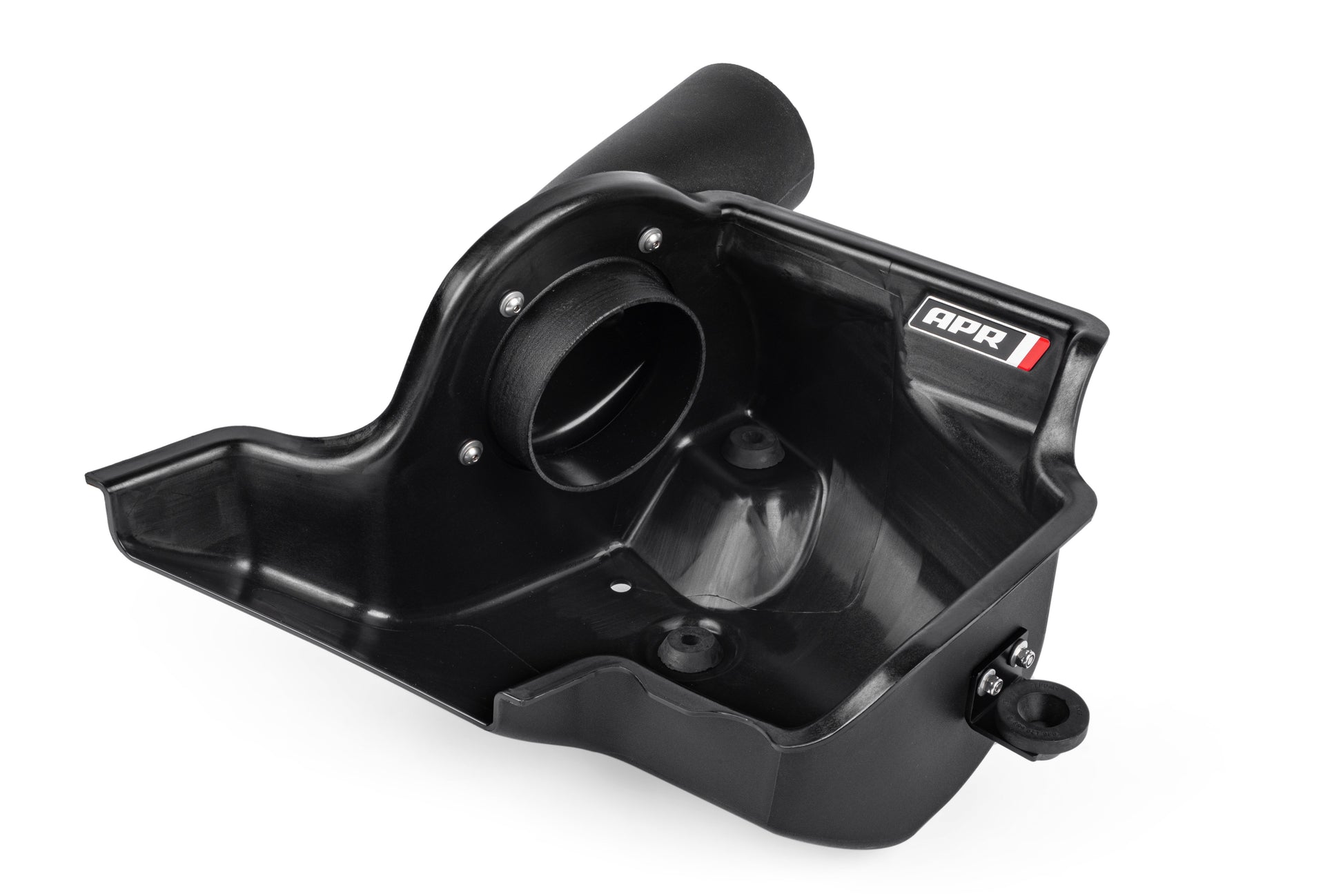

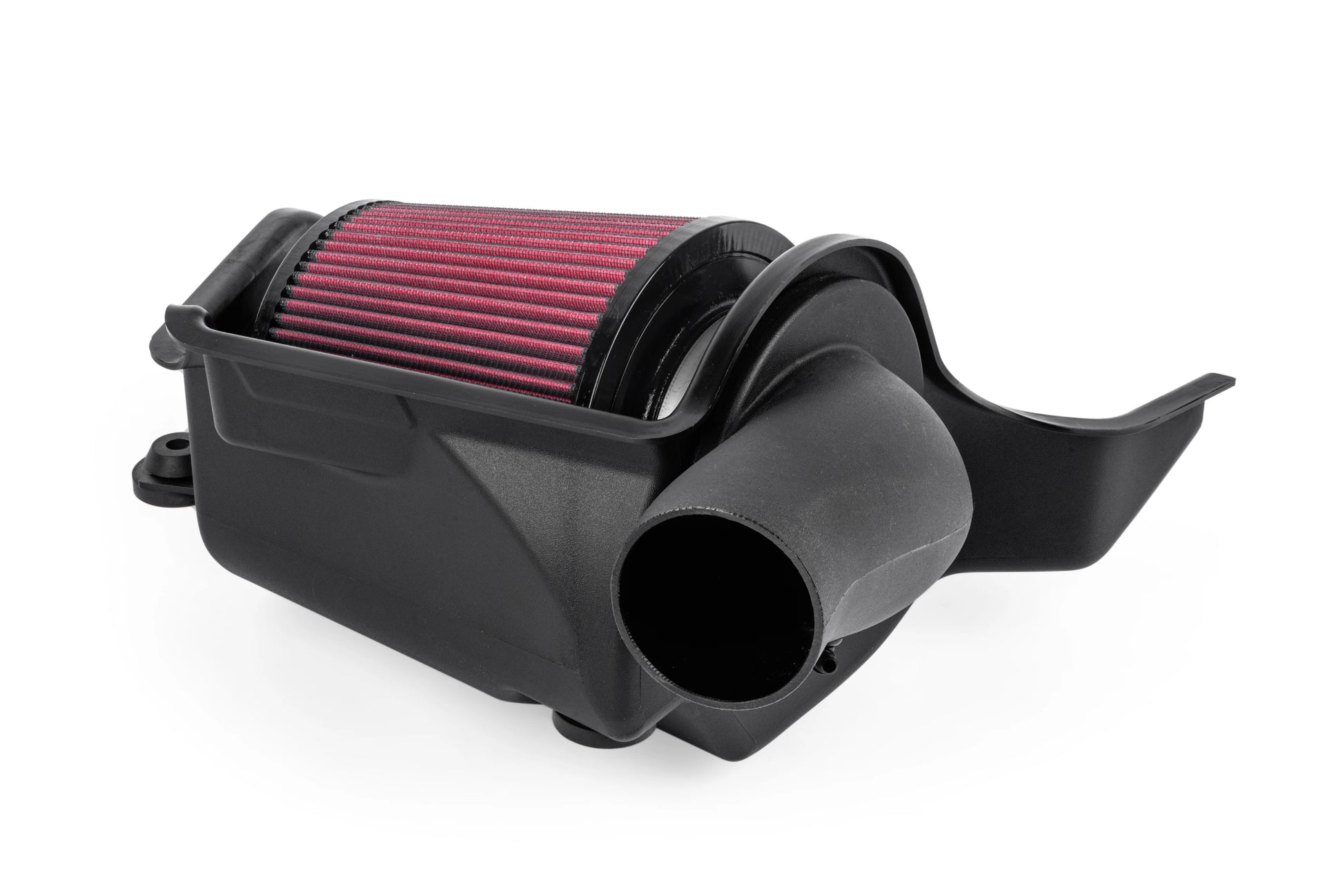

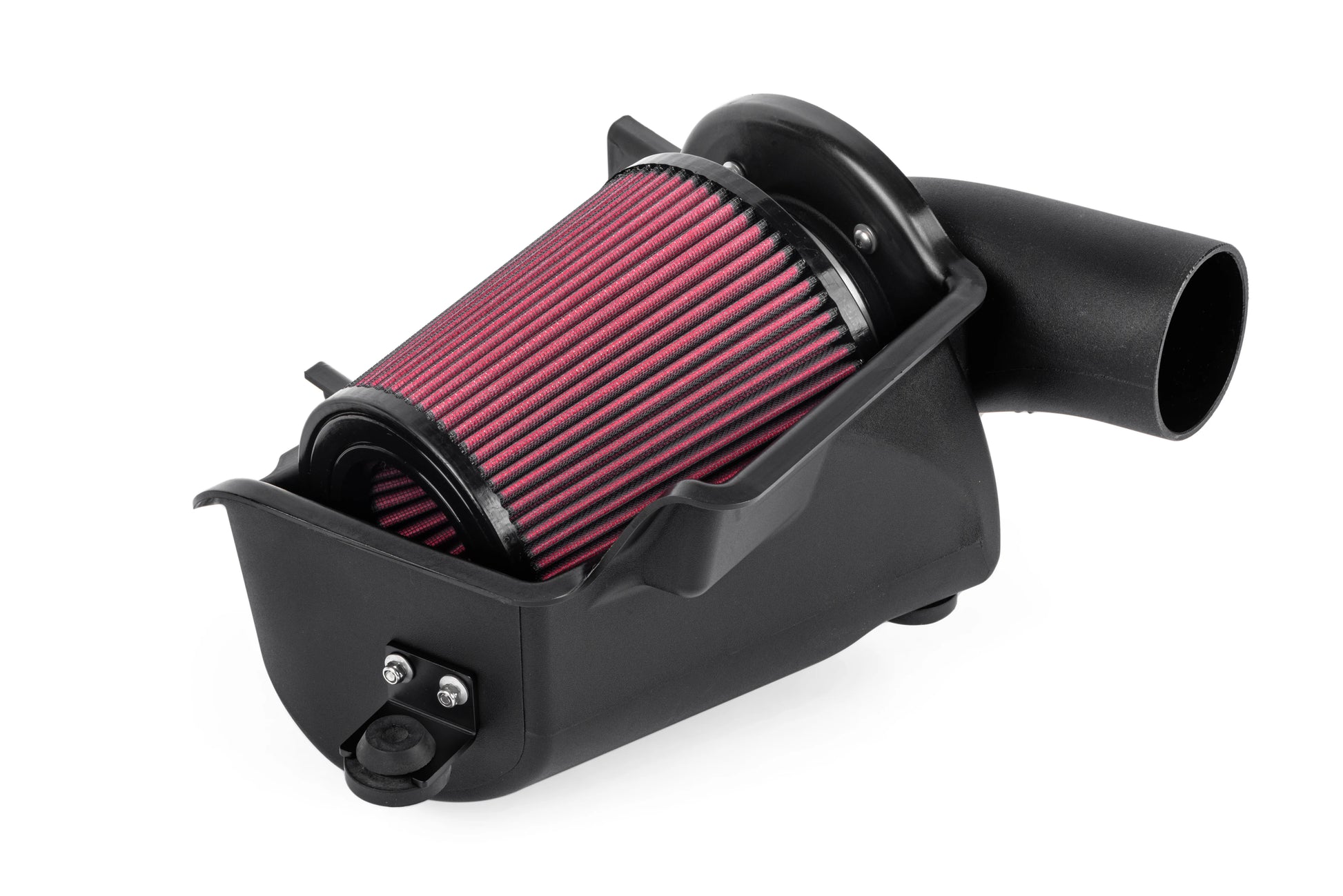

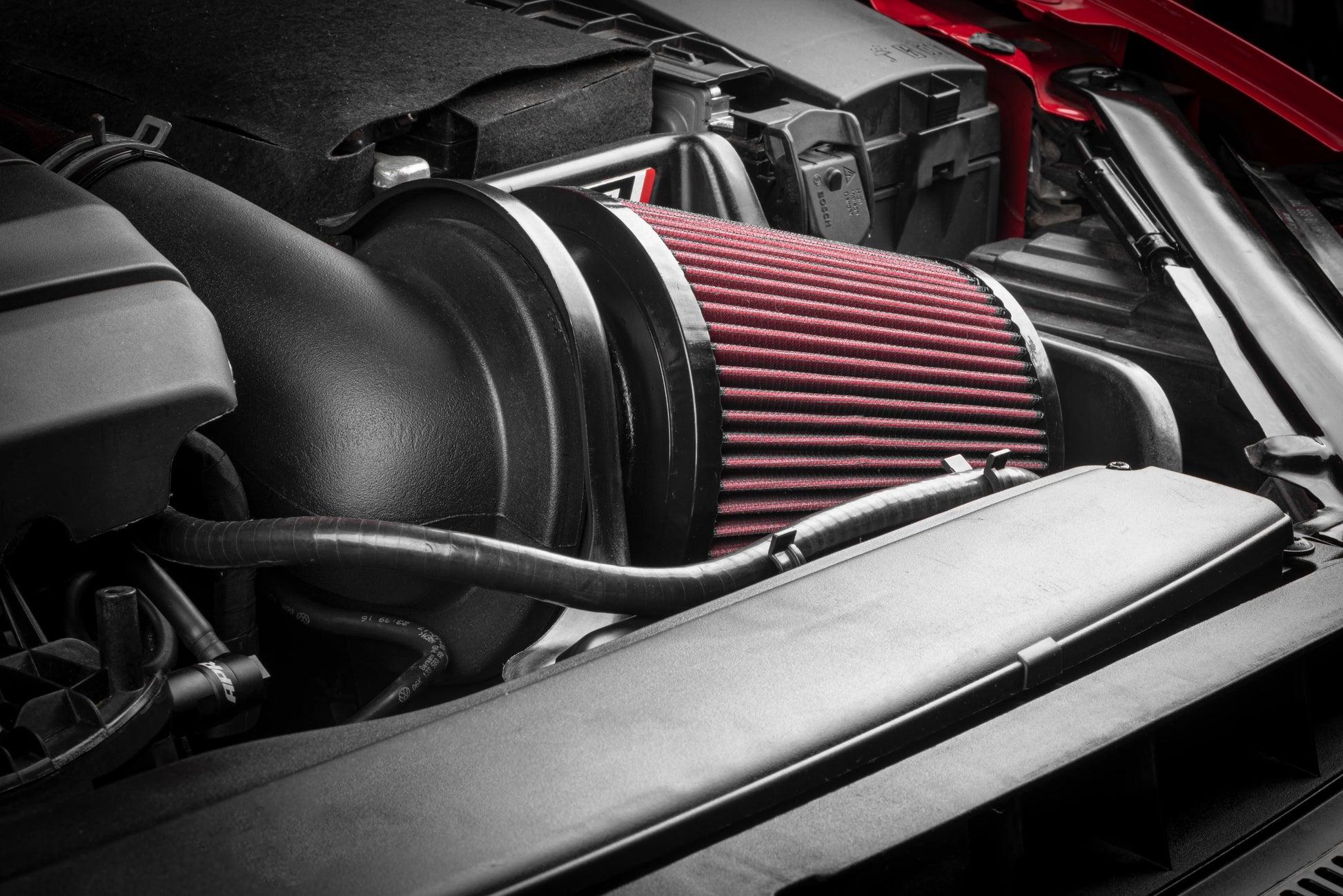

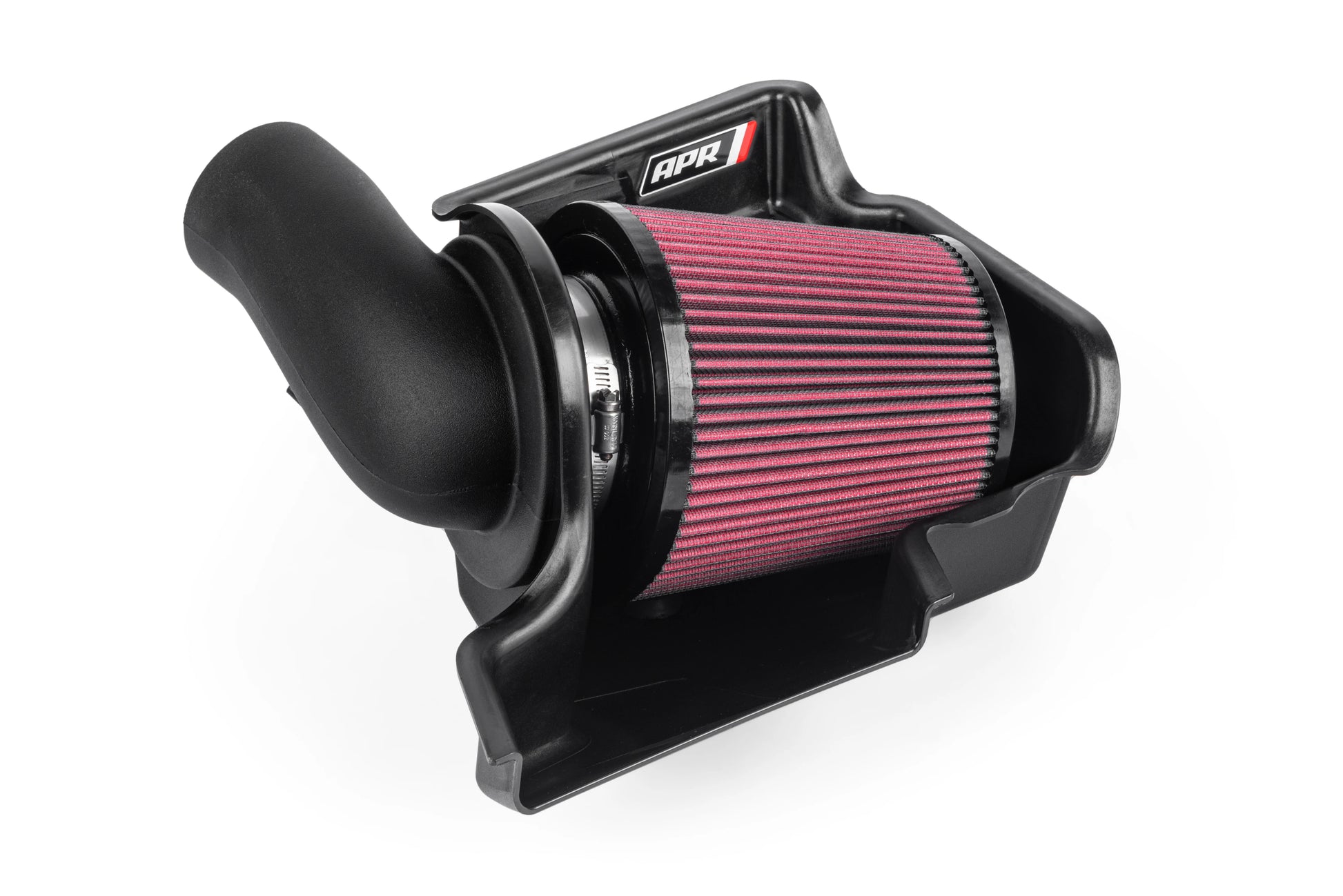

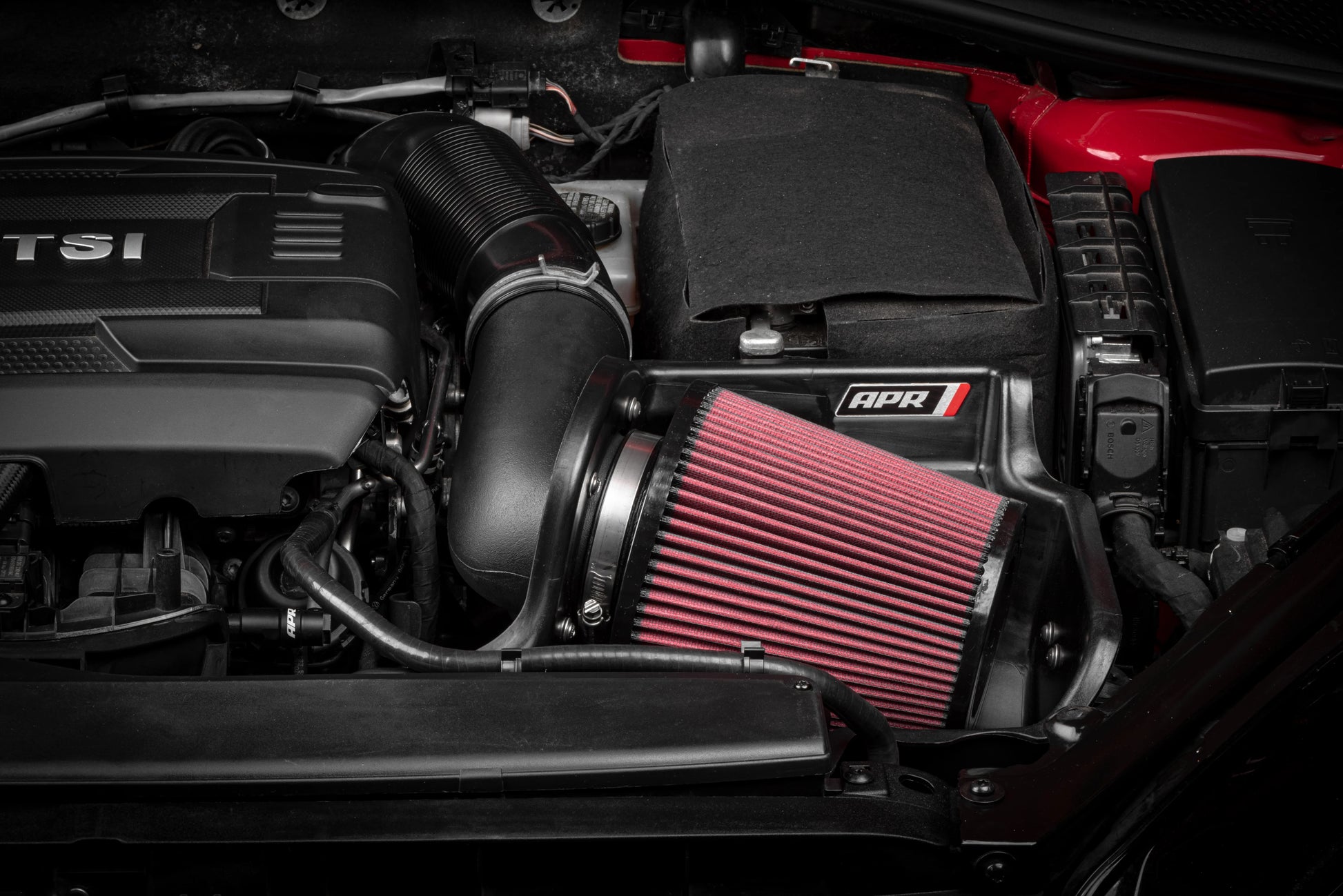

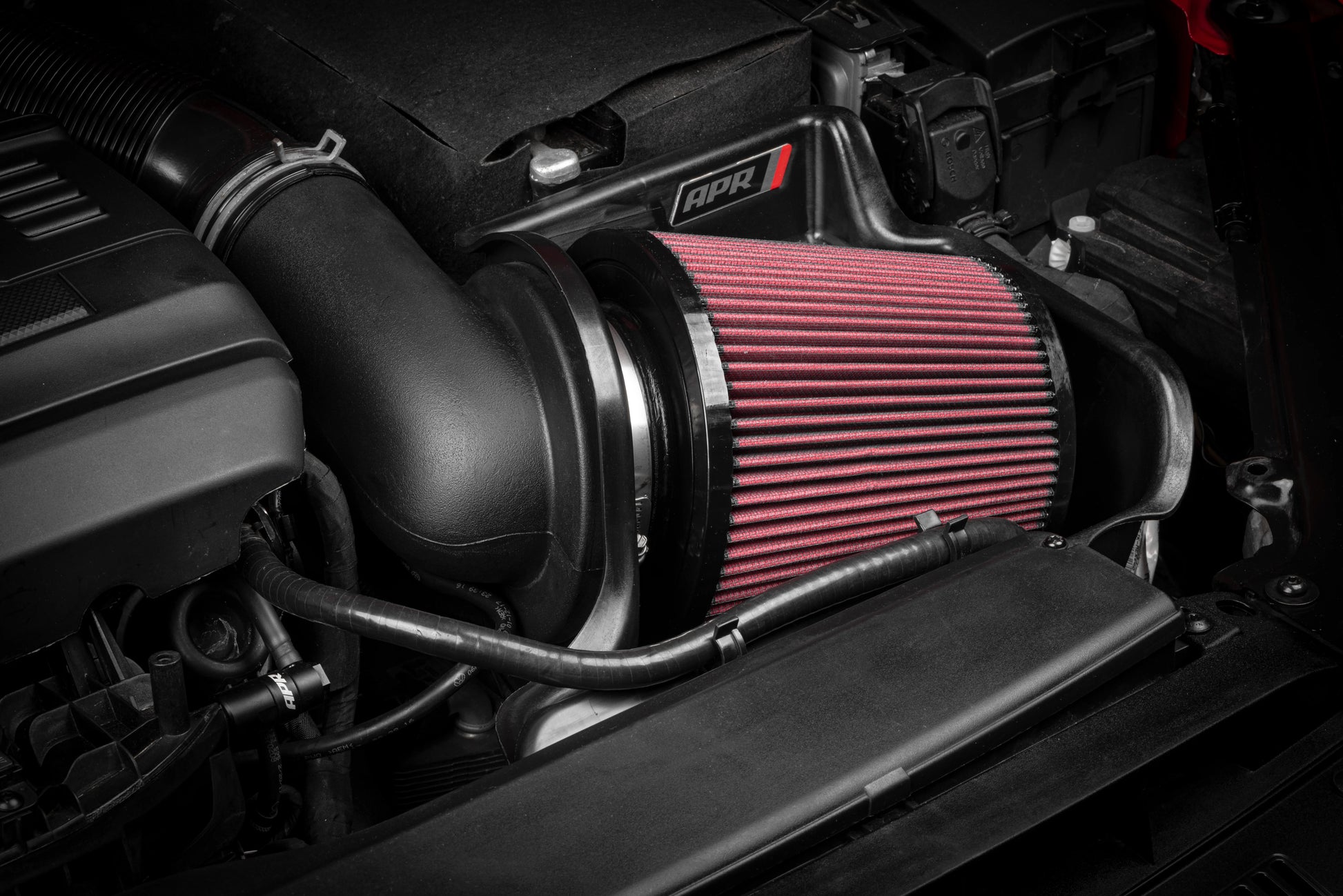

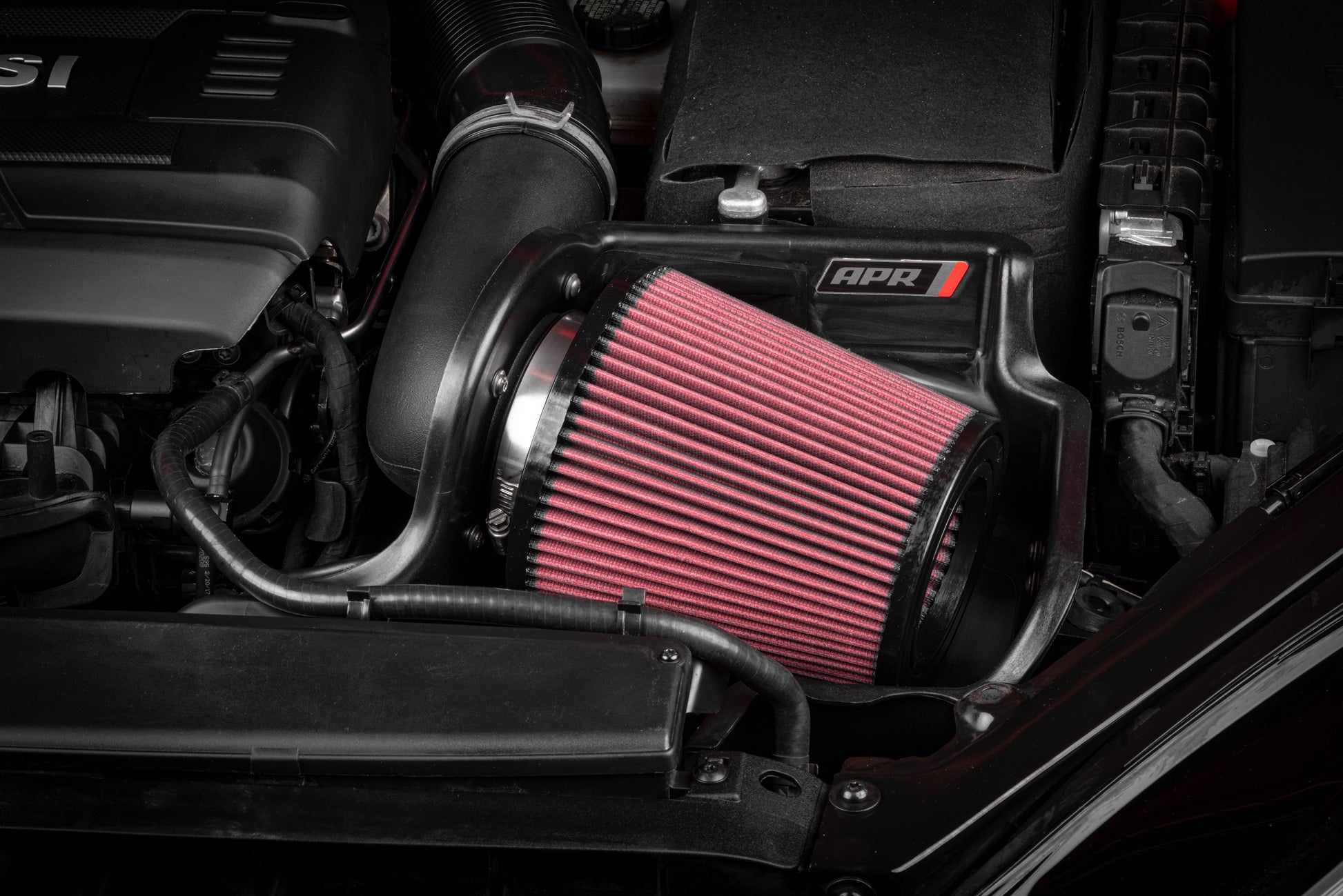

The APR Open PEX Intake System is the best dollar-per-horsepower intake system for the 1.8T/2.0T Engine. We've maximized performance and sound dramatically by reducing pressure drop and increasing airflow. This translates to more horsepower and torque, and less physical strain on the turbocharger. The system looks great, sounds amazing, and produces more horsepower and torque you can feel. Our Open PEX Intake System does away with the closed airbox design and uses a massive 7" washable and reusable cotton filter with a frontal inlet and 4" rear outlet. This was necessary to limit pressure drop across the factory system and maximize airflow, while allowing you to fully hear the engine breathe. The massive filter provides excellent filtration. By oversizing the filter, we're able to limit pressure drop without sacrificing filtration. This is made possible through the use of greatly increased filter surface area. The PEX material gives the intake an Oem feel and it allows us to make a complex and organic heat shield shape that keeps hot air pushed through the frontal radiator away from the intake tract. Lastly, PEX retains heat less than other materials such as metal, making it ideal for performance.

Features:

  • More horsepower with gains up to +12 AWHP over stock
  • More torque with gains of up to +13 AWFT-LBS over stock
  • Greatly outflows the full factory frontal airbox by 60% at 833 CFM vs 521 CFM

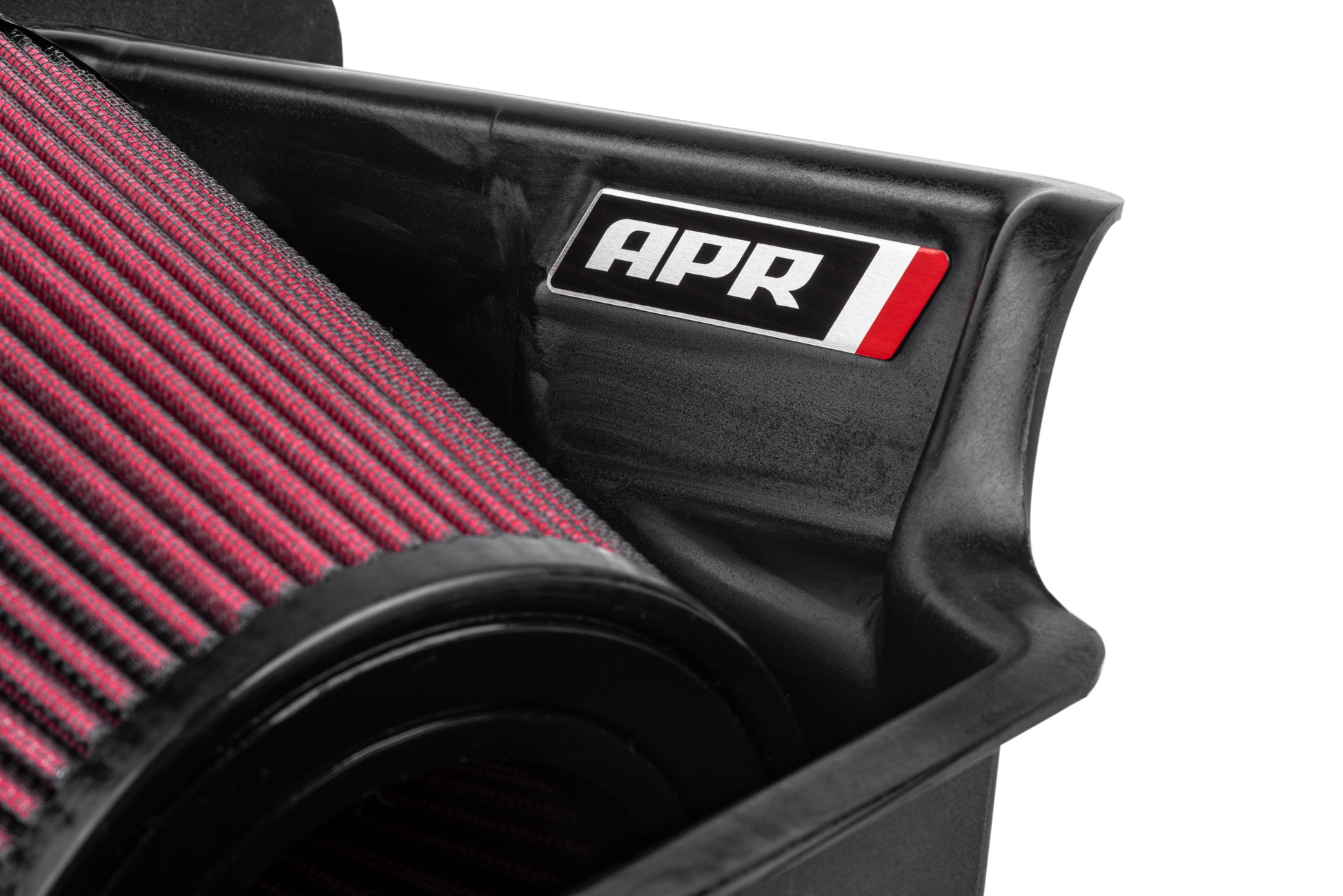

  • High heat deflection PEX construction

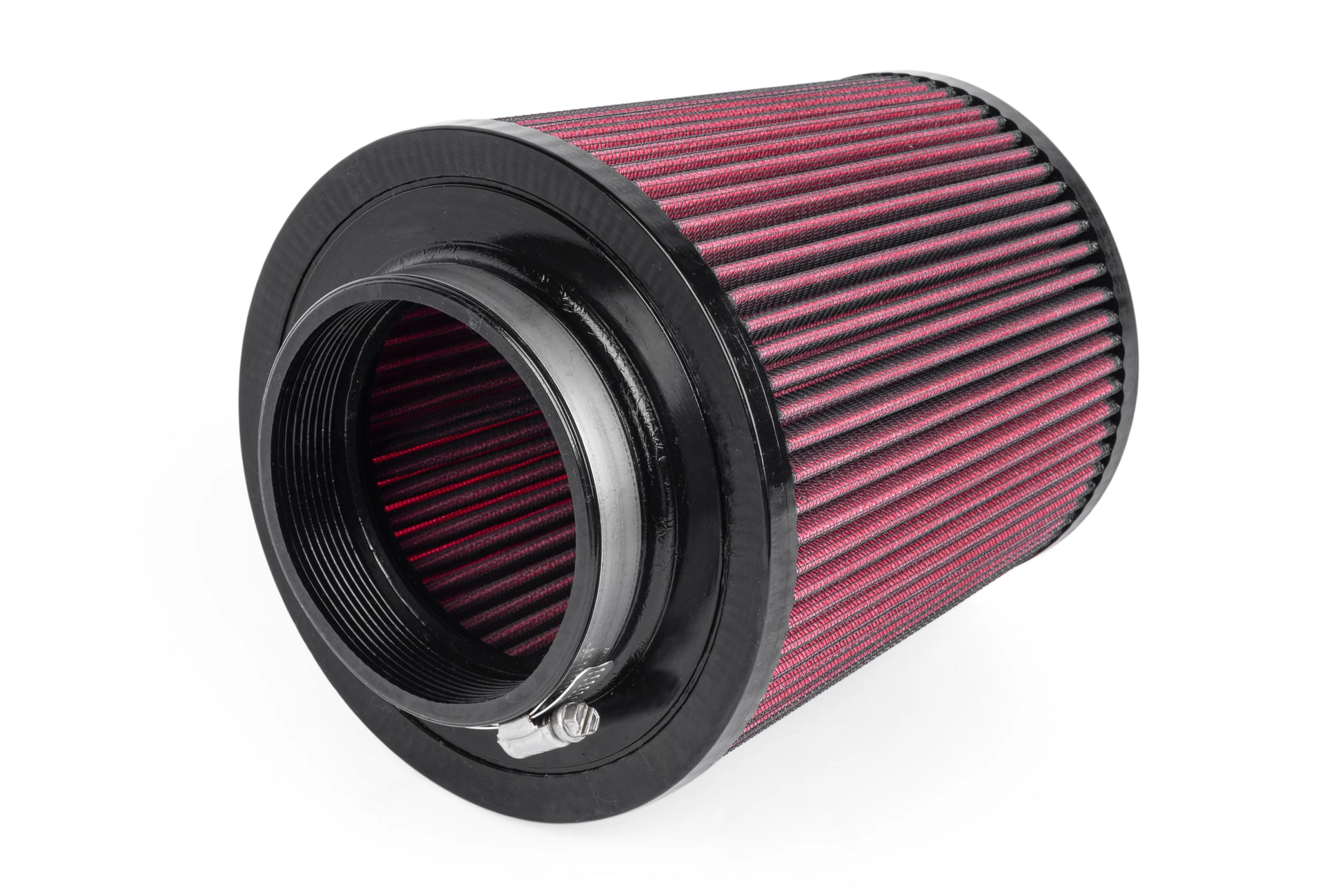

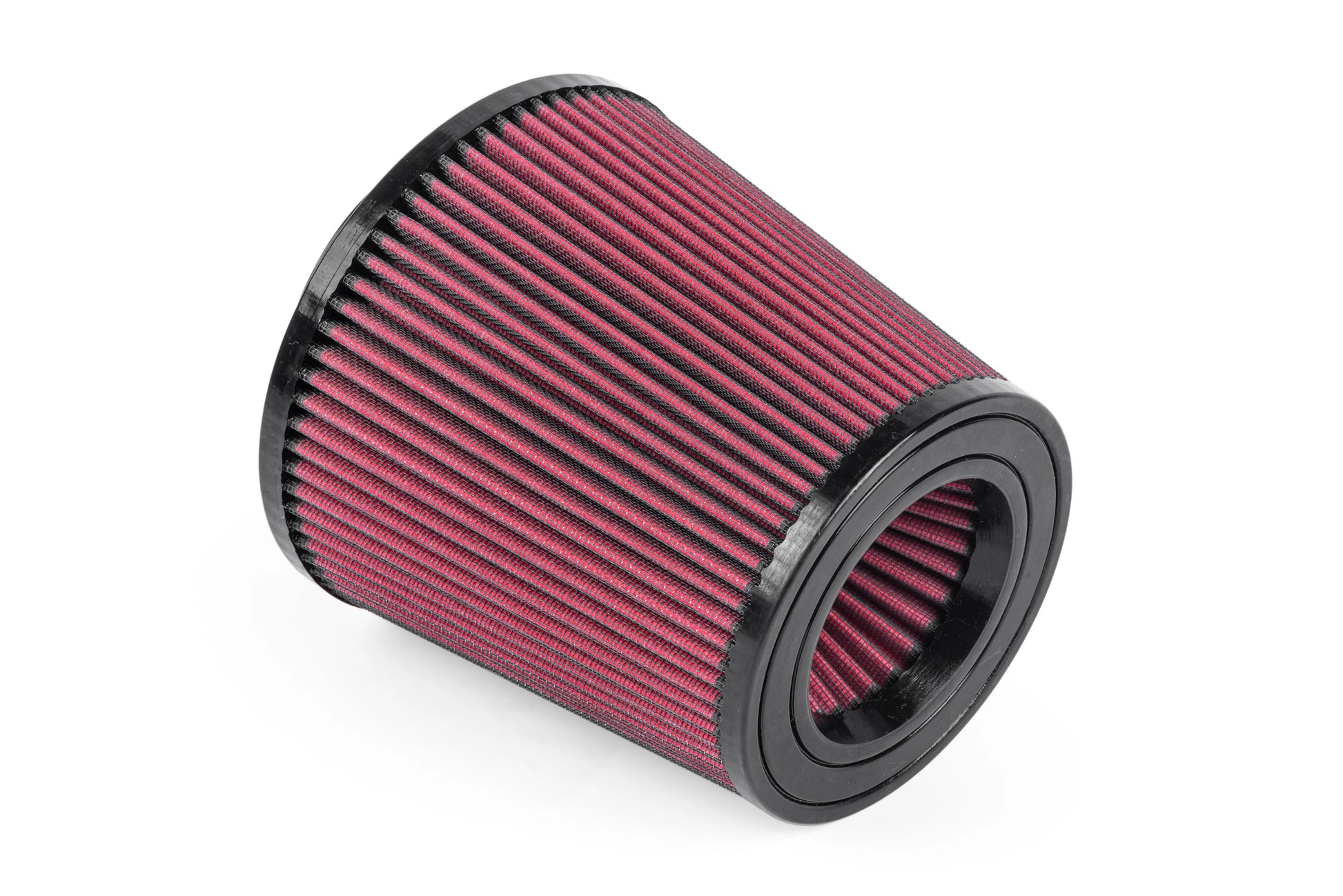

  • Massive 7” washable and reusable cotton filter with a frontal inlet and 4” rear outlet
  • Creates an intoxicating intake sound in the engine bay
  • Improves throttle response
  • Lessens pressure drop
  • Lessens strain on the turbocharger
  • Lessens heat retention compared to other materials, such as metal
  • Compatible with APR and factory rear intake tubes and turbo inlet pipes
  • Easily installs in minutes

Specs

Brand APR
C.A.R.B EO # D-782-8
Category Air and Fuel Delivery
Emission Code 1
Engine Application 1.8T/2.0T
Filter Color Red
Filter Material Pleated Cotton Gauze
Material PEX
Product Type Intake Systems
Style Open
Sub Category Fuel Injection System and Related Components
UPC 810009932710
Part Number CI100041

Service Parts

APR Replacement Intake Filter for Various APR Intake System
Part# RF100015

Emissions

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle

Tech Resources

CARB EO Document
Lists applicable vehicles and scenarios
Instructions - d-783-8.pdf
Instructions - tl100190_mqb_plastic_intake_web.pdf
Note: Models with Secondary Air Injection (SAI) require a breather filter (CI100020-A). To fit this to 2.0T Ea888.3b engines with a MAF sensor on the intake tube, use our MAF adapter (CI100051). This system is not compatible with the MS100100 intake mounted Catch Can System.
