APR - PEX Intake System - Front Airbox - 1.8T/2.0T EA888 PQ35 Platform
APR - PEX Intake System - Front Airbox - 1.8T/2.0T EA888 PQ35 Platform
SKU: CI100039
Regular price
$389.00
Regular price
Sale price
$389.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fits Audi TT 08-09, TTS Quattro 13, TT Quattro 09-15, VW Tiguan Limited 17-18, Eos 08-16, Tiguan 09-17, GTI 08-14, CC 09-17, Beetle 12-17, Jetta 08-18, Passat 08-17
Overview

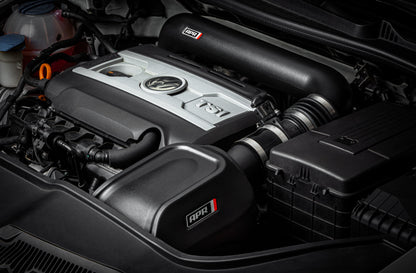

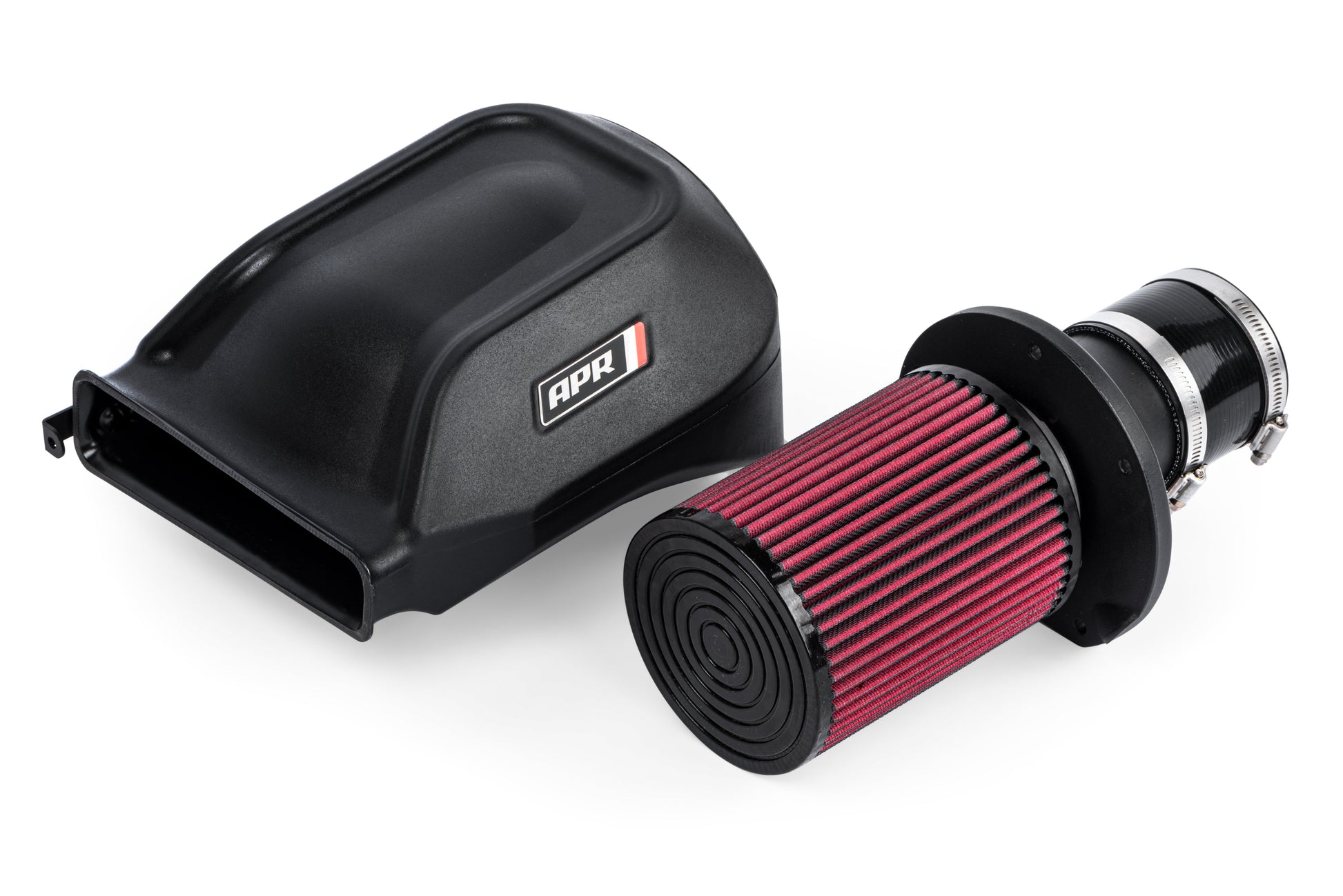

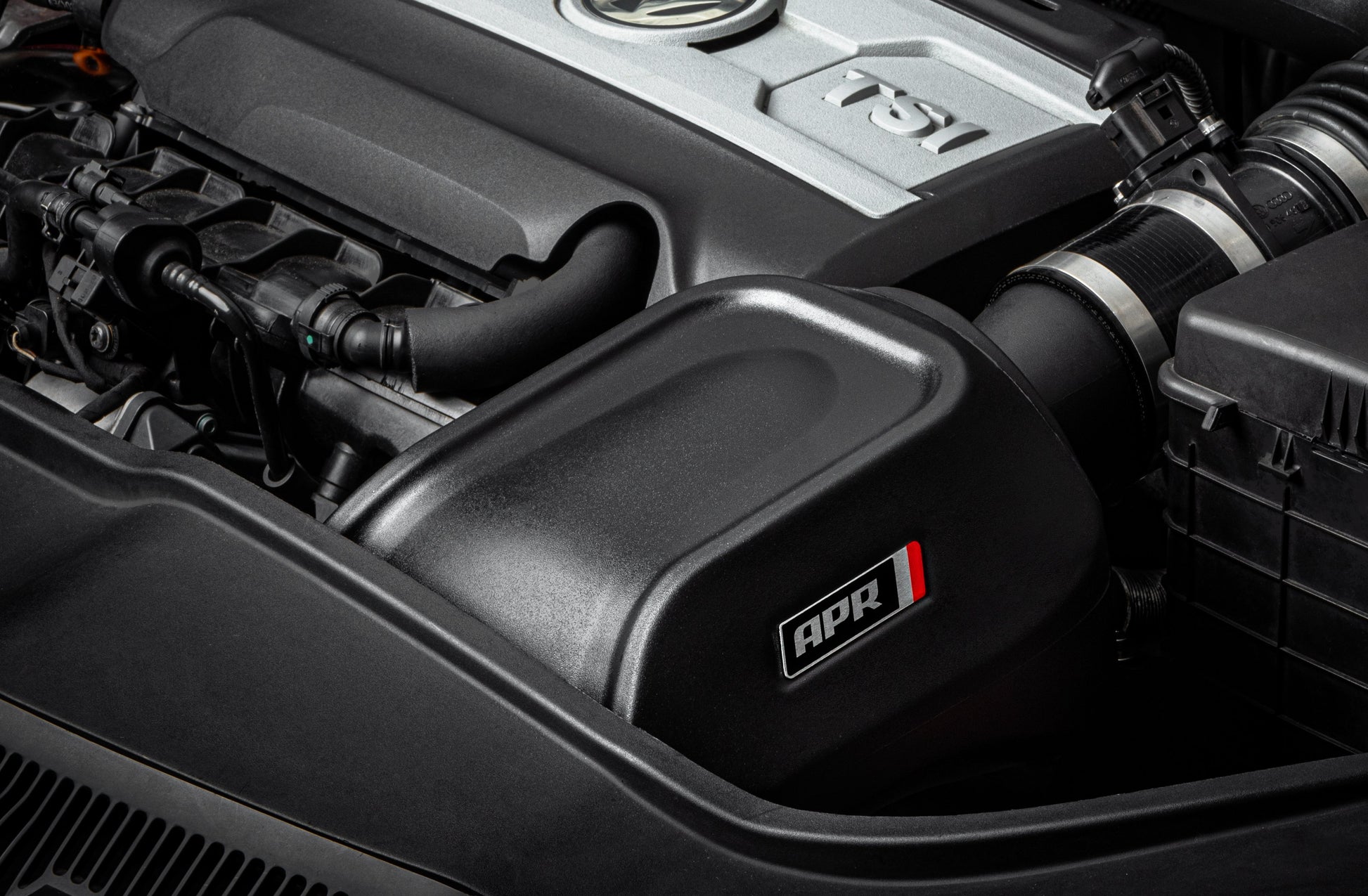

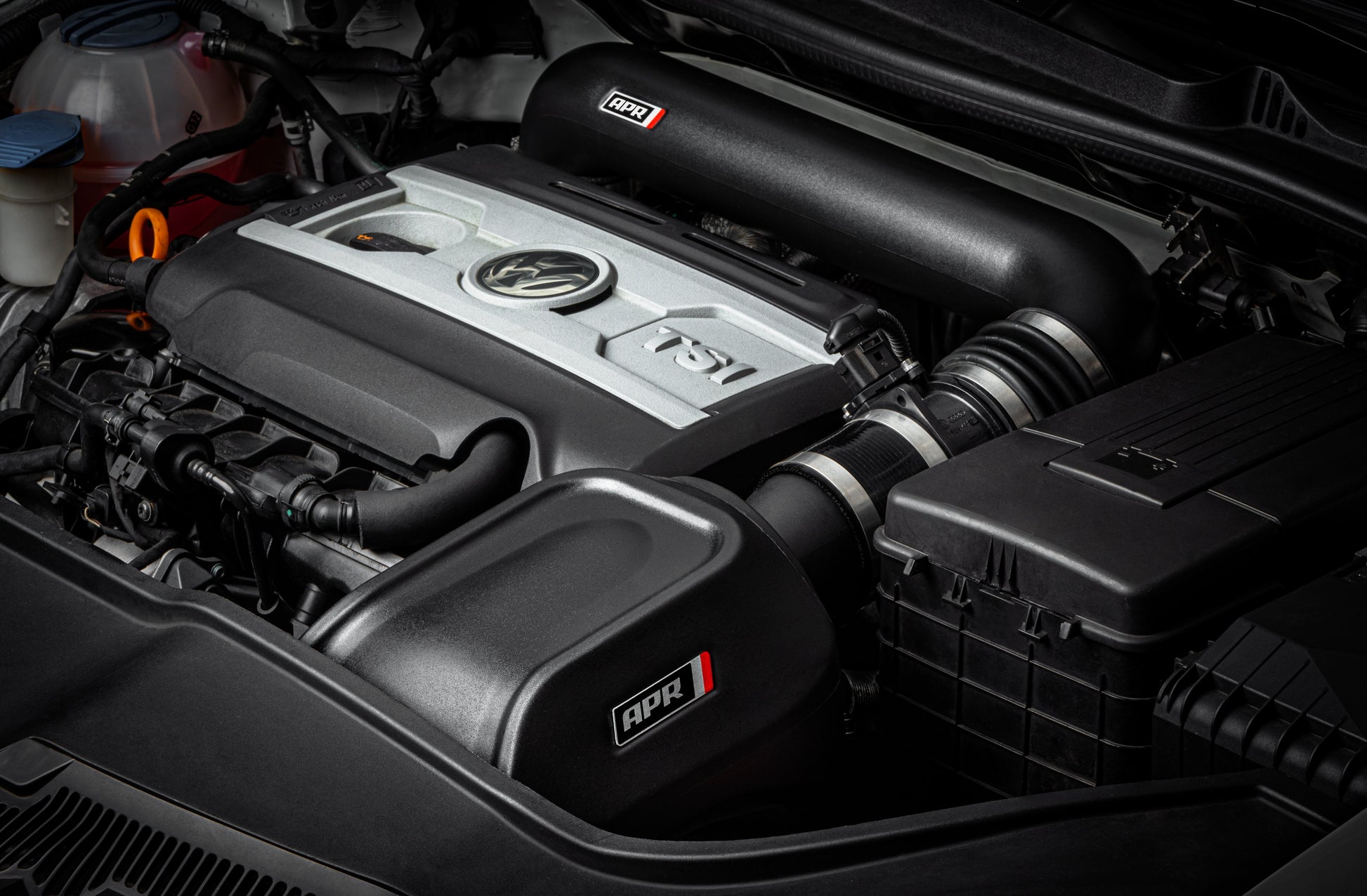

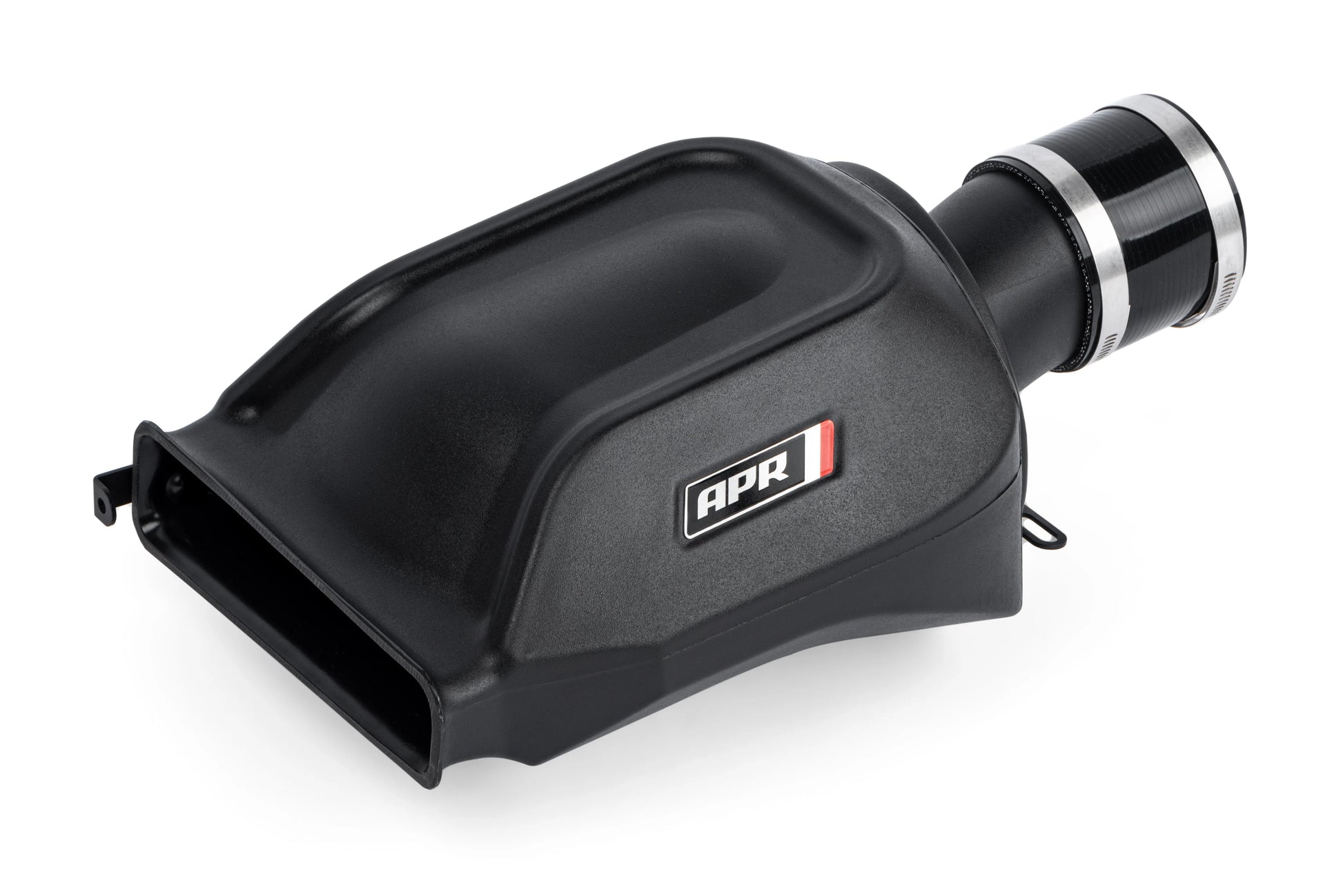

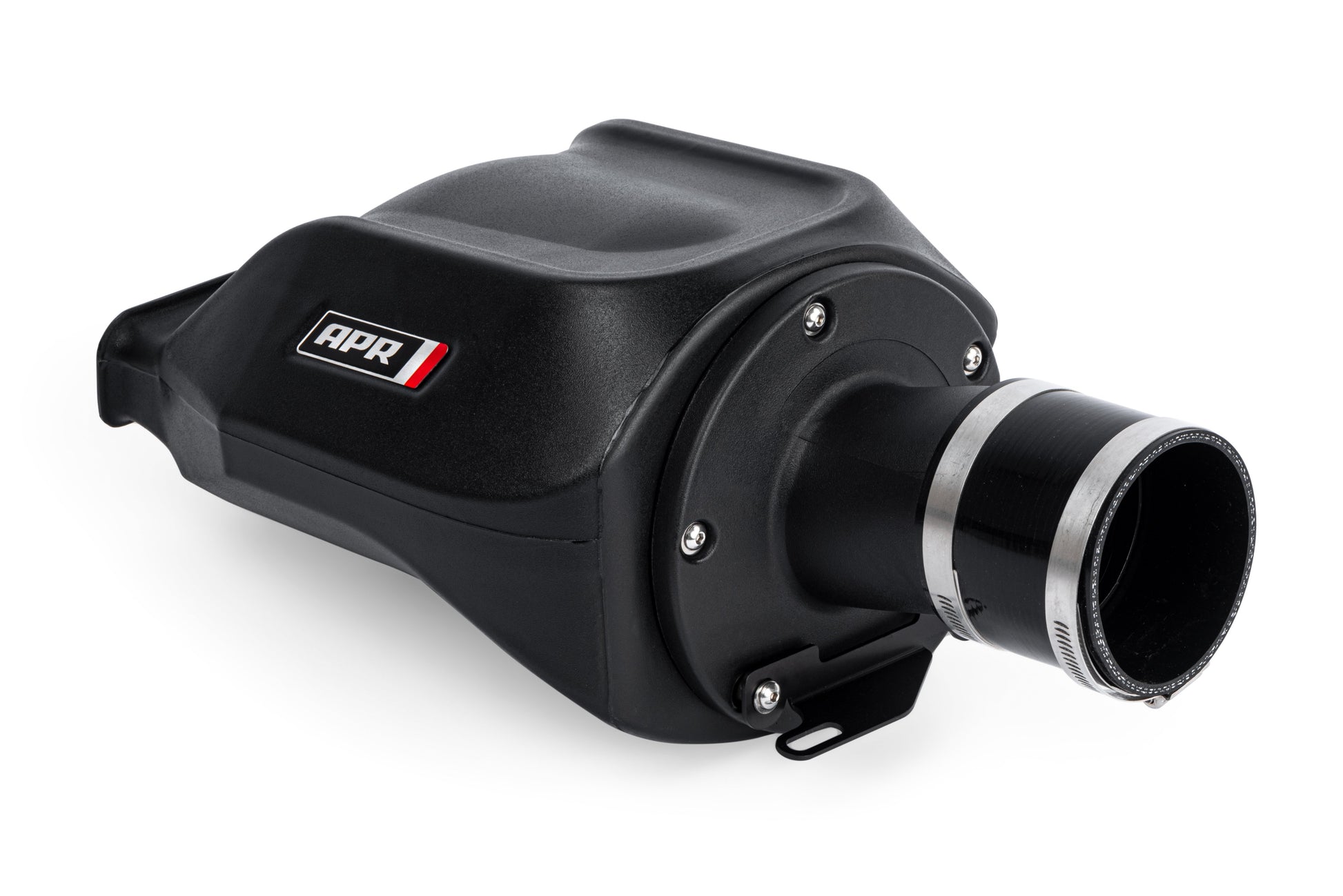

The APR Intake System lets your engine breathe! This closed design rejects power-robbing heat from the engine bay thanks to the high heat deflection material used in the intake's design. It provides an unrestrictive path for cold, dense air fed from outside of the engine bay to maximize power. We use a high flow filter that provides excellent filtration without the restrictions, which keeps the engine clean while optimizing power delivery. On the flow bench, we recorded a 31% increase in CFM over the factory airbox, and a 24% increase over the total system. This translates to a sharper throttle response, lessened strain on the turbocharger, and more horsepower and torque. The system is an excellent value. It installs in minutes, looks fantastic, delivers a sporty engine note, and is recommended at all stages of performance. The APR Intake System is modular. It connects to the factory turbo inlet piping, and provides substantial gains. Those looking to complete the system can opt for the optional APR Turbo Inlet pipe to increase flow over the smaller factory turbo inlet piping. Our inlet pipe is a continuous massive pipe that connects to the turbocharger via a port-matching silicon coupler. The PCV system conveniently connects to the intake via a billet aluminum adapter. Lastly, the system uses a flex coupler that allows adequate engine movement and flex.
Features:
- Increased horsepower and torque
- All mounting hardware included
- Better throttle response
- Enhanced engine sound
- Modular design
- Closed airbox design
- Incredible value
- High heat deflection material
- Pleated cotton gauze reusable filter
- 31% CFM improvement airbox vs airbox
- Easy to install
Specs
Brand | APR |
---|---|
C.A.R.B EO # | D-782-8 |
Category | Air and Fuel Delivery |
Emission Code | 1 |
Filter Color | Red |
Filter Material | Pleated Cotton Gauze |
Material | PEX |
Product Type | Intake Systems |
Style | Closed Airbox |
Sub Category | Fuel Injection System and Related Components |
UPC | 810009932680 |
Part Number | CI100039 |
Service Parts
APR Replacement Intake Filter for Various APR Intake Systems
Part# RF100001
Emissions
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
Tech Resources
Please note, the TT requires an intake adapter (CI100020-D). The CC, Passat, and Tiguan require an intake adapter (CI100035-C). The Beetle, Jetta, and Passat, all with the EA888 Gen 3 Engine, require an intake adapter (CI100020-E). Models with Secondary Air Injection (SAI) require a breather filter (CI100020-A).
