CVF - Aluminium Intercooler Charge Pipe - 2015-2023 Mustang 2.3L EcoBo

SEE FEEDBACK FROM THE ECOBOOST MUSTANG COMMUNITY HERE:

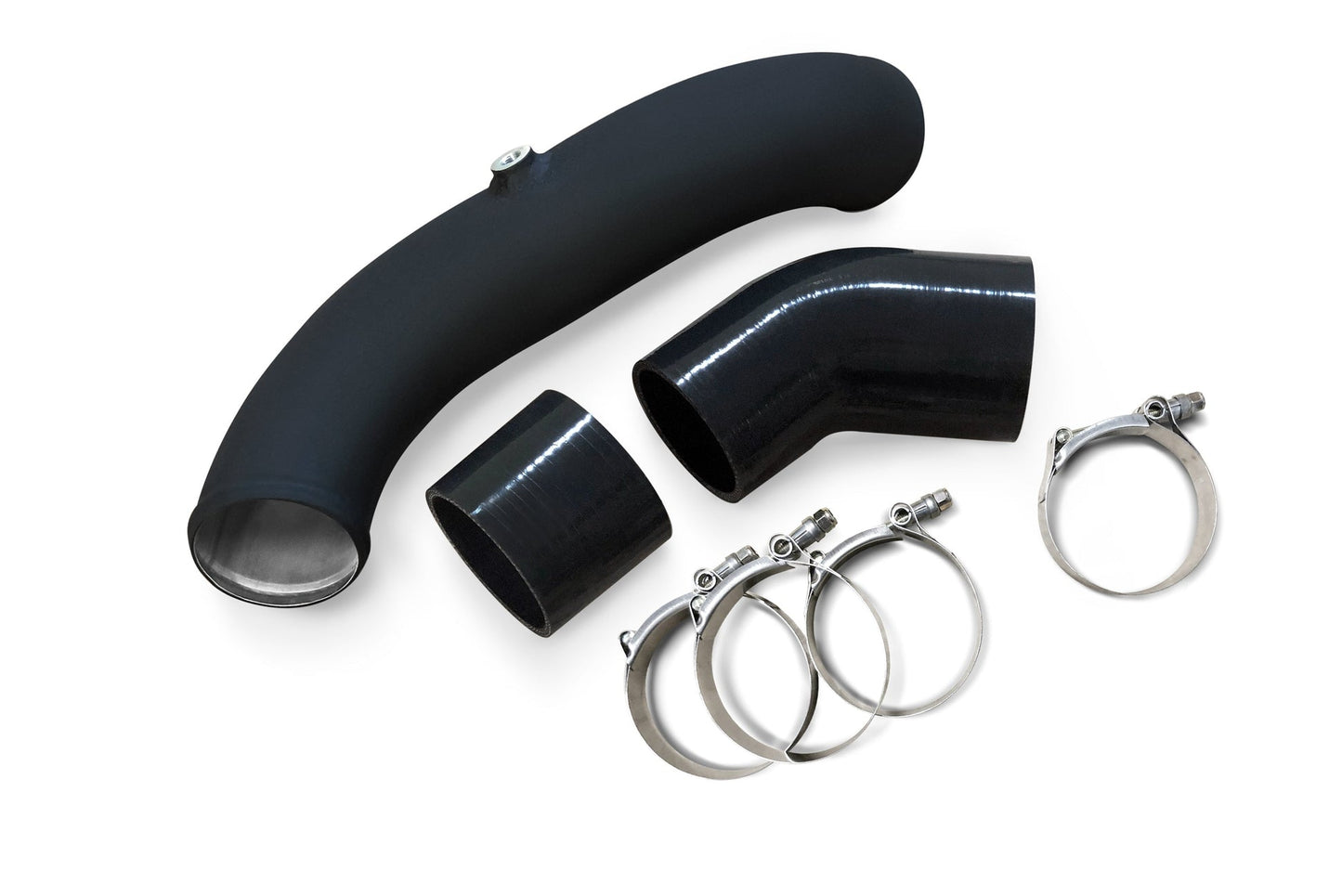

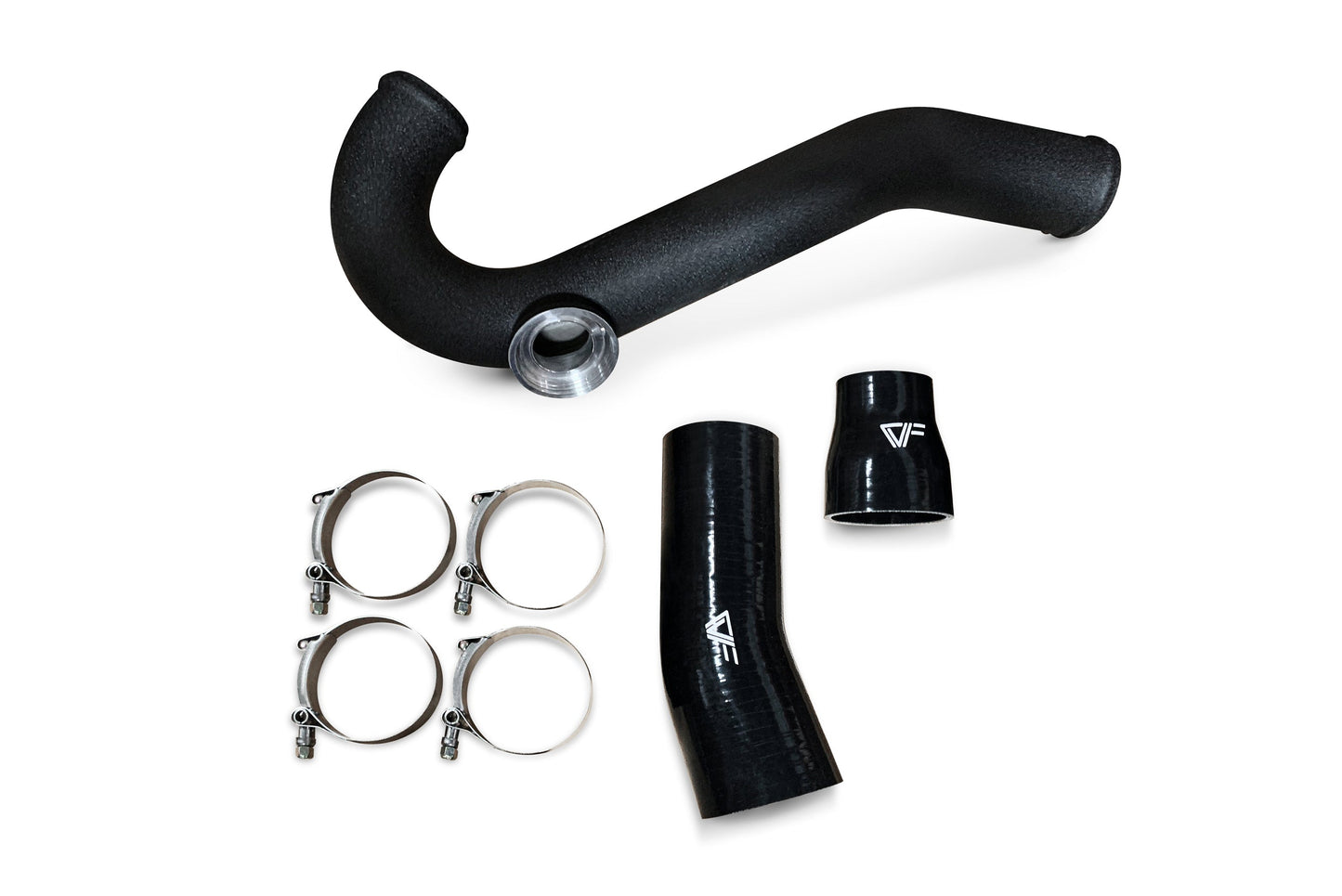

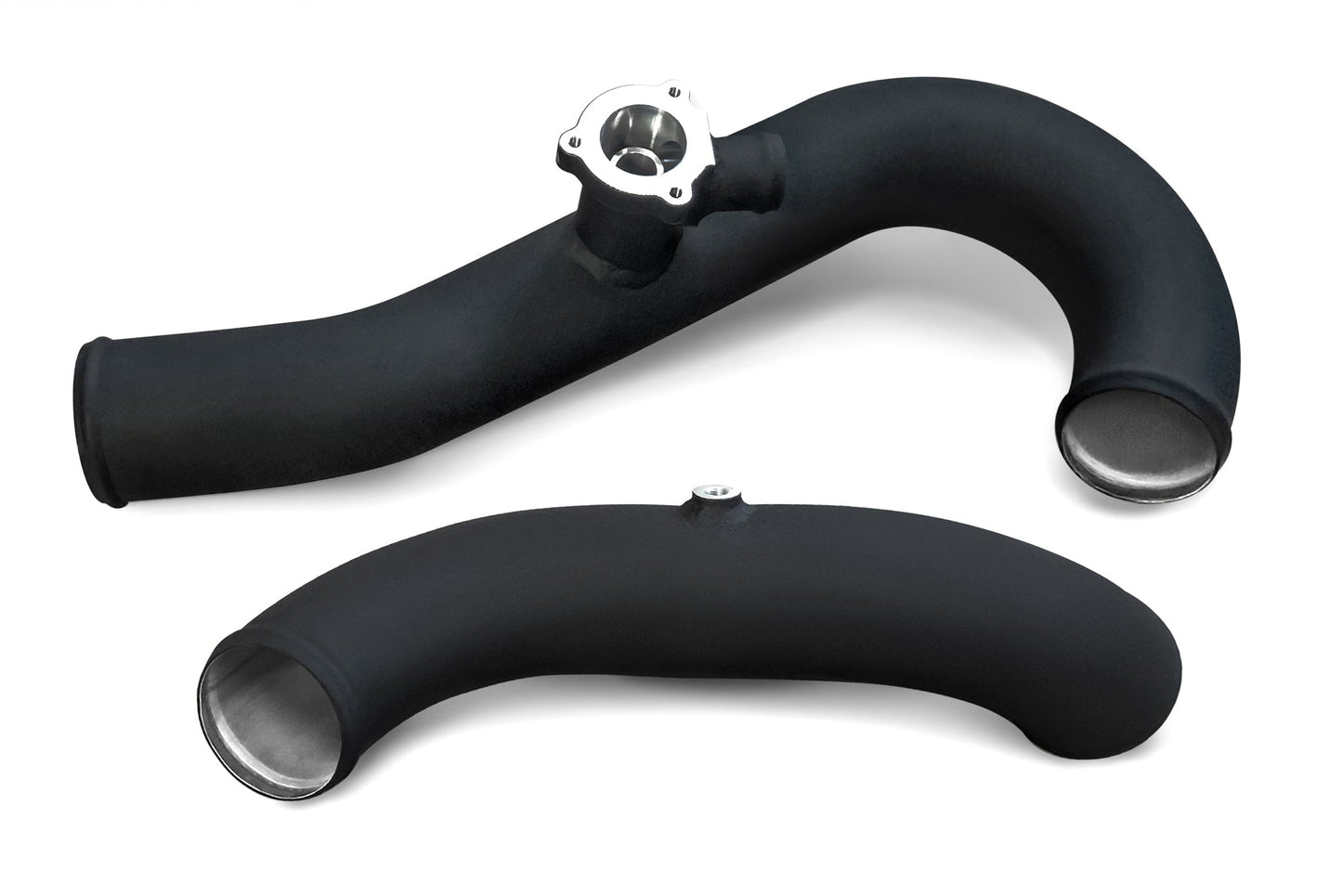

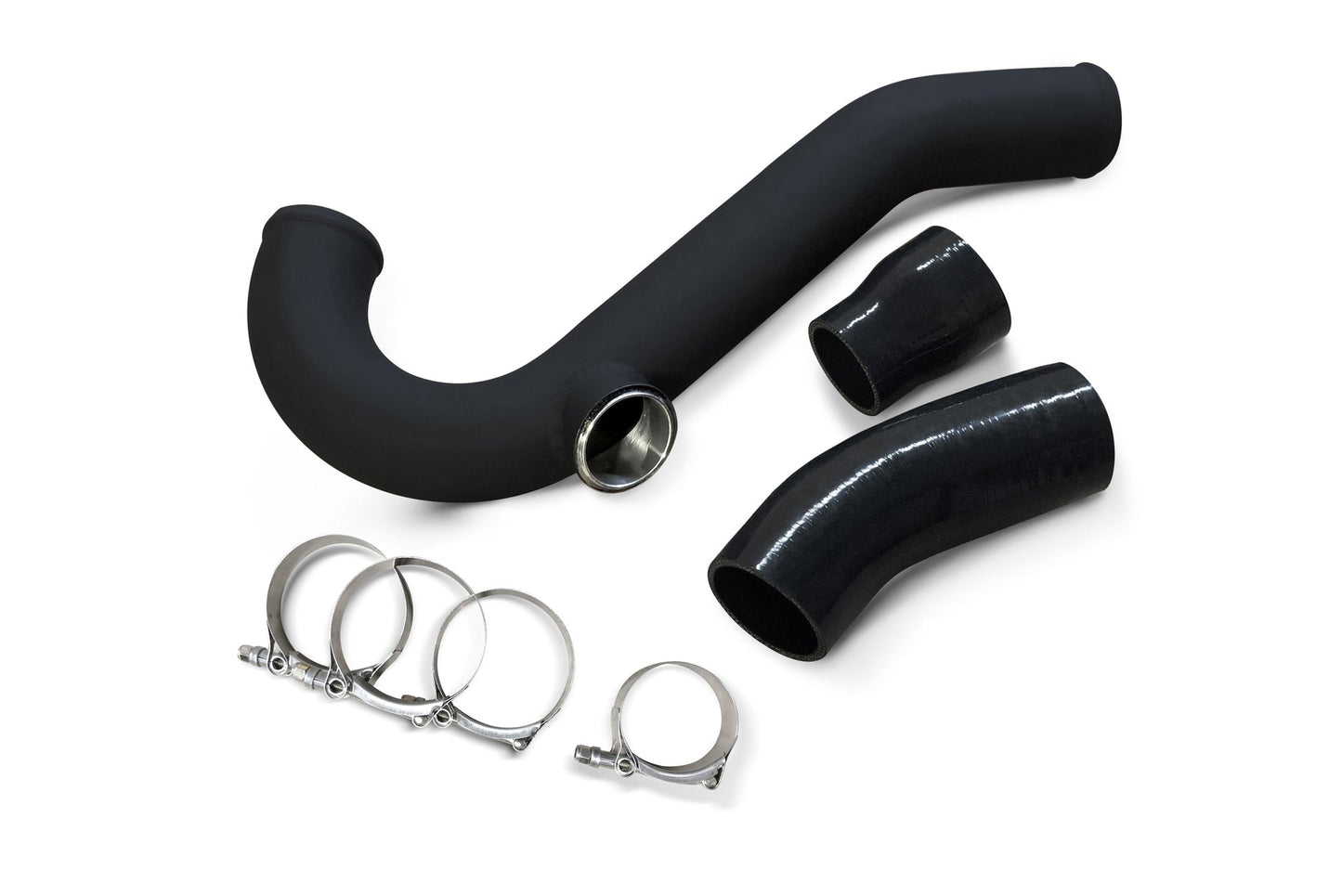

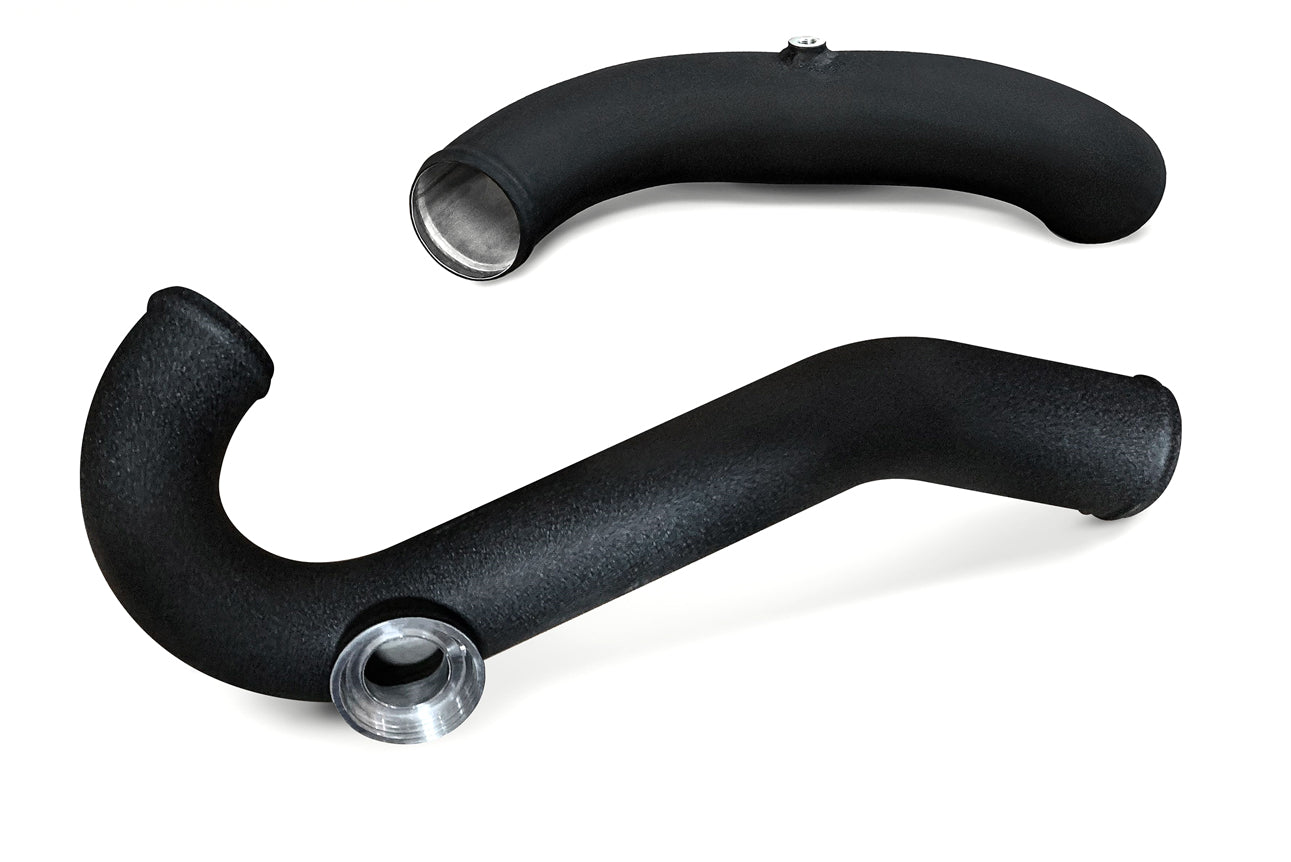

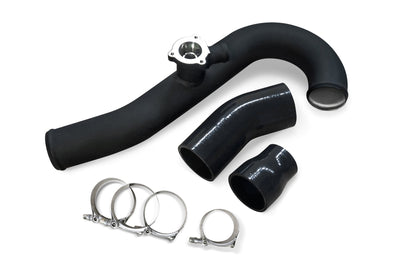

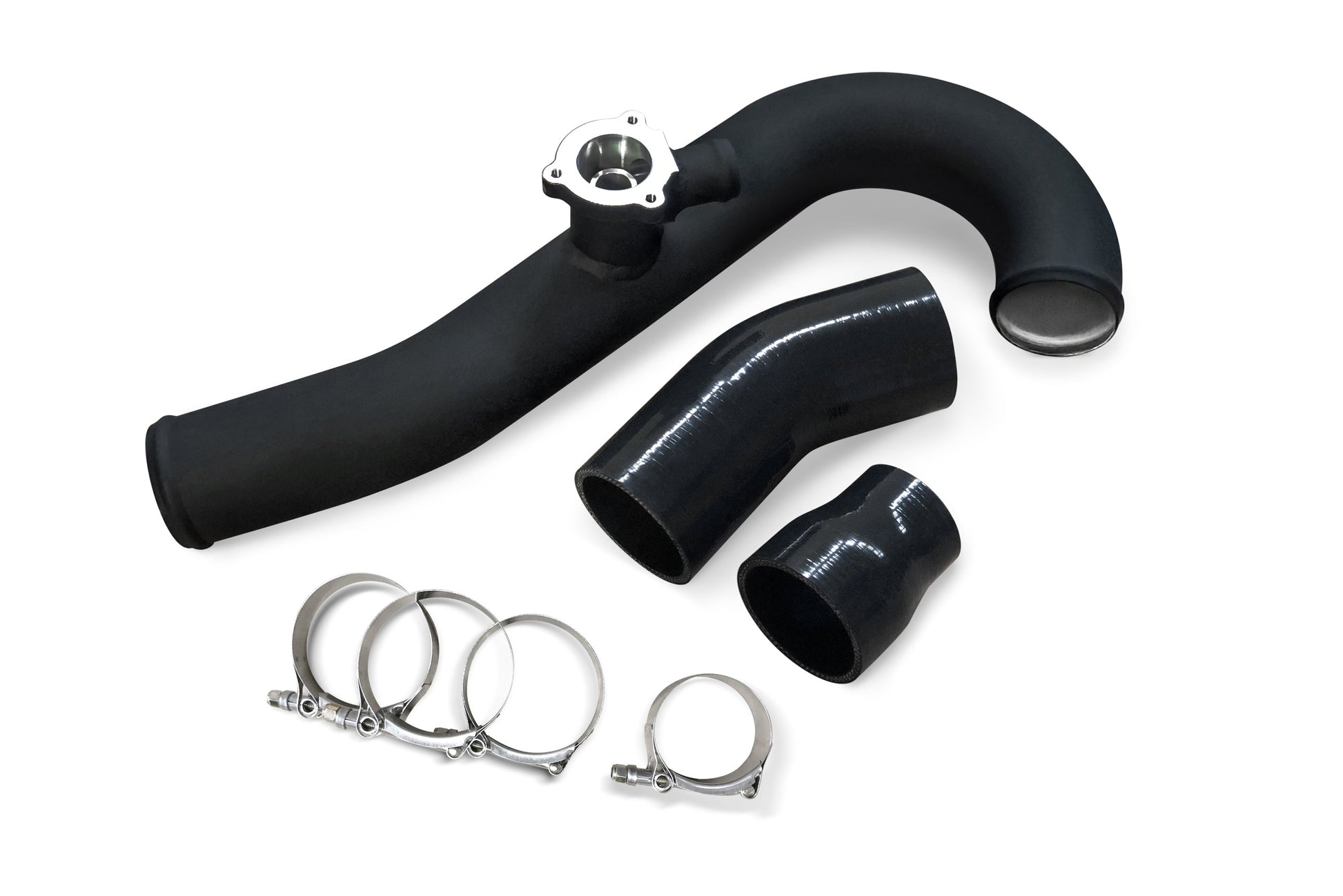

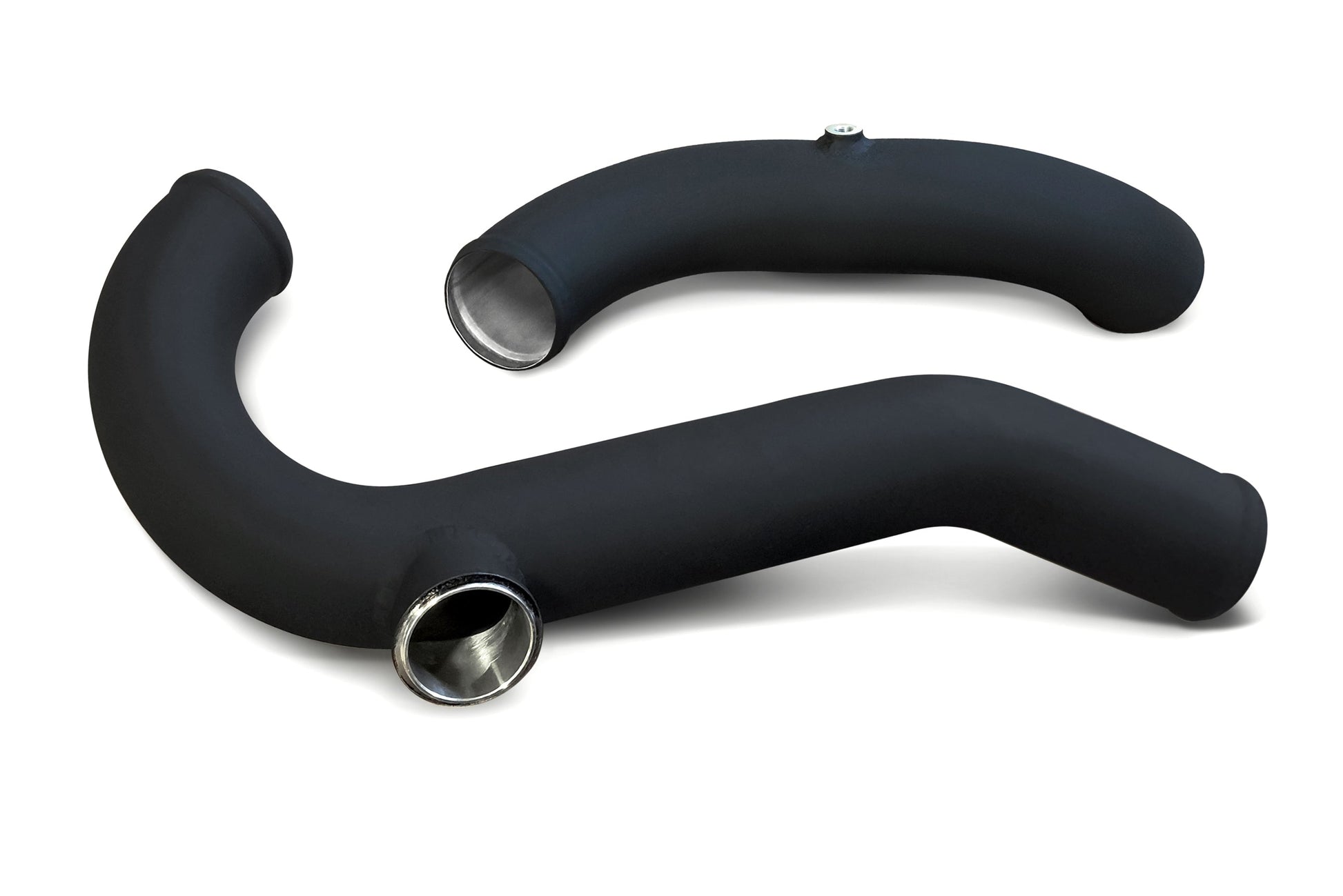

Direct bolt-on replacement
2.5" hot-side piping and 2.75" cold-side piping in wrinkle black finish
Mandrel-bent aluminum construction features significantly improved thermal capacity and 1/3 of the weight when compared to stainless steel alternatives
Includes heavy-duty t-bolt clamps and ultra-resistant 4-ply couplers
Designed for use with all aftermarket or stock intercoolers
CNC-machined DV flange (hot-side pipe), TiAL / Turbosmart Race Port TS-0204-1142 flange (hot-side pipe) or HKS flange (hot-side pipe)
1/8th in. NPT bung (cold-side pipe)
CVF Lifetime Warranty

IMPROVES PERFORMANCE

The Intercooler Charge Pipe Kit designed to improve the performance of your EcoBoost Mustang's turbo by improving the performance of your intercooler. This kit replaces the weak stock rubber hot-side and the restrictive cold-side piping with mandrel-bent aluminum tubing for smoother airflow.

QUALITY CONSTRUCTION

The 2.5" mandrel-bent aluminum Hot-side tubing features a CNC-machined BPV (bypass valve) flange. The mandrel bends allow for smooth air flow and the 4-layer silicone couplers with ultra-resistance fibers offer enhanced tolerance against heat and pressure.

Manufactured from lightweight 2.75" mandrel-bent aluminum tubing, the cold-side pipe features a 1/8th in. CNC-machined NPT bung (comes plugged).

STRAIGHTFORWARD INSTALLATION

Designed to install easily with basic hand tools, this Charge Pipe Kit requires no extra modifications and should only take you about 45 minutes to swap out. Complete with all necessary t-bolt clamps and ultra-resistant 4-ply couplers, this kit allows for a quick install.

APPLICATION

This part installs on the following vehicles:
