J&L - Oil Separator 3.0 PCV Side - 2024 Mustang GT 5.0

J&L - Oil Separator 3.0 PCV Side - 2024 Mustang GT 5.0

SKU: 3091P-B
Regular price $169.00
Regular price Sale price $169.00
Sale Sold out
Shipping calculated at checkout.
Finish
Quantity

The S650 Mustang GT brings a new world of performance with it's 480+ Horsepower stock.  Keep your 5.0 intake tract clean for maximum performance and peak effiency with our plug-N-play oil separator.

Our oil separators are custom designed to fit your Mustang perfectly and come with everything you need for a great looking installation.

We also have a lifetime warranty on all our oil separators, so you can rest easy that you are buying the best oil catch can in the world!

APPLICATIONS THIS FITS:

Years Model Engine
2024-2026 Ford Mustang GT 5.0L
2024-2026 Ford Mustang Darkhorse 5.0L

EASY INSTALL
Easy Plug & Play installation (see Instructions).


J&L 3.0 Oil Separator Specs:

Capacity 3 OZ
Construction Solid 6061 Billet Aluminum
Installation OEM Style Quick Connect, Plug-N-Play
Manufactured USA
Warranty Limited Lifetime

How does it work?

During the process of venting crankcase pressure back through your intake track, large amounts of oil, in the form of vapors, intake tube, intake manifold runners and even dilute your gas, lowering its octane level. This happens on all engines and is even worse with forced inducted vehicles (supercharged and turbocharged) as crankcase pressures are increased. To combat this, we have developed an oil separator of our own design. Milled from solid billet aluminum this is a rock-solid piece. It has a knurled tank base for easy removal to drain the spent oil and an O-ring seal to prevent any leaks.

Filtering consists of a fine mesh stainless steel filter that traps fine oil vapors and releases them once heavy enough to fall.  By the time the oil gets through the filter, it's too heavy to be passed on into the intake. The tank holds 3 oz of fluid, while that may not sound like a lot, you shouldn’t see that much oil in your PCV system. Check the oil separator after 1000 miles of driving. Most applications can make it 2500-3500 before filling the unit but every vehicle is different!

WHY J&L?
Our Oil Separators are easy install, service and flat out work! Many use OEM hoses or come complete with all hoses, custom brackets and hardware for an OEM look. Retain stock hose if you ever return to stock.



*This product is NOT CARB (California Air Resource Board) Exempt. It is not for legal sale or use in the state of CA or any other states adopting CA emission standards and require a CA Executive Order (EO) number. Any orders placed for this item with a CA ship to address will be cancelled.

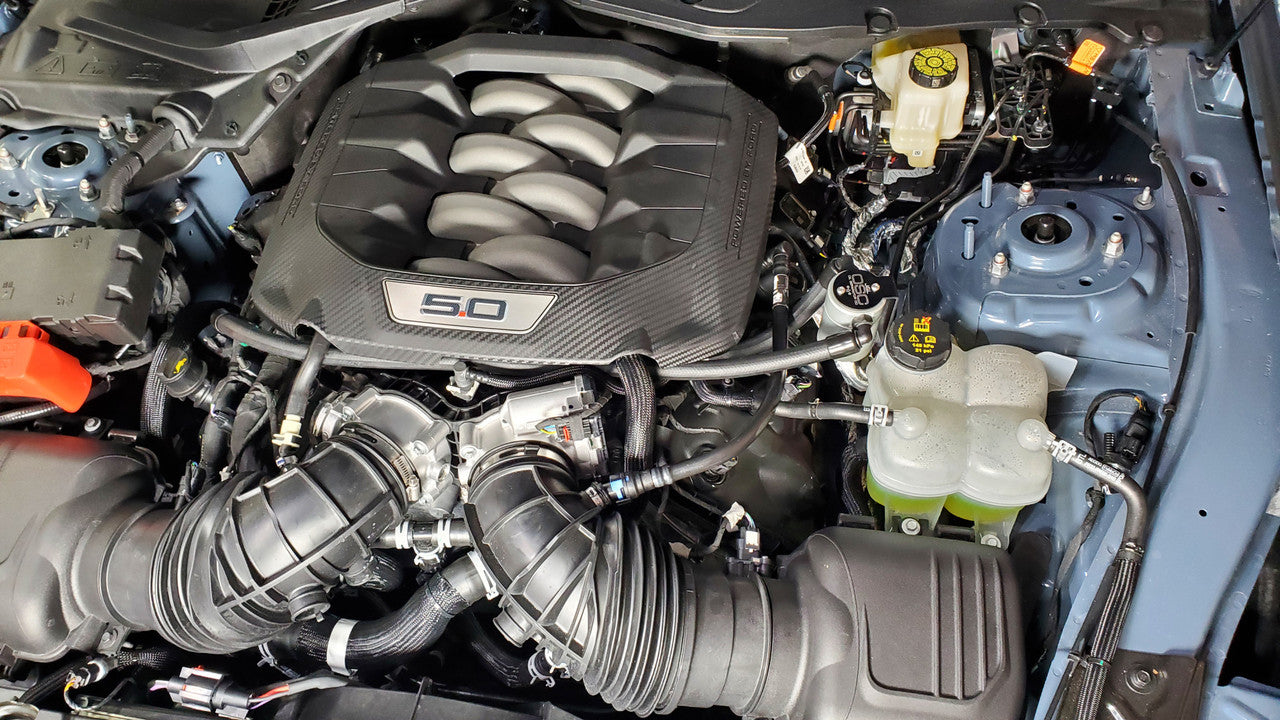

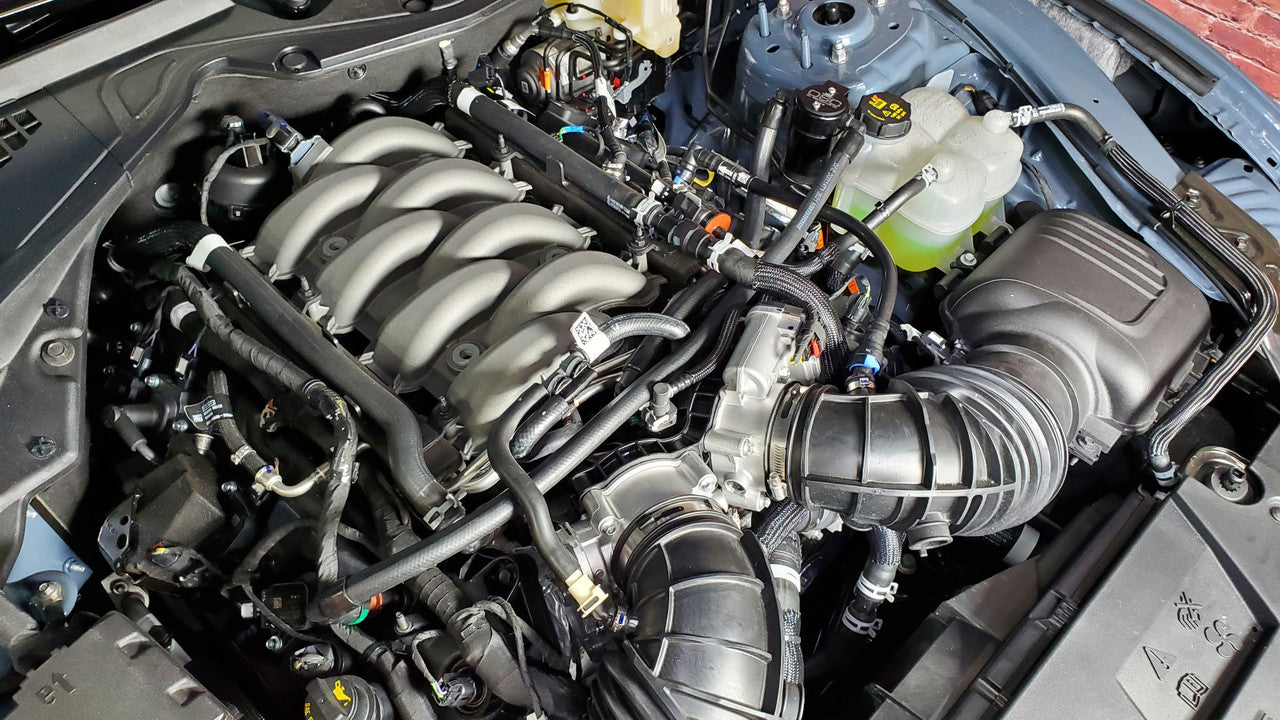

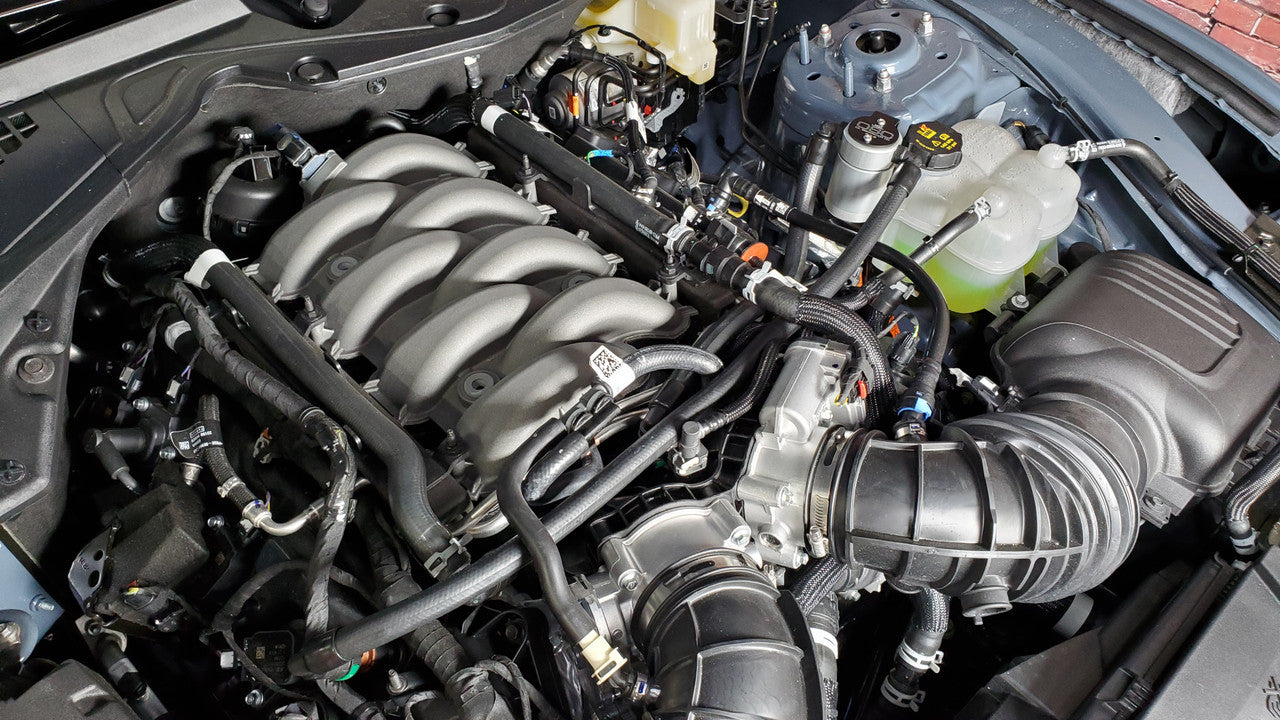

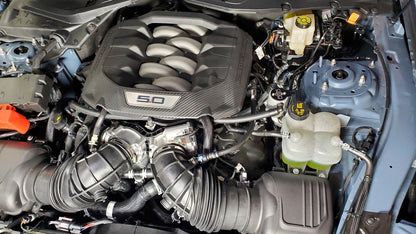

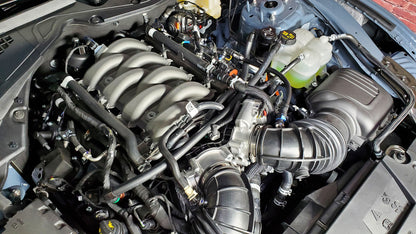

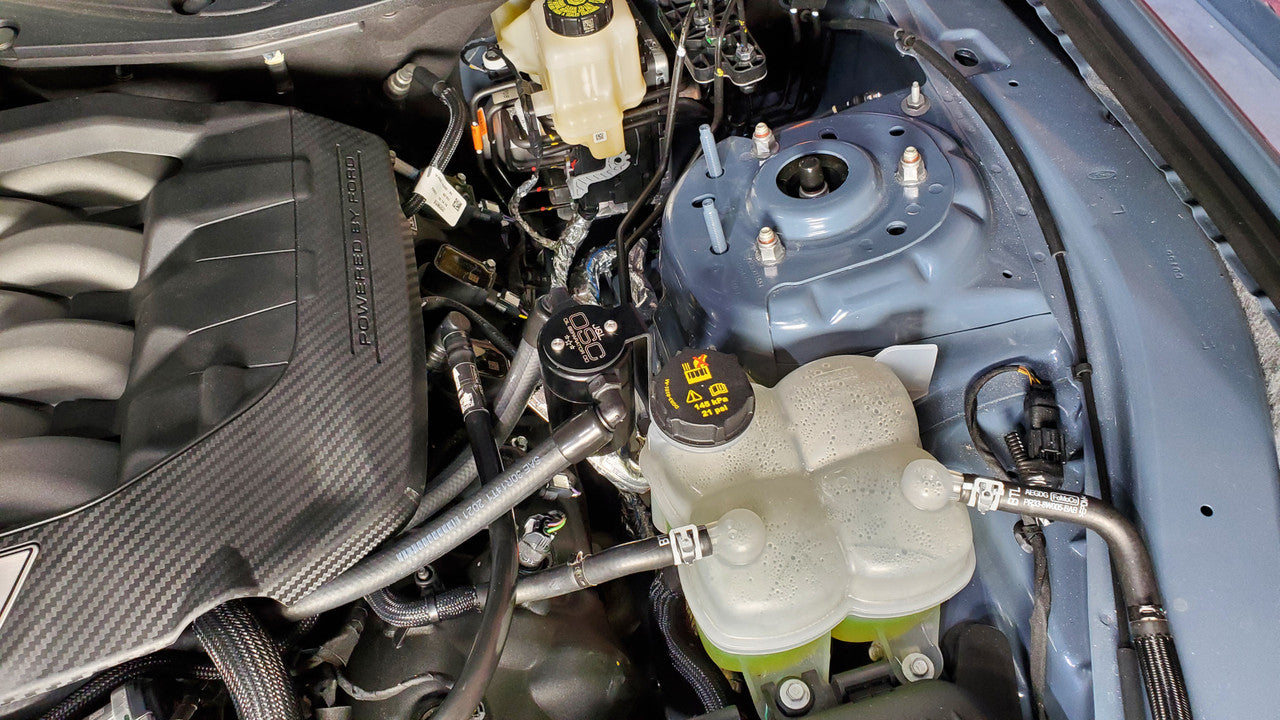

Direct-Fit PCV Oil Separator for the 2024–2026 Mustang GT

The J&L Oil Separator 3.0 is a direct-fit 2024–2026 Mustang GT 5.0 catch can PCV oil separator designed to capture oil vapor and other blow-by contaminants before they travel back into the engine’s intake path. Its fine-mesh stainless steel filtration system turns suspended oil vapor into liquid, which collects inside the removable reservoir for convenient inspection and disposal.

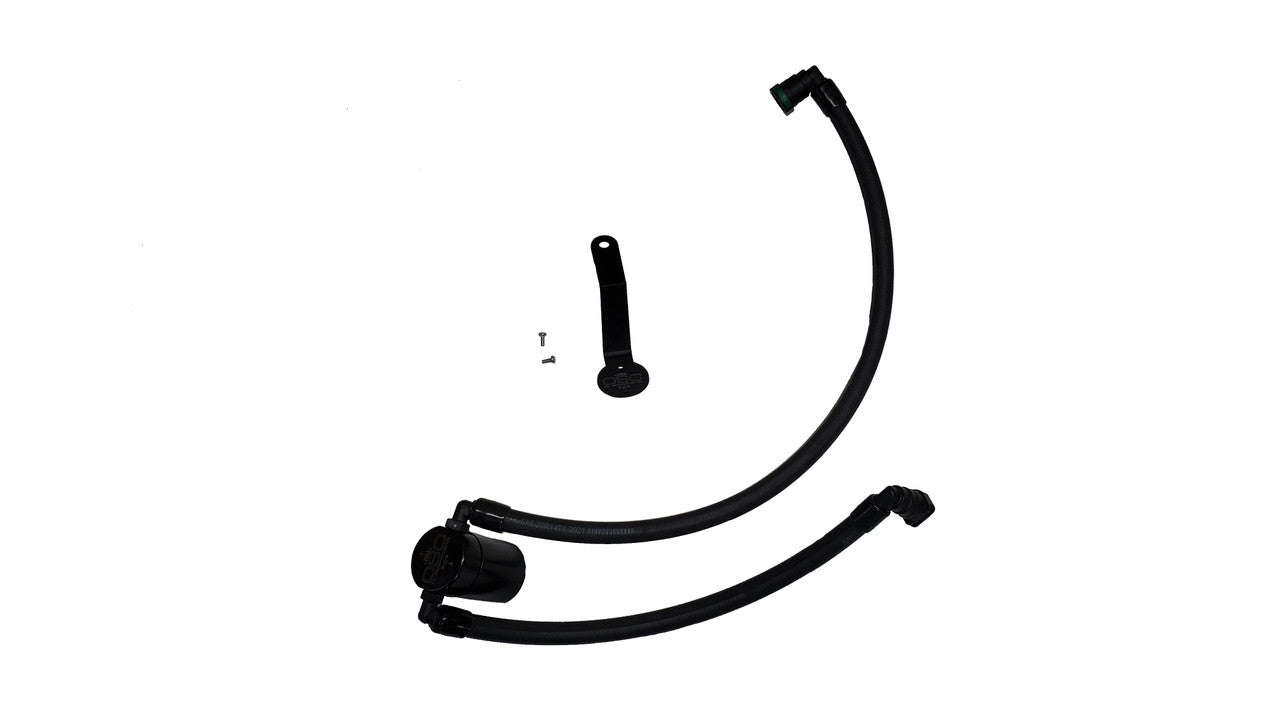

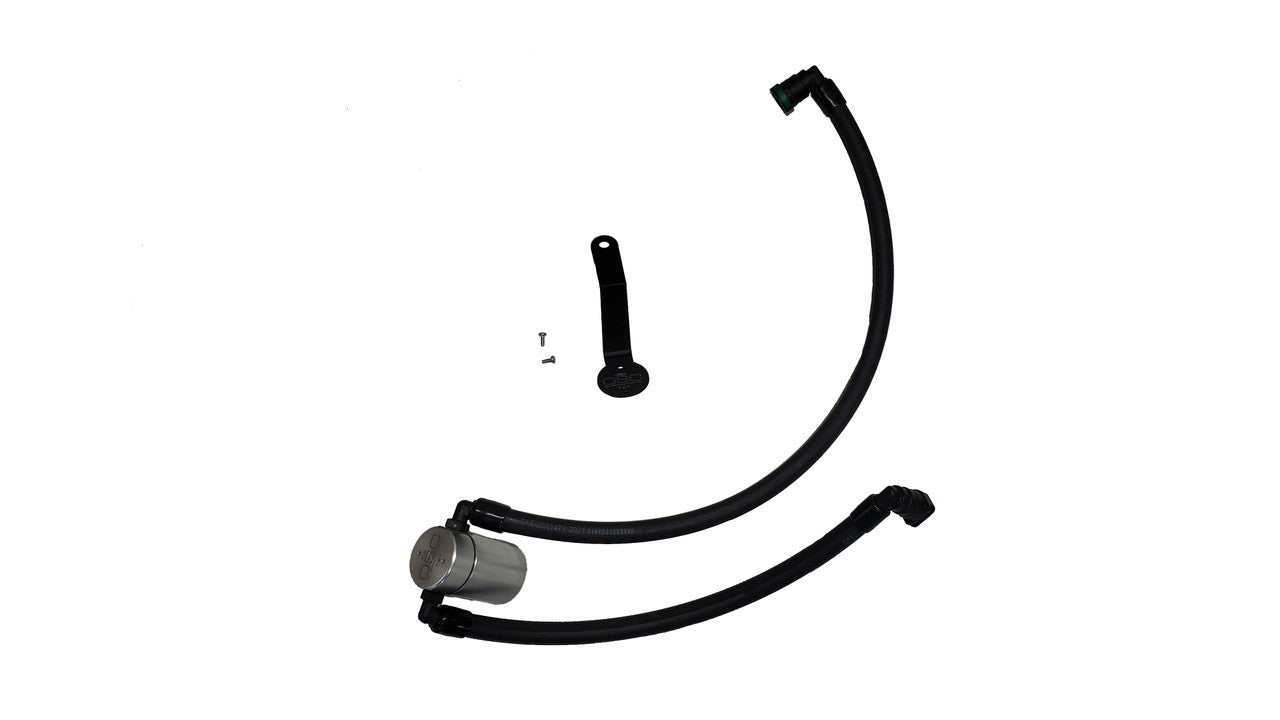

Made from solid 6061 billet aluminum, the J&L separator uses OEM-style quick-connect fittings for a clean, plug-and-play installation. No cutting, fabrication, or engine tuning is required. The vehicle-specific hoses and mounting hardware help the installed unit maintain an integrated, factory-style appearance under the hood.

This PCV-side unit fits the naturally aspirated 5.0L engine in the 2024–2026 Ford Mustang GT and Mustang Dark Horse. It is not designed for vehicles equipped with a Whipple, Ford Racing, or VMP supercharger, which require a different J&L application. The separator is made in the USA and protected by J&L’s limited lifetime warranty.

Frequently Asked Questions

Does this oil separator fit the 2024–2026 Mustang GT 5.0 with the Performance Package?

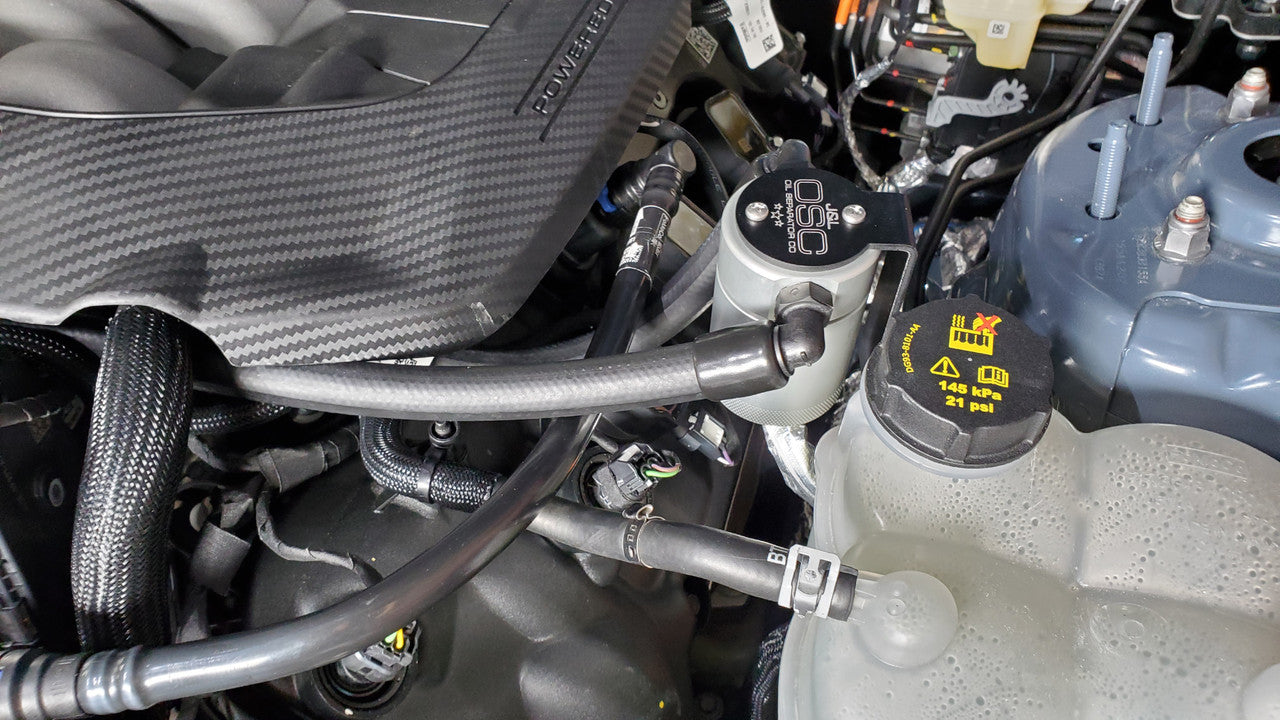

Yes. The J&L Oil Separator 3.0 fits the 2024–2026 Mustang GT 5.0L with the Performance Package. However, the separator’s position near the strut-tower brace may make access to the engine oil dipstick more difficult. This affects accessibility rather than the product’s listed vehicle fitment.

Is this the PCV side, dirty side, or clean side oil separator?

This J&L unit installs on the PCV side, commonly called the dirty side, of the Mustang GT’s crankcase ventilation system. This is the side where more oil-laden vapor typically travels toward the intake, making it the primary location for capturing blow-by before it can accumulate downstream.

What is the oil capacity before I need to empty this unit on a Mustang GT?

The J&L 3.0 Oil Separator holds 3 ounces of collected fluid. Check it after the first 500 to 1,000 miles to establish your Mustang’s collection rate. Many street-driven applications can travel approximately 2,500 to 3,500 miles between services, although climate, driving style, and engine condition affect the interval.

Is the Can Extension compatible with this Mustang GT oil separator?

No. The J&L Can Extension is not compatible with this particular 2024–2026 Mustang GT PCV-side oil separator. The product’s vehicle-specific mounting position does not provide the necessary clearance for the extension. Owners should use the standard 3-ounce reservoir and inspect it regularly to determine an appropriate emptying schedule.
