Whiteline

Whiteline - Front & Rear Sway Bar Kit - 2015-2020 Audi RS3 & VW Golf Mk7 R

Whiteline - Front & Rear Sway Bar Kit - 2015-2020 Audi RS3 & VW Golf Mk7 R

SKU: BWK019
Regular price $932.88
Regular price $932.88 Sale price $932.88
Sale Sold out
Shipping calculated at checkout.
Quantity

Engineered to "Activate More Grip", BWK019 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 26mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.

Specifications

Location Sway Bar Diameter (mm) Diameter (in) Fraction Diameter (in) Decimal Material Sway Bar Adjustment Type Sway Bar Link Included
Front BWF22Z 26 1 1/32" 1.023 Solid Spring Steel 2 Point Adjustable Yes
Rear BWR25XZ 24 61/64" 0.944 Solid Spring Steel 2 Point Adjustable Yes

Front Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting ~% Stiffer Than OE
Soft - Comfort / low grip 25.5 mm - +25%
Hard - Maximum roll control 26.5 mm +15% +50%

Rear Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting ~% Stiffer Than OE
Soft - Comfort / low grip 23.5 mm - -10%
Hard - Maximum roll control 24.5 mm +20% +10%

Product Information

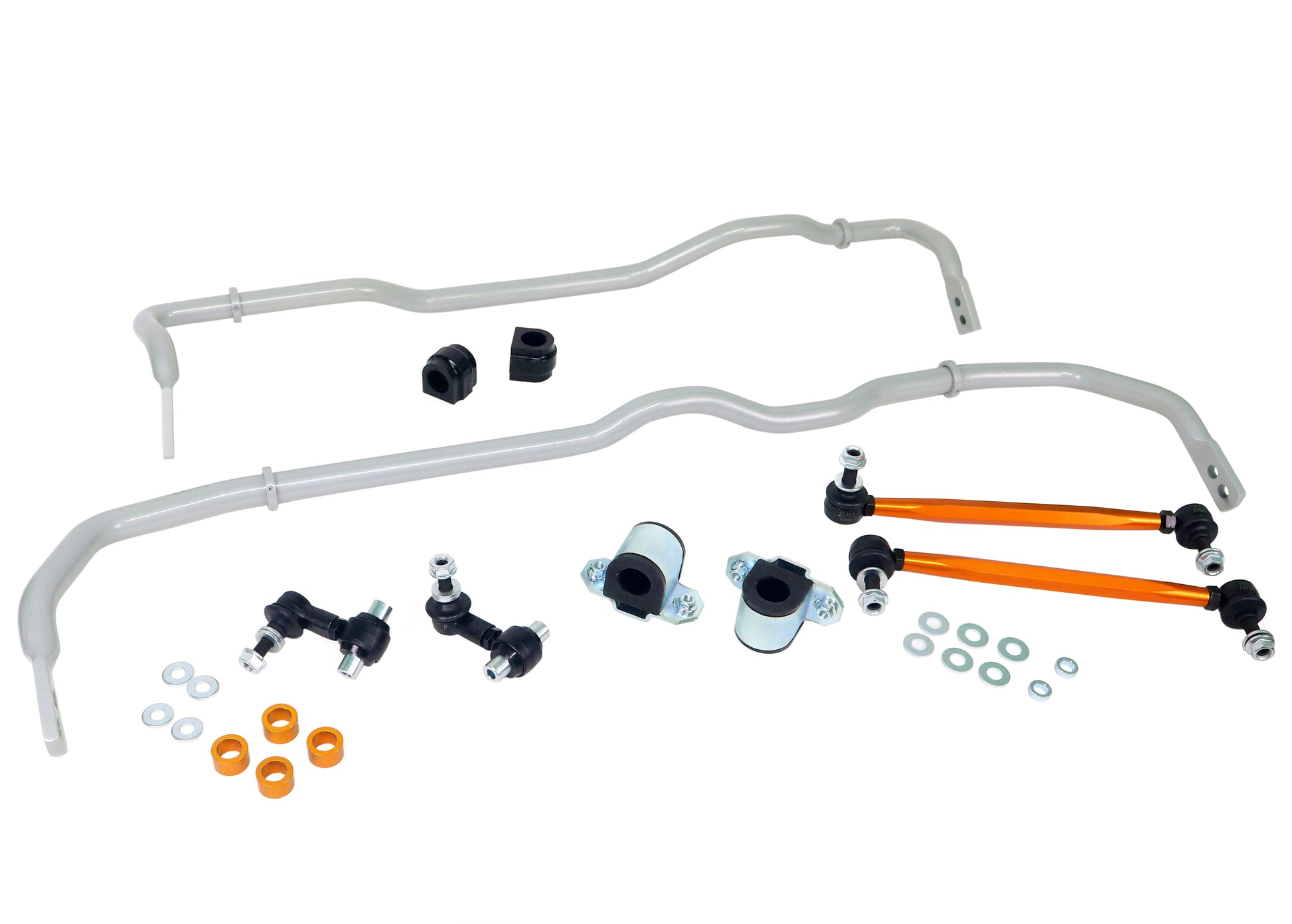

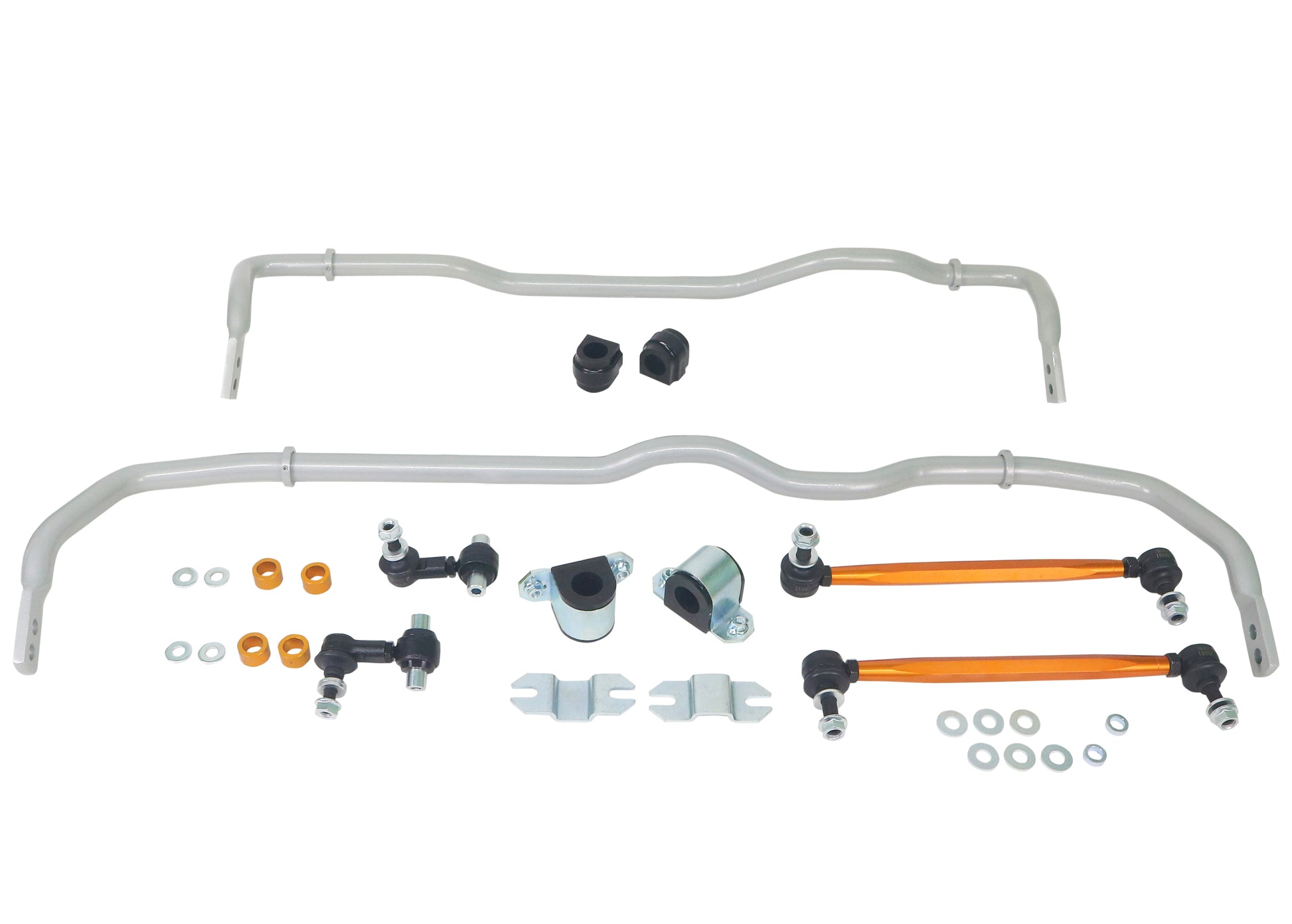

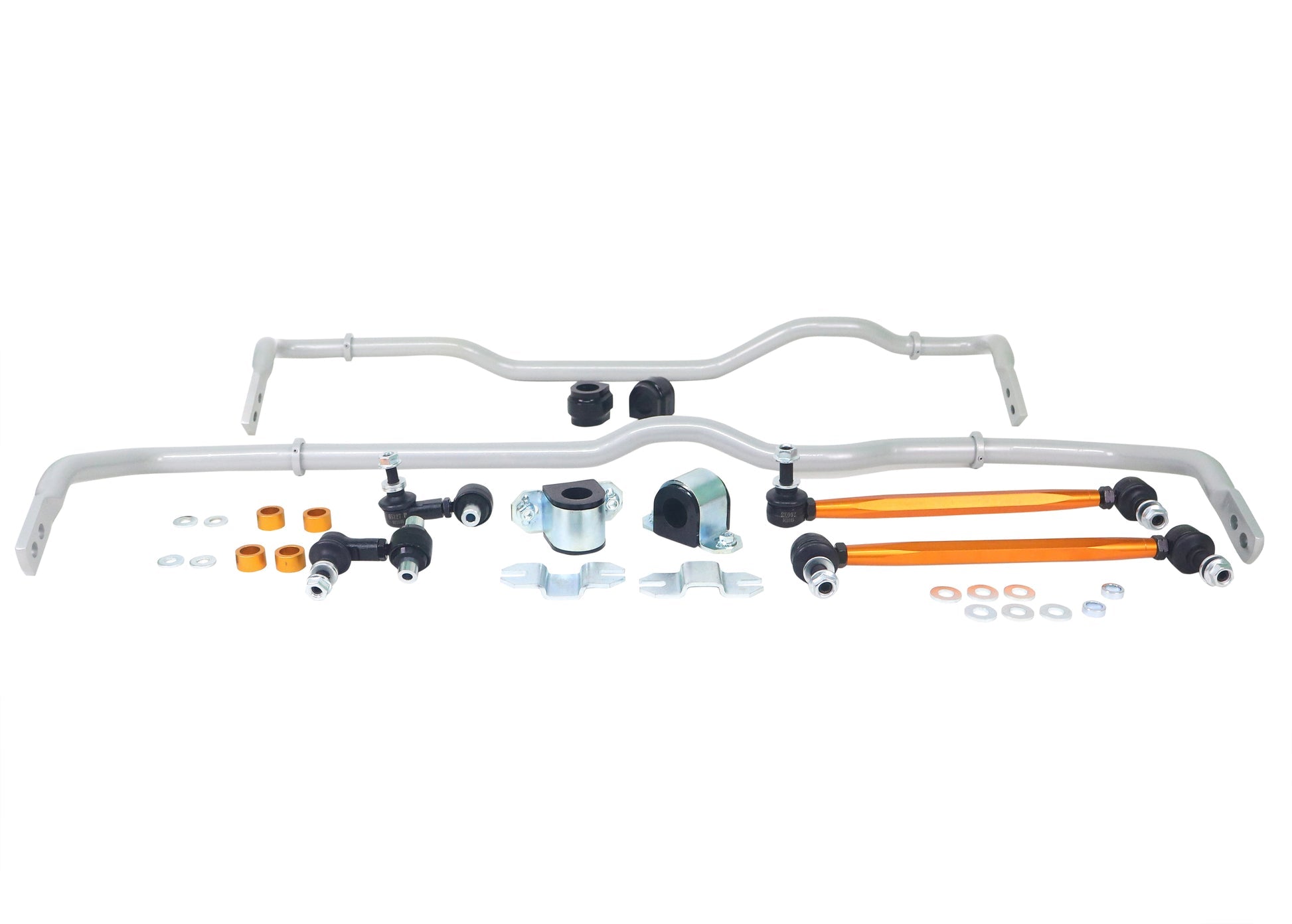

  • Components Per: 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 4 Lateral Locks, 2 Plates, 4 Spacers, 4 Bolts, 10 Washe
  • Kits Required: 1
  • Kit Contents: 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 4 Lateral Locks, 2 Plates, 4 Spacers, 4 Bolts, 10 Washers, 4 Nuts

Installation

  • Installation Time: 4 Hours
  • Installation Difficulty: Tricky installation may take longer then you think if you are not experienced.
  • Wheel Alignment Required: Yes No
