Whiteline

Whiteline - Front and Rear Coil Spring / Sway Bar Kit - 2005-2014 Ford Mustang

Whiteline - Front and Rear Coil Spring / Sway Bar Kit - 2005-2014 Ford Mustang

SKU: GS1-FRD005
Regular price $998.88
Regular price $998.88 Sale price $998.88
Sale Sold out
Shipping calculated at checkout.
Quantity

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) sway bars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance while maintaining safety and ride quality characteristics. This kit contains 3.4kg/mm (190lb/in) front rated springs that provide a 35mm drop while the 4.8kg/mm (269lb/in) rated rears deliver a desirable 45mm to the vehicle. Boasting a 33mm 4 point adjustable front sway bar and 27mm 4 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

Specifications

Sway Bar Kit Location Sway Bar Diameter (mm) Diameter (in) Fraction Diameter (in) Decimal Material Sway Bar Adjustment Type Sway Bar Link Included
BFK005 Front BFF55Z 33 1 19/64" 1.299 Solid Spring Steel 4 Point Adjustable Yes
BFK005 Rear BFR65Z 27 1 1/16" 1.062 Solid Spring Steel 4 Point Adjustable Yes

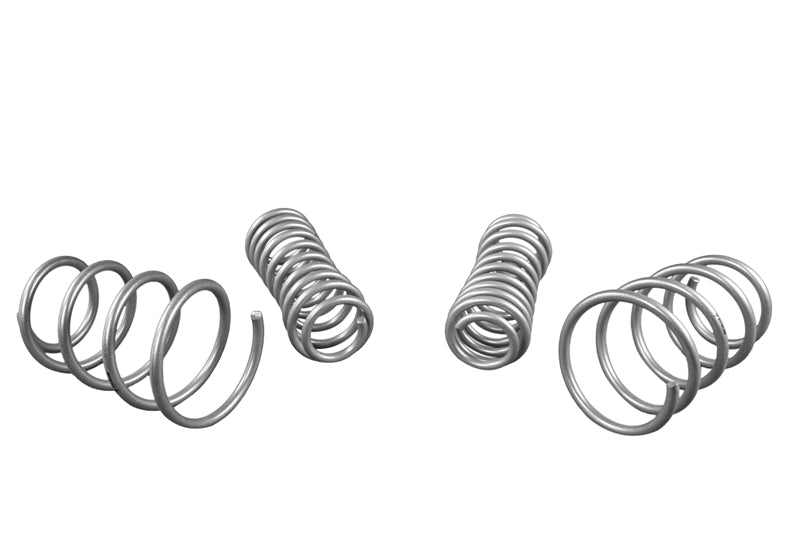

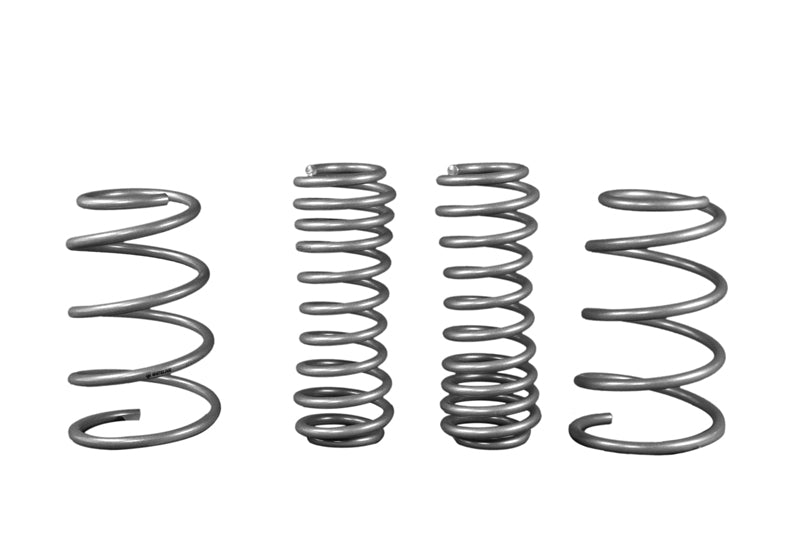

Location Lowering (mm) Lowering (in) Spring Rate
Front 35 1.378 3.4kg/mm (190lb/in)
Rear 45 1.772 4.8kg/mm (269lb/in)

Product Information

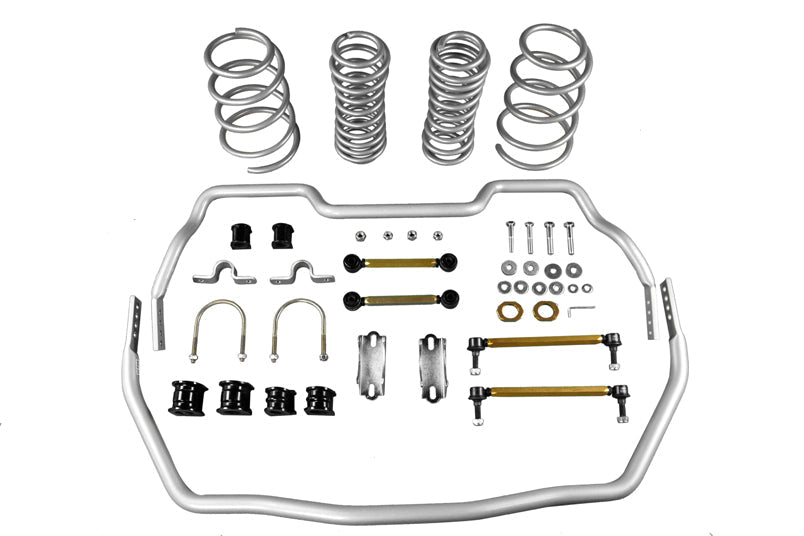

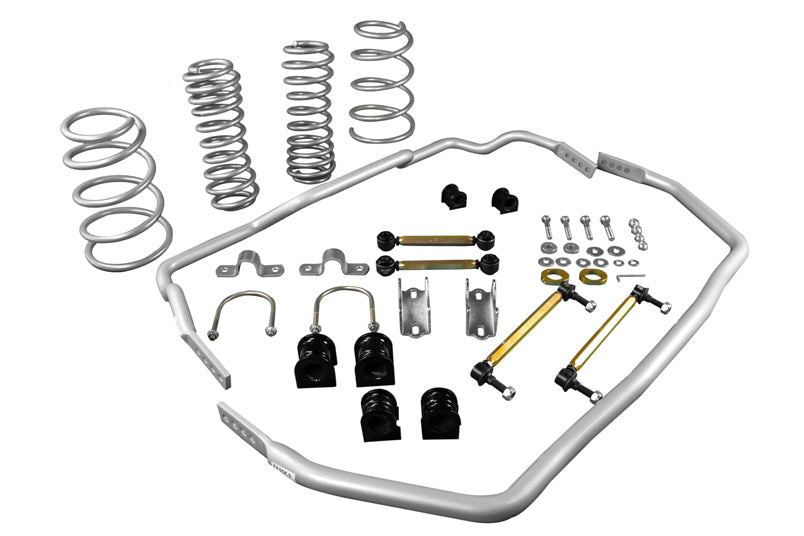

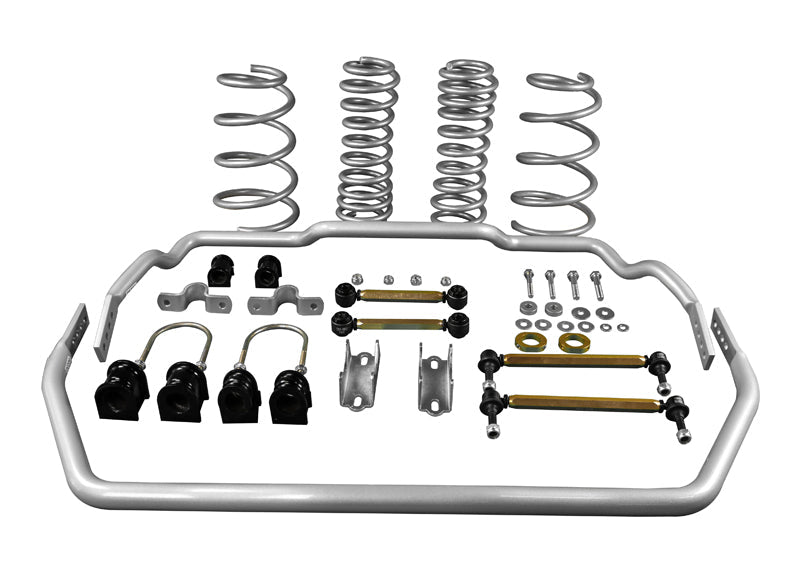

  • Components Per: 4 Springs, 2 Sway Bars, 4 Links, 6 Bushings, 2 Saddles, 2 Mounts, 2 Lateral Locks, 2 U-Bolts, 4 Bolt
  • Kits Required: 1
  • Kit Contents: 4 Springs, 2 Sway Bars, 4 Links, 6 Bushings, 2 Saddles, 2 Lateral Locks, 2 Mounts, 2 Spacers, 2 U-Bolts, 4 Bolts, 12 Washers, 8 Nuts
  • Sub brand: Performance
  • Product Note: Reduces body roll and lowers your centre of gravity for sharper grip and stability through corners; a complete, premium upgrade. Includes: 33mm Front and 27mm Rear 4 point adjustable Sway Bars, Links, and Front and Rear Coil Springs.

Installation

  • Installation Time: 8 Hours
  • Installation Difficulty: Suspension Specialist recommended.
  • Wheel Alignment Required: Yes
  • Recommend Wheel Alignment: Front and Rear Wheel Alignment
