*****MUST BE INSTALLED, THIS IS NOT FOR SALE AS AN INTERNET TUNE. PLEASE EMAIL TO SCEDULE AN APPOINTMENT*******
***PLEASE EMAIL YOUR MODIFICATION LIST INLUDE WHICH MODES YOU WOULD LIKE WHICH TUNES ASSOCIATED. PLEASE INCLUDE YOUR ORDER NUMBER****
***ALL TUNES REQUIRE THE USE OF THE TDN FOR TUNE DELIVERY/WRITING. THE LAPTOP METHOD IS NOT AVAILABLE FOR TUNE WRITING! DATA LOGGING IS STILL AVAILABLE VIA LAPTOP OR TDN***
Click Here to view our tuning guide and submit your data!
If you already have a custom tune for your vehicle and want to purchase and additional tune please click here!
ZFG RACING DMS (DRIVE MODE SPECIFIC) CUSTOM TUNING
ZFG Racing is excited to announce our new line of drive mode specific custom tuning for the Explorer and Aviator 3.0L engine platforms. This has been a goal for us for a long time and it has finally been made possible by our friends at HP tuners!
What is drive mode specific tuning?
Your vehicle comes with multiple drive modes that from the factory, and those drive modes modify shift points, shift firmness and pedal sensitivity but ultimately, the ecu did not have the ability to change things like the power levels, air fuel ratios and ignition timing by drive mode. That problem has been solved by our friends at HP Tuners and we can now offer a tune that addresses all of your tuning goals at once! No longer will you have to have a separate tune for different power levels/goals they will be all in one including a fully functional tow tune!
How will this work?
With a DMS tune you will be able to choose a specific tune goal for each drive mode! The goals will drive everything from power levels, pedal sensitivity, transmission characteristics and more. The tune goals will be Stock plus, Tow, Daily Driver, Performance and Race!
Will drive mods be fuel specific?
No, not at this time. It does not make sense to have tune where only one or 2 drive modes require a higher-octane fuel than the rest. At this time we will not be offering multiple specific fuel types within a tune. We will still be offering our Auto Octane tunes, 91, 93 and e50.
What power profiles will be available?
There will be 5 profiles available, and each profile will be able to be assigned to a drive mode. The 5 profiles are! Note: your drive mode will still maintain it’s pedal characteristics and shift points. Power level and transmission shift firmness will be adjusted based on the tune selection. Power profiles will be specified when you submit your stock file.
- Stock+
- Tow
- Daily Driver
- Performance
- Race

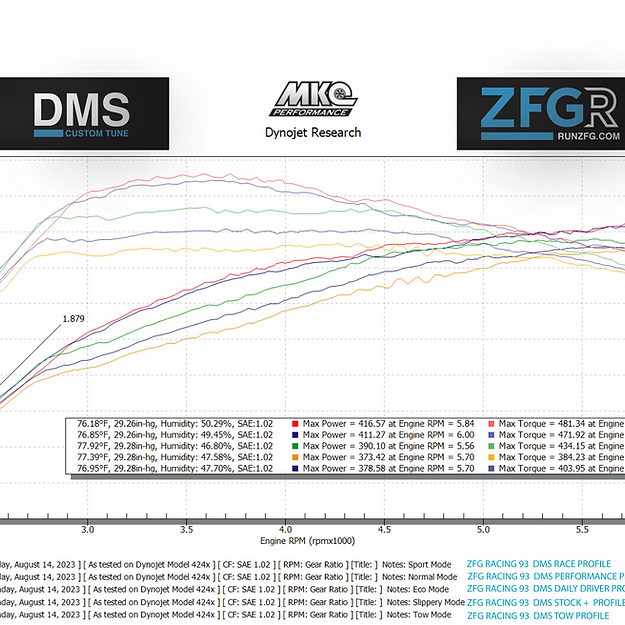

What power levels does each drive mode goal and fuel combinations make?
Similar to our standard offering, the tuning affects the maximum power output as well as driving characteristic. Maximum power in stock plus, daily driver and tow will be limited to specific curves where power in for a performance and race tune will be limited by other factors allowing the maximum power to be achieved based on your modifications!
Peak Gains (achieved when selecting a Performance or Race profile)
- Auto Octane- an adaptive tune that adjust the to octane level of the fuel being used. Typical gains of up to 50 hp and 50 ft-lbs of torque when using 93 octane with this tune!
- 91 and 93 Octane- Tunes specific to the rated octane level being used, while still maintaining the ability to turn down the power level if a lower octane level is use on accident. Typical gains of up to 75 hp and 75 ft-lbs!
- E50 supports additional ethanol content of 50%. Typical gains of up to 100 hp and 100ft-lbs!
How to order you custom tune
- Already have a compatible device? No problem simply select “ DMS tune only, I already have a compatible device”.

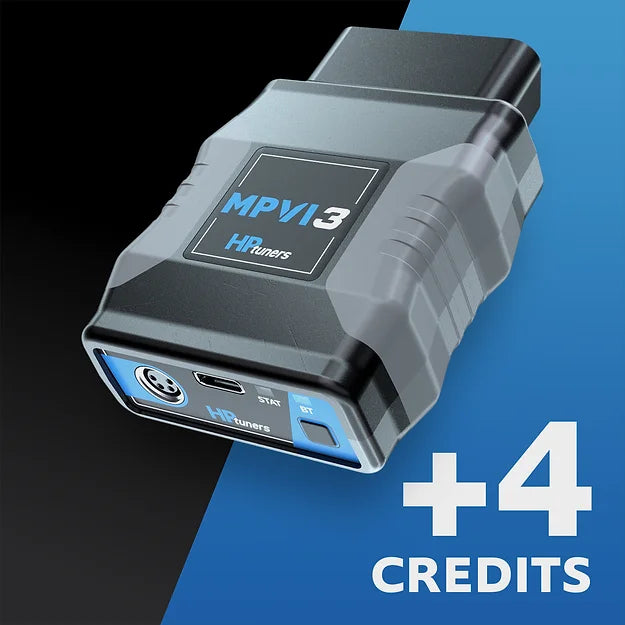

- If you do not have an HP Tuner MPVI or RTD device yet you will need one, and you can choose you device from the drop-down menu. Each tuning package will come with the correct number of credits for the year and model specified in the package.
-
Select your fuel.
- Auto octane can support fuels from 87 octane to 93 and up to 30% ethanol.
- Selecting 91 or 93 octane means you will always need run at least that much octane. For example, if you select 91 octane, you must run 91 or 93 octane. It is recommended that you never run ethanol free fuel, as even if the fuel is 93 octane E0 it has a negative impact on the performance of the vehicle. All our pump gas tunes can support up to 30% ethanol and adding ethanol up to 30% will increase the performance of our tunes
- E50 tunes can support an ethanol range from 40-60% however it is recommended you try to be as close to 50% as possible.
Drive mode power profiles well be specific when you submit your stock file!
Our tuning is compatible with the HP Tuners based RTD and MPVI only! No other devices are supported, and we have no plans to increase the device offerings at this time. This includes the nGauge and all SCT products.
Custom tuning files and services are non-refundable and non-transferable! You may not use your custom tuning file on any other vehicle or transfer our service, used or unused to any other customer.
